8x8 HDMI Matrix Switch
Installation and Setup Guide
Supported model
• C4-8ZVMS-B 8×8 HDMI® Matrix Switch
Introduction
The Control4® 8x8 HDMI Matrix Switch enables up to eight HDMI
inputs to be distributed to eight zones, with Ethernet pass-
through and IR and RS-232 control.
• Enables up to eight AV sources for multi-room AV distribution
via full-matrix switching.
• System control is enabled through Ethernet, giving installation
flexibility for new or retrofit installations.
• Easily installed with Control4 Simple Device Discovery
Protocol (SDDP).
• 2U rack-mount ears conform to EIA 19" rack standards.
Box contents
• 8×8 HDMI Matrix Switch (C4-8ZVMS-B)
• Power cord and external power supply
• Warranty card
• Two rack-mount ears
• Four 8-32 x 3/8" Phillips screws
• Four feet (pre-attached), which can be removed for device
rack mounting.
Available accessories
• HDBaseT Receiver (C4-HDBTEB-B)
Specifications
8×8 HDMI Matrix Switch
Model number
Voltage
Current
Power consumption
Network connectivity
Full matrix switching
Rack-mount
Source inputs
HDMI
HDBaseT Ethernet inputs
1
C4-8ZVMS-B
12VDC
8.5A
60W, 204.8 BTU/hr max
10/100 BaseT Ethernet
Yes
Yes, 2U rack-mount ears included
8
8
Zone outputs
HDBaseT outputs
HDMI outputs (exclusive-or of
HDBT 7/8)
Stereo audio output (3.5 mm
stereo jack)
Control
RS-232 serial ports
IR ports
Environmental
Operational temperature
Humidity
Storage
Miscellaneous
Dimensions
Weight
Shipping weight
HDBaseT Receiver
Model number
Voltage
Current
Dimensions
Weight
Shipping weight

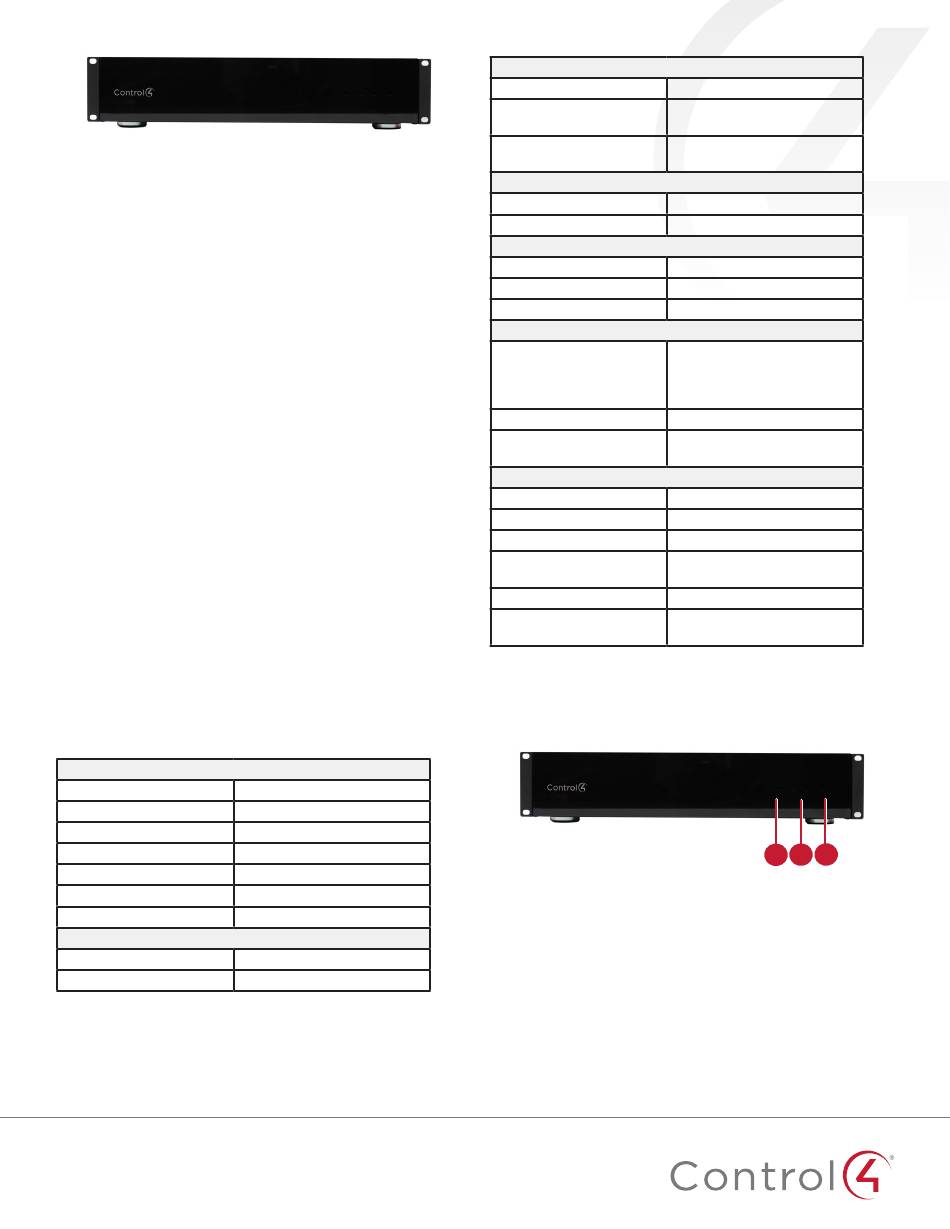

Front and rear panel description
Front panel
LED indicators
A
Status—One blink indicates unable to obtain IP address from DHCP
server. Off indicates normal operation.
B
Link—Solid indicates a connection to Director.
C
Power—Flashes while booting. Solid blue when powered on.
8
2
8
8
8 (IR frequency: 38 kHz)
32˚F ~ 104˚F (0˚C ~ 40˚C)
5% to 95% non-condensing
-4˚F ~ 158˚F (-20˚C ~ 70˚C)
17.32" × 10.1" × 3.9"
(440 × 257 × 100 mm) (w/feet)
17.32" × 10.1" × 3.6"
(440 × 257 × 91 mm) (no feet)
8.64 lbs (3.92 kg) (unit only)
12.48 lbs (5.66 kg)
(box, power supply, & cord)
C4-HDBTEB-B
12VDC
1.5A
4.0" × 4.8" × 0.9"
(102 × 123 × 23 mm) (w/mount)
1.3 lbs (0.6 kg) (unit only)
3.0 lbs (1.35 kg) (box & power
supply)
A B C
