EarthQuaker Devices White Light Operation Manual

www.earthquakerdevices.com
©2023 EarthQuaker Devices LLC EQDWHITV2USA-R0
What's up? You like distortion? If so, you are gonna love the White Light
The White Light is a hard clipping vintage voiced dirt pedal that takes its cues from
the vintage dirt pedals that defined the sounds of heavy rock. Think OD250 or
Distortion+ without being overly derivative, a new voice to an olde sound if you will.
The White Light gives you total control over the feel and voice of the dirt along with
a modern presence that is highly responsive to your playing. We think you'll find that
it is much more dynamic, open and harmonically rich than these classic overdrives
it shares its lineage with.
The Weight control allows you to adjust the saturation and low end, giving you
plenty of tonal shaping options. The Gain control goes from clean to a nice crunchy
overdrive tone and there is plenty of output volume on tap to flame broil the input
of any amplifier. The Compression switch lets you fine tune the character of the
distortion; choose between an open voiced overdrive with more high-mids and bite,
or more compression with less bite and a flatter mid response.
The White Light is all analog, true bypass and handmade one at a time by some
ghouls and a robot in the cement bunker of Akron, Ohio.

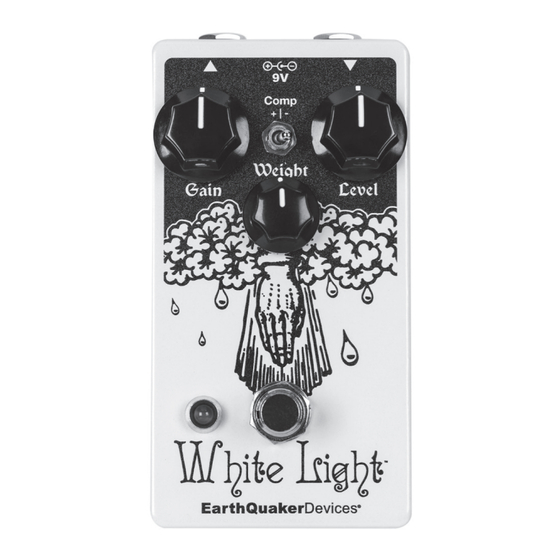

Controls
Gain: Controls the amount of distortion.
Weight: A multi-functional control, allows the level of saturation, low end response
and the overall feel of the device to be altered.
Level: Controls the output.
Compression Switch:
• Minus (-): open with more high-mids and bite.
• Plus (+): crunchy and compressed with a bit less bite and a flatter mid response.
<<< English >>>
™ Overdrive! Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center
barrel. We always recommend pedal-specific, transformer-isolated wall-wart
power supplies or multiple isolated-output supplies. Pedals will make extra noise if
there is ripple or unclean power. Switching-type power supplies, daisy chains and
non-pedal specific power supplies do not filter dirty power as well and let through
unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
Current Draw: 10 mA
Input Impedance: 500 kΩ
Output Impedance: <10 kΩ
Flexi-Switch Technology
®
This device features Flexi-Switch Technology! This relay-based, true bypass
switching style allows you to simultaneously use momentary and latching-style
switching.
• For standard latching operation, tap the footswitch once to activate the effect
and then tap again to bypass.
• For momentary operation, hold the footswitch down for as long as you'd like
to use the effect. Once you release the switch, the effect will be bypassed.
Since the switching is relay-based, it requires power to pass signal.
Warranty
This device has a limited lifetime warranty. If it breaks, we will fix it. Should you
encounter any issues, please visit www.earthquakerdevices.com/warranty.
