Summary of Contents for Waves SoundStudio STG-2412

  • Page 2: Table Of Contents

    What’s in the box? ..........................4 Using STG-2412 for Mixing, Processing, and Recording ............. 5 STG Software ........................7 System Inventory Tab ..........................8 SoundStudio STG-2412 Control Panel ....................11 Connections ........................14 Front Panel ............................14 Rear Panel ............................15 Specifications ........................
  • Page 3: Warning: Electrical Hazard

    Warning: Electrical Hazard To ensure your safety, please read this manual thoroughly before using the unit. Kindly observe all of these safety rules. 1. Keep this user guide for future reference. 8. Protect the power cord from being walked on or otherwise 2.
  • Page 4: Product Overview

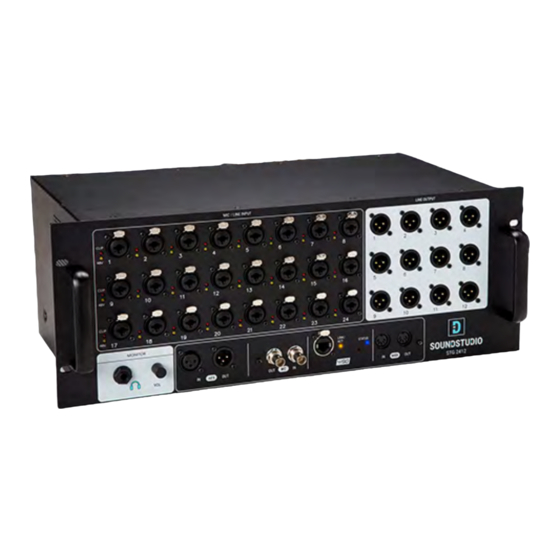

    Product Overview SoundStudio STG-2412 is a rugged stage box with 24 analog inputs and 12 line outputs. It’s designed for both stage and studio applications. All connections on this 4U rack-mountable device are on the front panel, except the mains connection and power switch, which are on the rear panel.
  • Page 5: Using Stg-2412 For Mixing, Processing, And Recording

    Using STG-2412 for Mixing, Processing, and Recording STG-2412 uses Waves SoundGrid protocol to connect to an eMotion LV1 mixer, to a MultiRack processor, and to any DAW. A typical SoundGrid network consists of a host computer, a SoundGrid server, and I/O devices, all connected with Cat 5e (or better) Ethernet cables via a 1GB Ethernet switch.
  • Page 6 A SoundGrid network is fully scalable. Connect multiple STG units within a SoundGrid network for a high channel count. In this example, there are three STG-2412 I/O devices onstage. These are used for onstage microphones and monitoring. In the FOH are two SoundGrid servers (one primary and one redundant) and one I/O. This configuration includes an external control surface and a DAW, which can be used with the eMotion LV1 mixer or the MultiRack processing rack.
  • Page 7: Stg Software

    • Select “Install Products” and choose “Online.” This will open a list of products on your Waves Cloud. • Select “All Waves Products” at the top of the page and then scroll or search for the SoundStudio STG Driver. • Select the driver and click the “Install” button.
  • Page 8: System Inventory Tab

    System Inventory Tab STG devices must be assigned to a host application. This is done within the application. Assignment is similar, but not identical, in all SoundGrid host applications. Refer to the application’s user guide for detailed instructions. In this example, an STG-2412 will be assigned to SoundGrid Studio. Open the SoundGrid Studio application.
  • Page 9 Assign STG-2412 to the Host Application I/O devices are assigned in the Device Racks of the System Inventory tab. You can assign the STG-2412 to any Device Slot. SoundStudio STG-2412 / User Guide...
  • Page 10 Access SoundStudio Control Panel Use the STG-2412 Control Panel to adjust preamps and channel outputs, and to manage device clocking. Firmware version, serial number and other hardware information are also displayed in the control panel. Click the GEAR button to open the Click the GEAR button to open the STG-2412 control panel.
  • Page 11: Soundstudio Stg-2412 Control Panel

    SoundStudio STG-2412 Control Panel There are five tabs in the control panel. We’ll focus on three of them: Clock, Input, and Output. Clock Tab Use the Clock tab to manage the clock relationship between the STG-2412 and the SoundGrid network. In this example the device is locked to the network via Sync Over Ethernet (SOE.
  • Page 12 Input Tab The Input tab is used to configure the mic/line inputs. STG-2412 has 26 inputs: 24 analog and 2 digital. Use the Input tab to control Input I/O parameters. Channel input controls set here are mirrored in the Mixer and Channel windows of the eMotion LV1. Inputs can be patched in the LV1. Click this button and a light 48v ON/OFF will blink on the STG-2412 device.
  • Page 13 Output Tab The Output tab is used primarily to set the output headroom pre-channel. There are 12 analog outputs and 2 digital outputs. HEADROOM SELECT Choose between +18dB and AES OUTPUT METER +24 dB mixer headroom CHANNEL OUTPUT METER MONITOR METER SoundStudio STG-2412 / User Guide...
  • Page 14: Connections

    Connections Front Panel SoundStudio STG-2412 / User Guide...
  • Page 15: Rear Panel

    Rear Panel INPUT: AC 100-240V 50-60Hz 0.3A SoundStudio STG-2412 / User Guide...
  • Page 16: Specifications

    Specifications XLR Input Input Gain: Adjustable from 0 dB to 60 dB in steps of 1dB Frequency Response: +0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain) +0/-0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain) Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0 EIN (Gain 60, 150 ohms) -128 dBu A weighted THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023%...
  • Page 17 Phase Response: +/- 10 Deg 20 Hz to 20 kHz Input impedance: 10k ohms XLR Balanced Outputs Selectable maximum output level: +18 dBu or + 24 dBu Frequency Response: +0/-0.2 dB 16 Hz to 22 kHz @ 48 kHz sample rate` +0/-0.2 dB 17 Hz to 40 kHz @ 96 kHz sample rate THD+N (Measured at 1 kHz, Gain = 0) 0.001% Output impedance: 40 ohms...
  • Page 18 Dimensions 19 x 7 x 10 inches (482 x 177 x 254 mm) Weight 19.6 lb (8.9 kg) Specifications subject to change without notice SoundStudio STG-2412 / User Guide...
