Polywood CLC71 Quick Start Manual

Model: CLC71 & CMC71

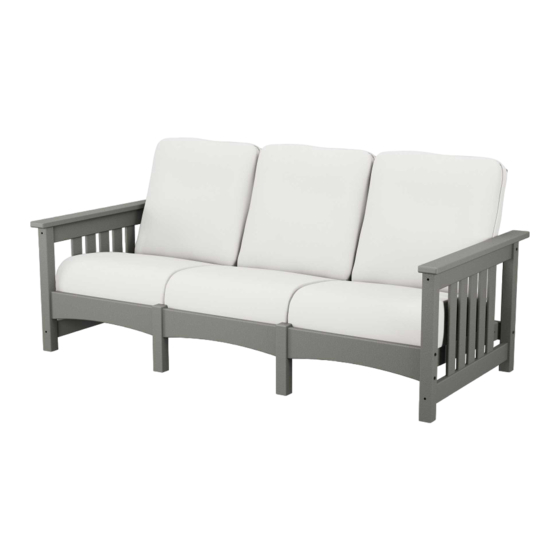

*CLC71 shown
__(3) Seat assembly
__(3) Back assembly
__(3) Seat support
__(3) Top rails
Right, Center, Left
__(2) Sideframes
__(2) Front mid leg
__(2) Rear mid leg
__(3) Seat cushion
__(3) Back cushion
__(1) Hardware pack
TOOLS NEEDED
4MM T-HANDLE HEX KEY
(INCLUDED)
-Phillips head screwdriver
Qty. Description
A - 3" Chair screw
20
B - capnut
6
C -1 1/2" chair bolt
2
D -3 1/4" chair bolt
4

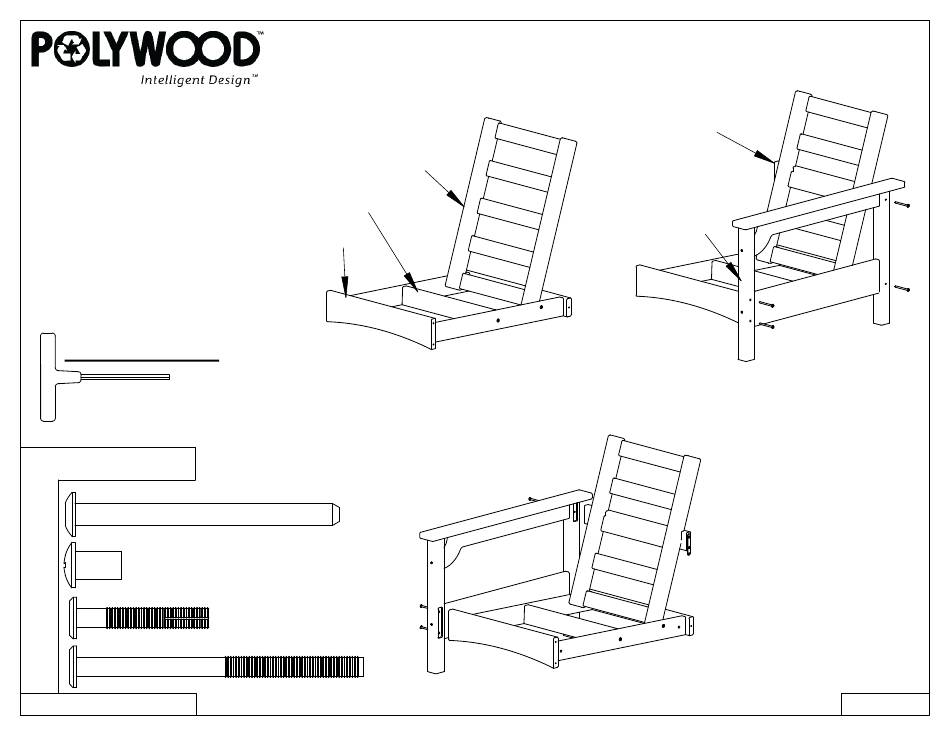

ASSEMBLY INSTRUCTIONS
Step 1
- Attach seat support to seat assembly
using (2) 3" chair screws
- Attach back assembly to seat assembly
using (2) 3" chair screws
-Repeat until all seats and backs
are assembled.
Back assembly
Seat support
Seat assembly
Step 3
Lay another seat assembly on its side.
Attach right sideframe to seat assemby and
right top rail using (4) 3" chair screws
HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED
Step 2
Lay a seat assembly on its side.
Attach left sideframe to seat assemby and
left top rail using (4) 3" chair screws
Left top rail
Left sideframe
See page 2
9/14/2012
