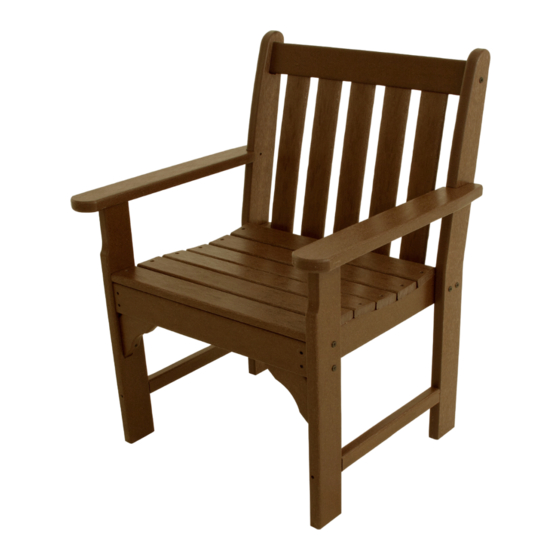

MODEL : GNB24
Parts
__(1) Seat
__(1) Back
__(2) Sideframes
__(2) Angle braces
__(1) Hardware pack
- 4MM T-HANDLE HEX KEY
(INCLUDED)
- PHILLIPS SCREW DRIVER
Qty.
A - 1/4-20 X 1-3/4 WAFER SHCS
8
B - 1/4-20 X 2-1/2 WAFER SHCS
2
C - 8 X 2 PHIL FLAT SCREW
4
ASSEMBLY INSTRUCTIONS
Step 1
Attach sideframes to seat
using (6) 1-3/4" chair bolts
A
A
Step 3
Attach angle brace to front leg, then seat,
using (4) 8x2" screws
C
ALL HARDWARE IS COATED STAINLESS STEEL
Step 2
- Attach back to seat
using (2) 1-3/4" chair bolts
- Attach back to sideframes
using (2) 2½" chair bolts
A
B
A
B
