Polywood CLC47 Quick Start Manual

Model: CLC47 & CMC47

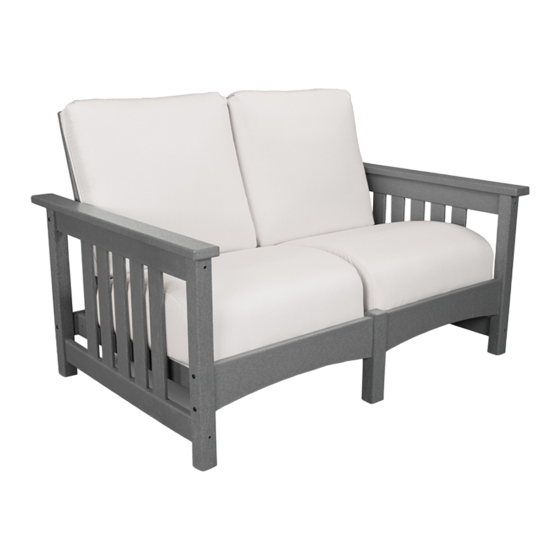

*CLC47 shown
__(2) Seat assembly
__(2) Back assembly
__(2) Seat support
__(2) Top rails
Right, Left
__(2) Sideframes
__(1) Front mid leg
__(1) Rear mid leg
__(2) Seat
cushion
__(2) Back cushion
__(1) Hardware pack

TOOLS NEEDED

4mm" HEX KEY: INCLUDED
Phillips head screwdriver
Qty. Description
A - 14 X 3 SOCKET WAFER "B"
16
B - 1/4-20 x 1/2" BARREL NUT
3
C - 1/4-20 X 1-1/2 WAFER SHCS
1
D - 1/4-20 X 3-1/4 WAFER SHCS
2

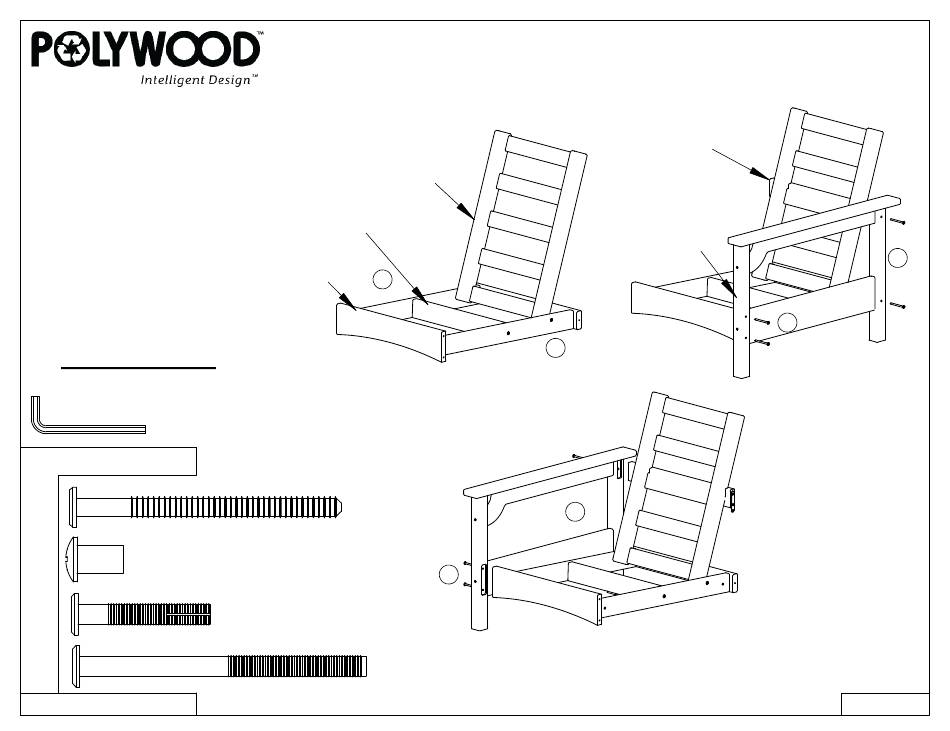

ASSEMBLY INSTRUCTIONS
Step 1
- Attach seat support to seat assembly
using (2) 3" chair screws
- Attach back assembly to seat assembly
using (2) 3" chair screws
-Repeat until all seats and backs
are assembled.
Back assembly
Seat support
A
Seat assembly
Step 3
Lay another seat assembly on its side.
Attach right sideframe to seat assemby and
right top rail using (4) 3" chair screws
ALL HARDWARE IS COATED STAINLESS STEEL
Left sideframe
A
A
A
Step 2
Lay a seat assembly on its side.
Attach left sideframe to seat assemby and
left top rail using (4) 3" chair screws
Left top rail
A
See page 2
A
9/14/2012
