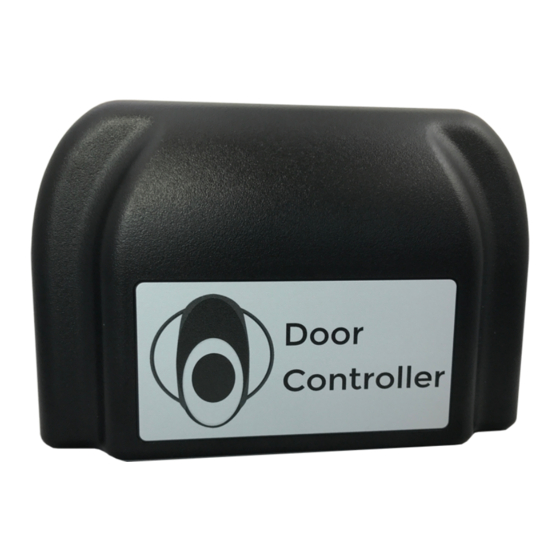

- Page 1 HangarBot Door Controller INSTALLATION MANUAL DCN-8000-17-v1 www.hangarbot.com DCN-8000-17-v1 February 2018...
-
Page 2: Table Of Contents
1. Introduction 2. Overview: 3. Installation 4. Wiring Installation Steps- For Electrician/Installers 5. Housing installation 6. HangarBot App 7. Recommended Tools/Supplies 8. Specifications: www.hangarbot.com DCN-8000-17-v1 February 2018... -
Page 3: Introduction
2. Power Cord 3. New wires Figure 1 2. Overview: The Hangarbot Door controller is used inline with the existing momentary contact three button control station of the hangar door as shown in Figure 2: Figure 2 www.hangarbot.com DCN-8000-17-v1... - Page 4 The hangarbot door controller ensures that no motor load current will pass through, only low voltage DC for signaling. The controller has 5A relays to control the hangar door motor. The controller is connected to Hangarbot App through the hangarbot HUB and enables the...
-
Page 5: Installation
Note1: if the operator sends multiple OPEN/CLOSE/STOP commands, the door controller will acknowledge the last command only 3. Installation The wiring diagram below (figure1) shows the general wiring configuration, including connections to existing switch and hangar door motor www.hangarbot.com DCN-8000-17-v1 February 2018... -
Page 6: Wiring Installation Steps- For Electrician/Installers
4. Wiring Installation Steps- For Electrician/Installers ○ Disconnect all power to the hangar door (breaker, relay ..etc) ○ Open the Hangarbot door controller cover ○ Connect M_GND door controller to switch GND terminal using new wire ○ Connect STOP door controller terminal to switch STOP terminal using new wire (color) ○... -
Page 7: Housing Installation
○ Connect motor OPEN terminal to OPEN door controller terminal ○ Use the second hole on the right side of plate for wire access ○ Close the hangarbot door controller cover ○ Connect all power to the hangar door ○ Connect power to the door controller using the enclosed power adapter ○... - Page 8 ○ Go to SECURITY option in the app ○ You should have the following options: www.hangarbot.com DCN-8000-17-v1 February 2018...
-
Page 9: Recommended Tools/Supplies
○ Terminal wire connector ○ Crimp lugs ○ Crimp tool ○ Drill if necessary 8. Specifications: Operating Temperature Dimensions 5 x 7.5 x 1.75 in. W x L x H Weight 300g Input Voltage 12V @ 1.5A www.hangarbot.com DCN-8000-17-v1 February 2018... - Page 10 Min.Current 0.15A Draw Relay Ratings 5A @ 250VAC www.hangarbot.com DCN-8000-17-v1 February 2018...
