3. Remove the PM2.0 × 5.0 screw 1 that secures the mini PCI
compartment cover to the base enclosure (Figure 5-10).
4. Lift the front edge of the cover and swing it back 2.
5. Remove the cover 3.

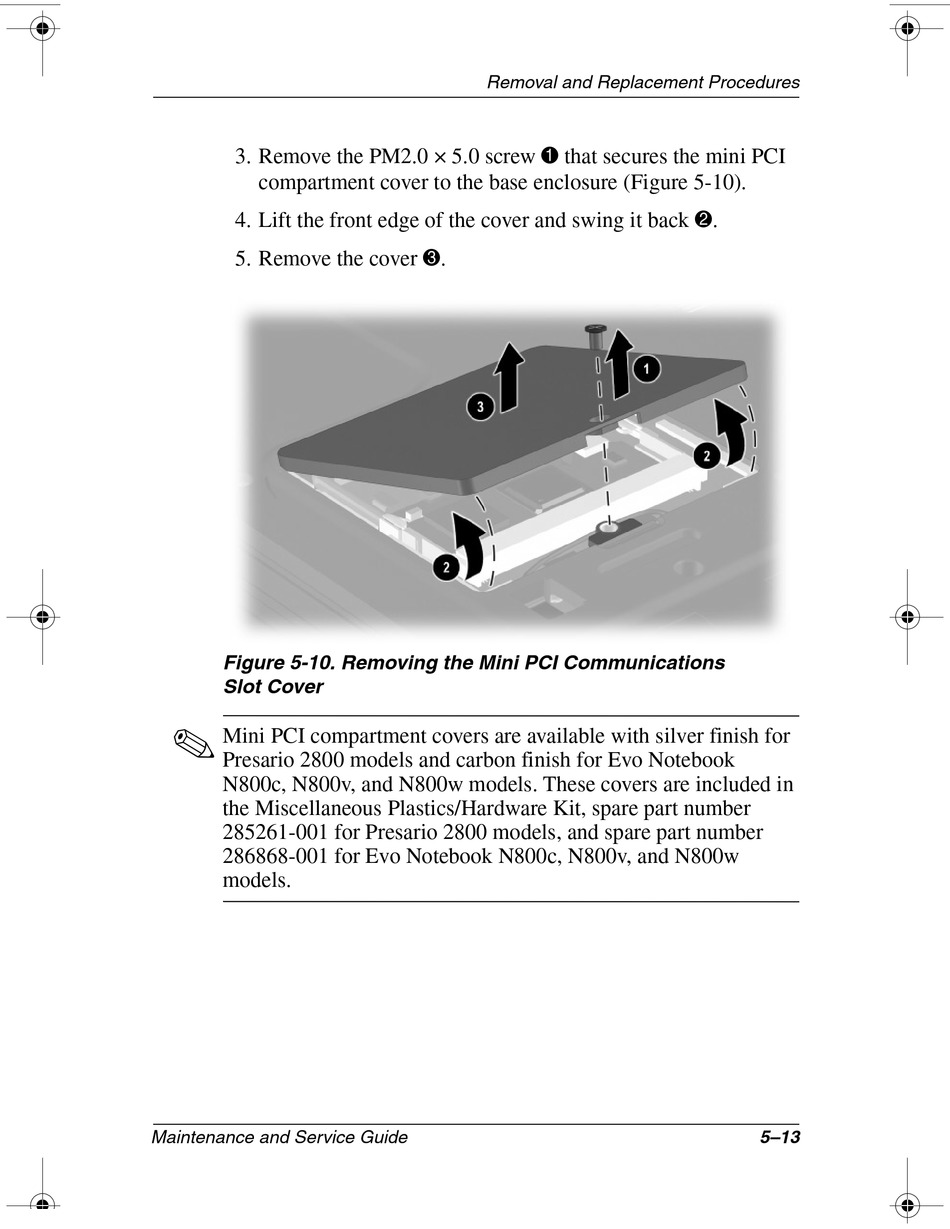

Figure 5-10. Removing the Mini PCI Communications
Slot Cover
✎
Mini PCI compartment covers are available with silver finish for
Presario 2800 models and carbon finish for Evo Notebook
N800c, N800v, and N800w models. These covers are included in
the Miscellaneous Plastics/Hardware Kit, spare part number
285261-001 for Presario 2800 models, and spare part number
286868-001 for Evo Notebook N800c, N800v, and N800w
models.
