6. Spread the memory expansion slot retaining tabs to release
the memory expansion board 1. The board tilts up at a
45-degree angle (Figure 5-9).
7. Remove the board by pulling it away from the connector at a
45-degree angle 2.

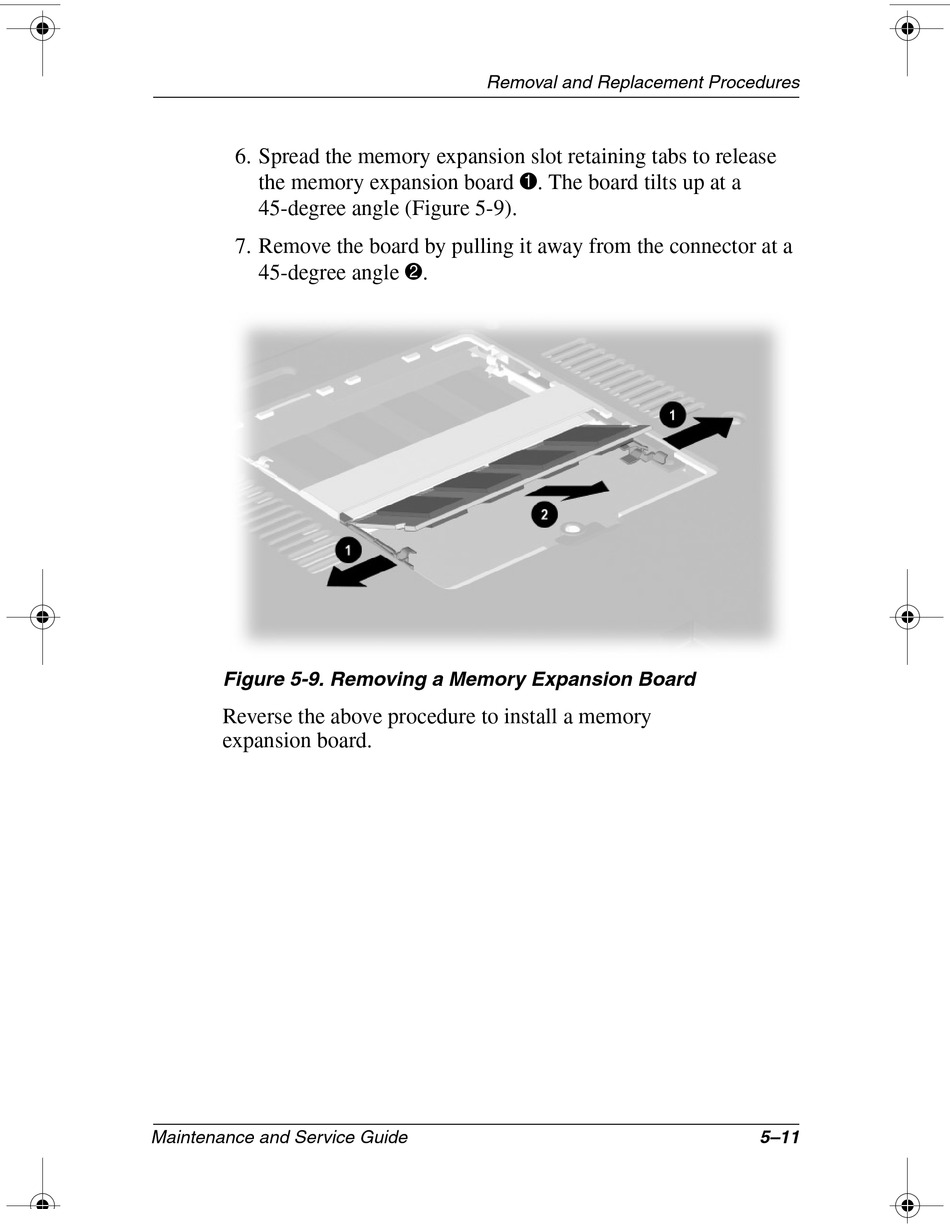

Figure 5-9. Removing a Memory Expansion Board
Reverse the above procedure to install a memory
expansion board.
