Olympus DS-3300 Quick Start Manual

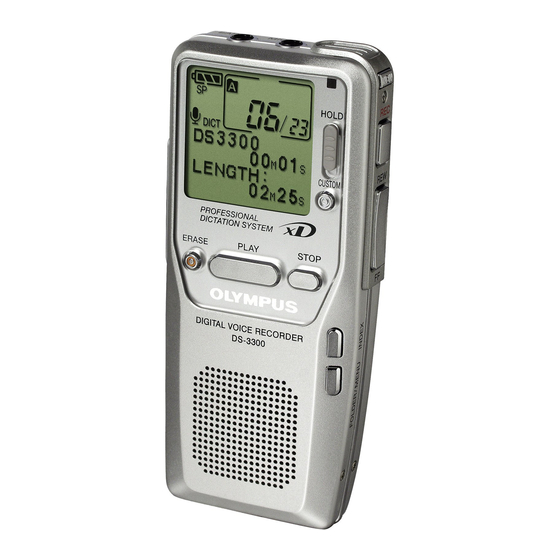

DIGITAL VOICE RECORDER
DS-3300

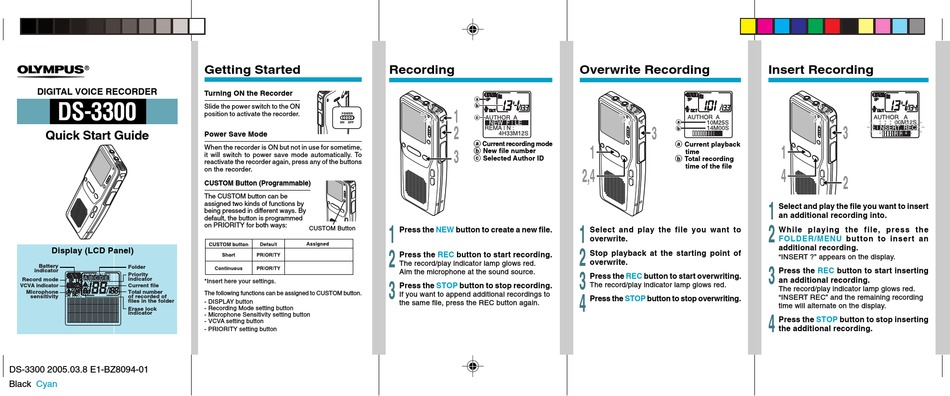

Quick Start Guide

Display (LCD Panel)

Battery
Folder
indicator
Priority
Record mode indicator
VCVA indicator Current file
Microphone Total number
of recorded of
sensitivity
files in the folder
Erase lock
indicator

Getting Started

Turning ON the Recorder

Slide the power switch to the ON
position to activate the recorder.

Power Save Mode

When the recorder is ON but not in use for sometime,
it will switch to power save mode automatically. To
reactivate the recorder again, press any of the buttons
on the recorder.

CUSTOM Button (Programmable)

The CUSTOM button can be
assigned two kinds of functions by
being pressed in different ways. By
default, the button is programmed
on PRIORITY for both ways:
CUSTOM Button
*Insert here your settings.
The following functions can be assigned to CUSTOM button.
- DISPLAY button
- Recording Mode setting button
- Microphone Sensitivity setting button
- VCVA setting button
- PRIORITY setting button

Recording

1
2
a Current recording mode
b New file number
3
c Selected Author ID
1
Press the NEW button to create a new file.
2
Press the REC button to start recording.
The record/play indicator lamp glows red.
Aim the microphone at the sound source.
3
Press the STOP button to stop recording.
If you want to append additional recordings to
the same file, press the REC button again.

Overwrite Recording

3
a Current playback
1
time
b Total recording
time of the file
2,4
1
Select and play the file you want to
overwrite.
2
Stop playback at the starting point of
overwrite.
3
Press the REC button to start overwriting.
The record/play indicator lamp glows red.
4
Press the STOP button to stop overwriting.

Insert Recording

3
1
4
2
1
Select and play the file you want to insert
an additional recording into.
2
While playing the file, press the
FOLDER/MENU button to insert an
additional recording.
"INSERT ?" appears on the display.
3
Press the REC button to start inserting
an additional recording.
The record/play indicator lamp glows red.
"INSERT REC" and the remaining recording
time will alternate on the display.
4
Press the STOP button to stop inserting
the additional recording.
