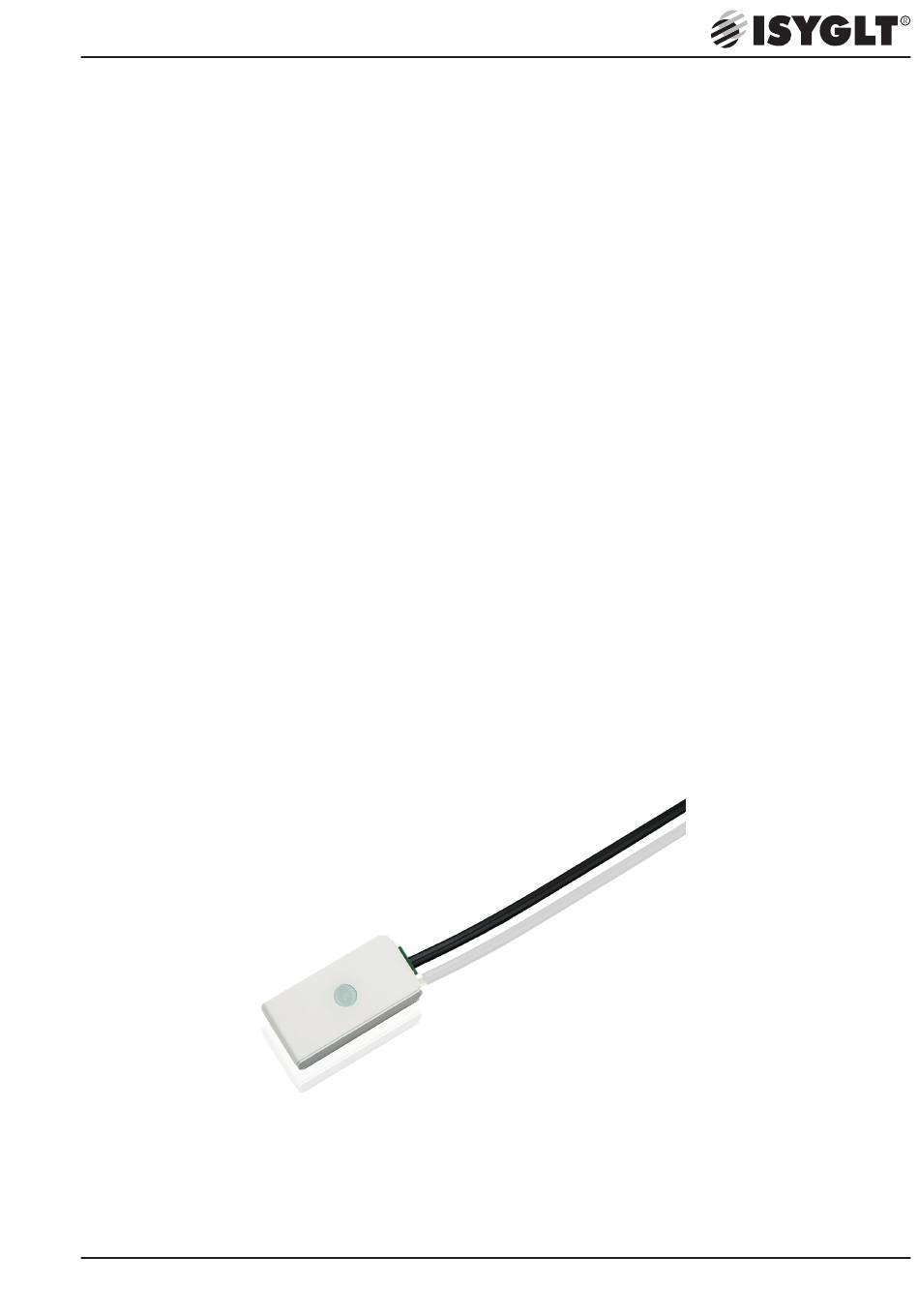

- Page 1 Technical Data / Instruction Manual LS-03 Article no. 80085062 Digital Light Control Sensor Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
-
Page 2: Notes On Documentation
These instructions are intended for qualified personnel who 1. Notes on documentation are familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these opera- ting instructions through before commissioning and keep them 1.1. Retention of documents accessible for further use. -
Page 3: Safety Instructions
Observe the following general safety instructions when installing and commissioning the device: regulations. Assembly and installation of the ISYGLT module may only be car- The module is intended for surface mounting, e.g. on a wall. ried out by a qualified electrician. Other activities in connection... -
Page 4: Warranty
These are limited to the intended use of the module and EU on waste electrical and electronic equipment at the local coll- refer to the repair or replacement of the ISYGLT module. Please ection points for waste electrical and electronic equipment! send the device with an attached error description to our com- pany address given below. -
Page 5: Product Description

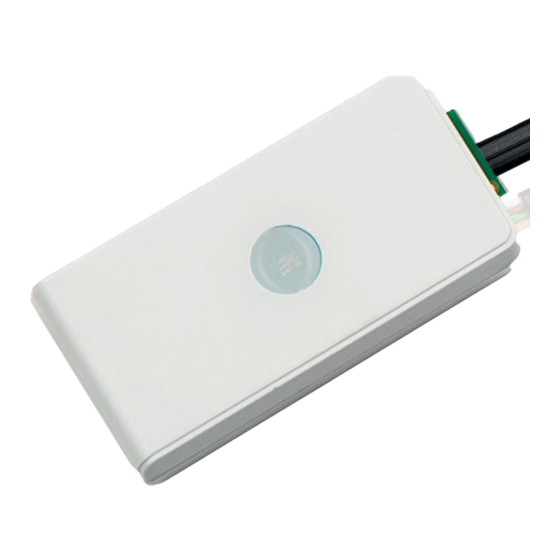

9. Product description The LS-03 digital light sensor is used to measure brightness. The areas of application range from simple brightness measure- ment in rooms to sophisticated museums and galleries. In these objects, the brightness can be measured exactly at the position of exhibits (e.g. -
Page 6: 10. Technical Data
10. Technical data Type designation LS-03 Article no. 80085062 Operating voltage 12-35V DC Current consumption at 24V DC max. 20mA Subnet (RS-485) max. 5.6V limited by Z-diodes Dimensions LxWxD 50.8 x 25.3 x 12.7mm Weight Connection 4-pole cable Operating temperature -10°C to +50°C... -
Page 7: Light Sensor
BUS-A BUS-B 1 2 3 4 5 6 7 8 ISYGLT Address Light sensor LS-03 Art. no.: 80085062 Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de...
