Technical Data / Instruction Manual
LS-05-HF-WH
Article no. 80085064

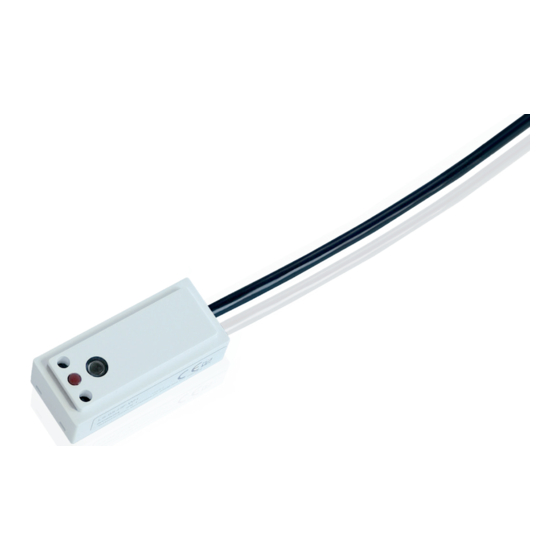

Digital Light Sensor with integrated HF Motion Sensor
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-05-HF-WH and is the answer not in the manual?

Questions and answers

Related Manuals for ISYGLT LS-05-HF-WH

Summary of Contents for ISYGLT LS-05-HF-WH

  • Page 1 Technical Data / Instruction Manual LS-05-HF-WH Article no. 80085064 Digital Light Sensor with integrated HF Motion Sensor Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
  • Page 2 These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.
  • Page 3 Protect module from humidity • and configuration of the ISYGLT module may only be carried out by trained staff. In addition to these safety instructions, you must also observe the special safety instructions listed in the individual chapters for Observe the electrical installation regulations of the country in which the individual acts.
  • Page 4 These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.
  • Page 5 9. Product description The LS-05-HF-xx is a digital light sensor with HF motion sensor for indoor applications. The sensor is connected directly to the ISYGLT BUS. The light sensor supplies a 16-bit brightness value that can be calibrated. This light value can be used to implement daylight con- trols, regulations and switching thresholds.
  • Page 6 10.2. Address setting Due to its design, the sensor does not provide space for the usual DIP switch for address setting. At this sensor, the address is set via software parameterisation with the ISYGLT ProgramDesigner. Display and buttons at the sensor...
  • Page 7 In the ProgramDesigner (from version 8.00.13.1002 R095) the sensor must be created as a module. Additionally a virtual module „ISYGLT_ADR“ is required. To set the BUS address, the desired address must be entered in the register Parameter. Now the sensor to be addressed must be put into addressing mode - the red LED now flashes quickly. Click on „Sende Parameter“...
  • Page 8 View 11. Wiring diagram +24V +24V BUS-A BUS-A BUS-B BUS-B BUS address Light/HF motion sensor LS-05-HF-xx Art. no.: 80085064 Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
