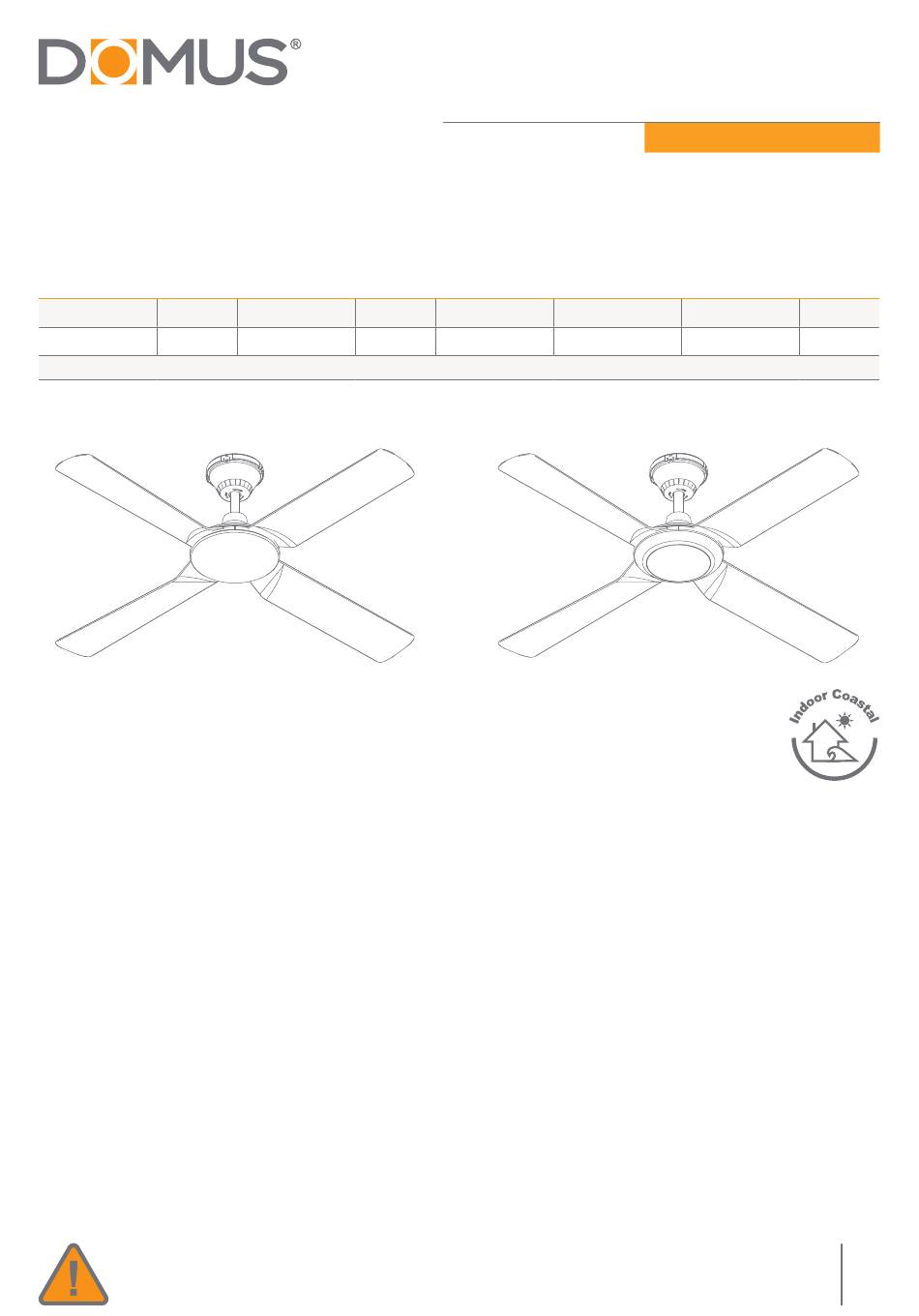

FRESCO-52
Thank you for purchasing your new FRESCO-52 ceiling fan, Please take the time to read and understand the instruction sheet below.
Failure to do so may void warranty. The fan is suitable for installations indoor and outdoor, including exposed outdoor areas. IP66
Weatherproof rating.
Specifications
Input Voltage:
240V
Tropically Rated: Yes
Due to product improvements, these specifications may vary from time to time, please refer to Online data sheet for latest specifications.
FRESCO-52
• After installation, electricians must tick off all items on the quick checklist and fill out their details towards the back of this Installation and
User Manual.
• Isolation switch and wall plate required. To suit the location and décor, these parts must be supplied by the installing electrician.
Warranty Procedure*
• For online warranty bookings visit: www.domuslighting.com.au/warranty
• For technical advice call: (02) 9554 9600 (Monday to Friday from 9am to 5pm EST)
• *Warranty only available within Australia
POWER OUTLETS OR FIXED WIRING MUST BE INSTALLED BY A LICENSED ELECTRICIAN
To protect your customer's WARRANTY please READ PAGE 2 of this booklet prior to the installation of this product.
Power:
26W
Blade pitch:
14.5º
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
enquiries@domuslighting.com.au | www.domuslighting.com.au
Type of motor:
DC
Airflow:
14,269m

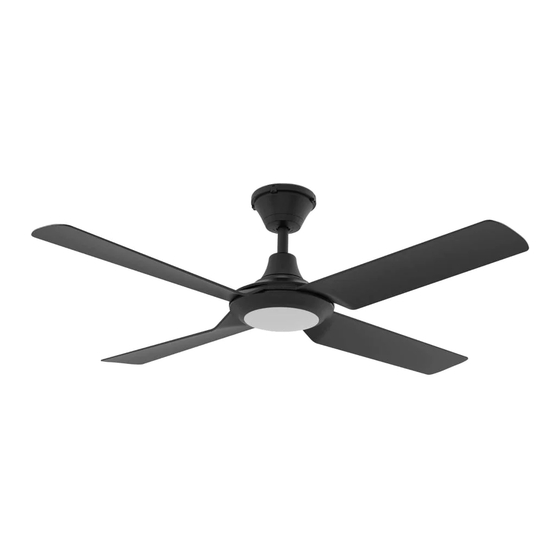

FRESCO-52-LIGHT
Installation Manual
Date: November 18, 2022 10:32 am
Fan Weight:
/h
3
5.1Kg
1
