Range:
SCF100-S
Standard
SCF100-T
Overrun timer
SCF100-HPC
Humidistat and optional overrun timer and pull-cord switch override
OPERATION
Overrun timer adjustment – models fitted with overrun timers only
Before making any adjustments, isolate the fan from the power supply. Remove the front cover and the
body moulding. Locate the 'jumper' on the relevant set of pins to achieve the desired run-on time (see
Diagram 4).
Humidity adjustment – humidistat models only
All GCF humidistat fans automatically sense a rapid change in humidity and adjust accordingly. The
humidity control does not require manual adjustment.
Performance:
19 l/s at 0 Pa – 96 Pa at 0 l/s
Rating:
230V 50Hz 22W
IPX4
This product is double insulated and does not require an earth conductor.
Maximum room temperature 40ºC
V E N T I L A T I O N
Domus Ventilation
Cambria House
Caerphilly Business Park
Van Road
Caerphilly
CF83 3ED
Tel: +44 (0)3443 715523
Fax: +44 (0)3443 715524
Email: vent.info@domusventilation.co.uk
www.domusventilation.co.uk
LAB1108R
Issue 2
09/17
SFP
V E N T I L A T I O N

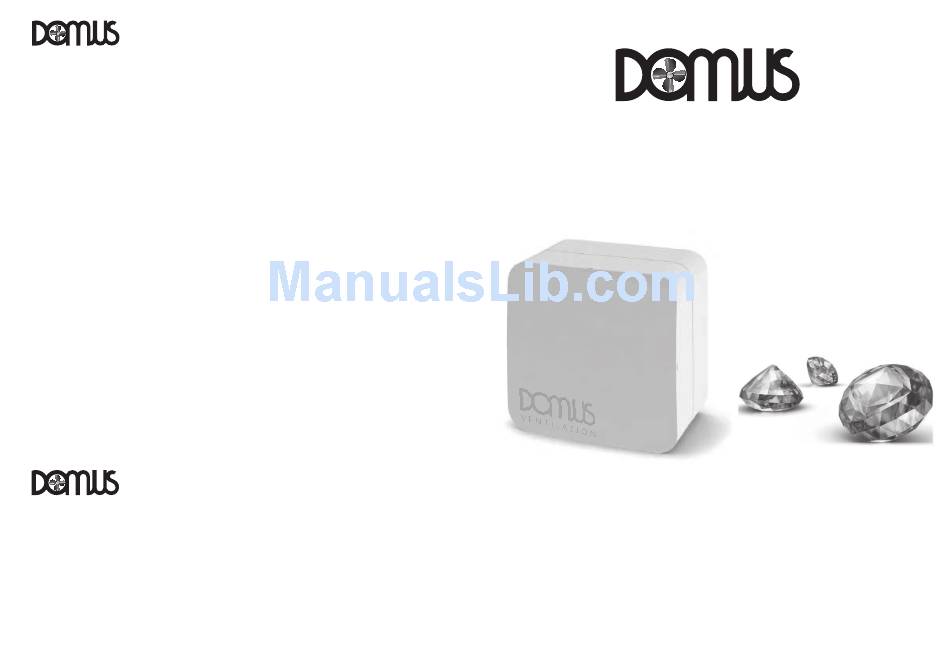

Installation Instructions
Sapphire Range
SCF100 Centrifugal Fans
LAB1108R
Issue 2
09/17
