Alesis io2 Express 24-Bit USB Recording Interface Manual

REGISTRATION

Please go to http://www.alesis.com to register your iO2 EXPRESS. Registering your product ensures that we can keep you up-to-date with any new product developments and provide you with world-class technical support, should you run into any problems.

BOX CONTENTS

• iO2 EXPRESS
• USB cable
• Software CD
• Quickstart Guide
• Safety Instructions & Warranty Information booklet

CONNECTION DIAGRAM

Notes:

• When recording a guitar or bass with an active pickup, set the iO2 EXPRESS's MIC/LINE / GUITAR SWITCH to "MIC/LINE." If your instrument uses a passive pickup, set the switch to "GUITAR."
• Do not use the MIC INPUT and GUITAR/LINE INPUT at the same time on one channel. This may overload the channel and cause distortion.
• Plug the iO2 EXPRESS directly into your computer, and avoid using a USB hub. Hubs can interfere with the iO2 EXPRESS's audio and MIDI timing signals.
• To reduce electrical hum at high gain settings, keep the iO2 EXPRESS's power supply away from your guitar cable and the iO2 EXPRESS's channel inputs.

SYSTEM REQUIREMENTS

Minimum PC Requirements:

• Pentium III 450 MHz Processor
• 128 MB RAM
• Available USB 1.1 Port
• Windows XP (with Service Pack 2 installed)

Minimum Macintosh Requirements:

• Any Apple computer with native USB support
• Mac OS X "Jaguar" version 10.2 or later
• 128 MB RAM

Recommended PC Requirements:

• Pentium 4 or Athlon Processor
• 512 MB RAM
• 7,200 RPM Hard Disk Drive
• Available USB 1.1 Port
• Windows XP (with Service Pack 2 installed)

Recommended Macintosh Requirements:

• G4 733-MHz Processor or faster
• 7,200 RPM Hard Disk Drive
• Mac OS X "Jaguar" version 10.2 or later
• 512 MB RAM

AUDIO SETUP

The iO2 EXPRESS is a class-compliant device that can be used with any digital audio workstation or recording software Be sure your audio software program is that supports USB audio. To enable your iO2 EXPRESS to set up to receive audio via the iO2 send and receive audio to and from your computer, follow the EXPRESS. This can usually be done in instructions below for your computer's operating system: your software's "Preferences" or "Device Setup." Please consult your

WINDOWS 7:

1. Use the included cable to connect the iO2 EXPRESS to your computer.
2. Go to Start Menu Control Panel Hardware and Sound Sound.
3. Click the Playback tab and select USB Audio Codec* as the default device.
4. Click the Recording tab and select USB Audio Codec* as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2- channel, 16-bit, 44100 Hz (CD Quality) as the default format.
7. Uncheck both boxes under Exclusive Mode.
8. Click the Levels tab and set the slider to "4."
9. Click OK to close the Properties window.
10. Click OK to close the Sound control panel.

WINDOWS VISTA:

1. Use the included cable to connect the iO2 EXPRESS to your computer.
2. Go to Start Menu Control Panel Sound. (If you don't see Sound, select Switch to Classic View, and the Sound Control Panel should become available.)
3. Click the Playback tab and select USB Audio Codec* as the default device.
4. Click the Recording tab and select USB Audio Codec* as the default device.
5. Click Properties in the lower right-hand corner.
6. In the new window, click the Advanced tab and select 2-channel, 16-bit, 44100 Hz (CD Quality) as the default format.
7. Uncheck both boxes under Exclusive Mode.
8. Click OK to close the Properties window.
9. Click OK to close the Sound control panel.

WINDOWS XP:

1. Use the included cable to connect the iO2 EXPRESS to your computer.
2. Go to Start Menu Control Panel Sounds and Audio Devices.
3. Click the Audio tab.
4. Under Sound Playback and Sound Recording, select USB Audio Codec* as the default device.
5. Click OK.

MAC:

1. Use the included cable to connect the iO2 EXPRESS to your computer.
2. Go to Applications Utilities Audio MIDI Setup.
3. In the Audio Devices tab under System Settings, select USB Audio Codec* as your Default Input and Default Output.
4. Close the window.

Be sure your audio software program is set up to receive audio via the iO2 EXPRESS. This can usually be done in your software's "Preferences" or "Device Setup." Please consult your software manual for more information.

* If you have other USB audio devices connected to your computer, which may have identical names, you may need to try selecting each one until the iO2 EXPRESS is recognized.

If you experience too much latency after adjusting your software latency settings, we recommend the free ASIO4ALL (Audio Stream Input/Output) driver for PC at www.asio4all.com. ASIO drivers generally perform better and with lower latency since they create a more efficient communication between audio devices and software.

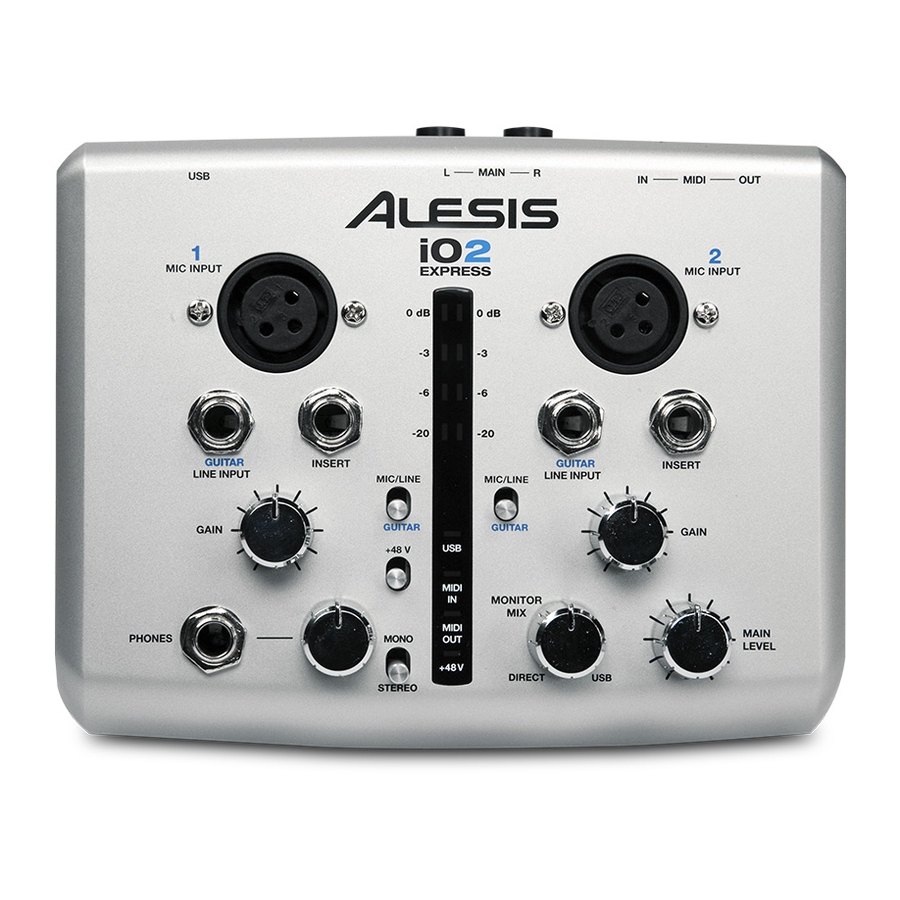

FEATURES

1. USB PORT – Use the included cable to connect the iO2 EXPRESS to a computer. iO2 EXPRESS requires a USB 1.1 or higher (e.g. USB 2.0) connection.
2. MAIN OUT – Use standard 1/4" cables to connect this output to a speaker or amplifier system. The level of this output is controlled by the MAIN VOL knob.
3. MIDI IN – Use a standard five-pin MIDI cable to connect this input to the MIDI OUT of an external MIDI device.
4. MIDI OUT – Use a standard five-pin MIDI cable to connect this output to the MIDI IN of an external MIDI device.
5. PHANTOM POWER LED – Lights up when phantom power is engaged.
6. MIDI OUT LED – Flashes whenever MIDI data is sent out of the iO2 EXPRESS.
7. MIDI IN LED – Flashes whenever MIDI data is received from an external MIDI controller.
8. USB LED – Lights up when a USB connection has been established with your computer.
9. LED METERS – Monitors the audio level of the MAIN OUT.
10. MIC INPUT – Connect a microphone to this input with an XLR cable.
11. GUITAR / LINE INPUT – Connect a line-level device or guitar to this input with a 1/4" cable.
12. MIC/LINE / GUITAR SWITCH – When this switch is in the "GUITAR" position, the channel will serve as a highimpedance input for connecting guitar or bass instruments.
    When the switch is in the "MIC/LINE" position, the channel will accept mic or line-level signals.
13. GAIN – Adjusts the channel audio pre-fader and pre-EQ gain level.
14. INSERT – The insert jack allows you to insert a compressor, EQ, or any other signal processor in between the iO2 EXPRESS's preamplifier and A/D converter.
15. PHANTOM POWER SWITCH – This switch activates and deactivates phantom power. When activated, phantom power supplies +48V to both XLR mic inputs. Please note that most dynamic microphones do not require phantom power, while most condenser microphones do. Consult your microphone's documentation to find out whether it needs phantom power.
16. MONO / STEREO – Adjusts the headphone mix for mono or stereo operation.
17. MONITOR MIX – Blend in any amount of zero-latency signal from your inputs with the output of your computer.
18. MAIN VOLUME – Adjusts the output volume of the MAIN OUT.
19. HEADPHONES – Connect your 1/4" headphones to this output.
20. HEADPHONE VOLUME – Adjusts the volume level of the headphone output.

NOTE: Do not use the MIC INPUT and GUITAR/LINE INPUT at the same time on one channel. This may overload the channel and cause distortion.
