Item # 000-000
Model #FG-BTB4PCDS1

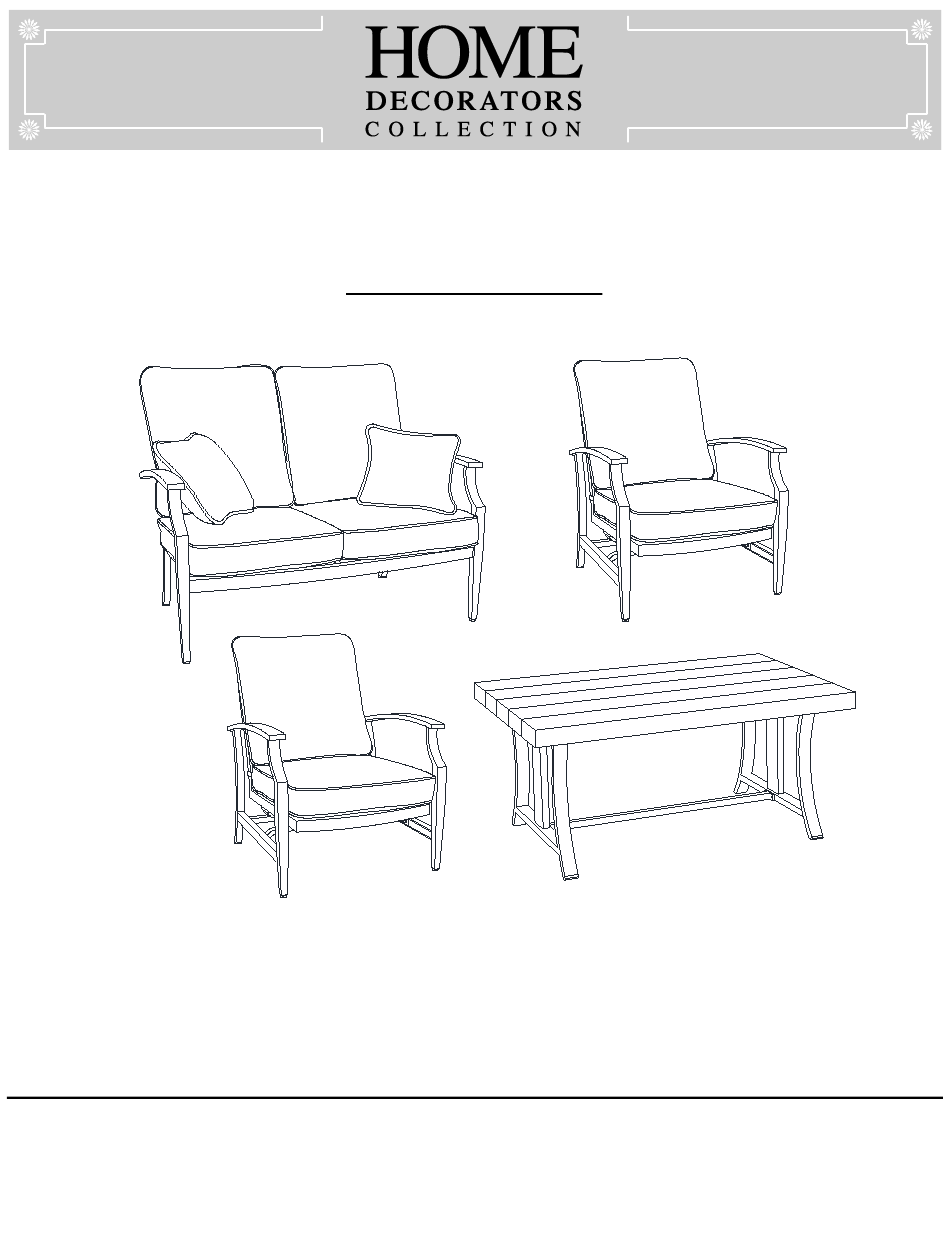

USE AND CARE GUIDE

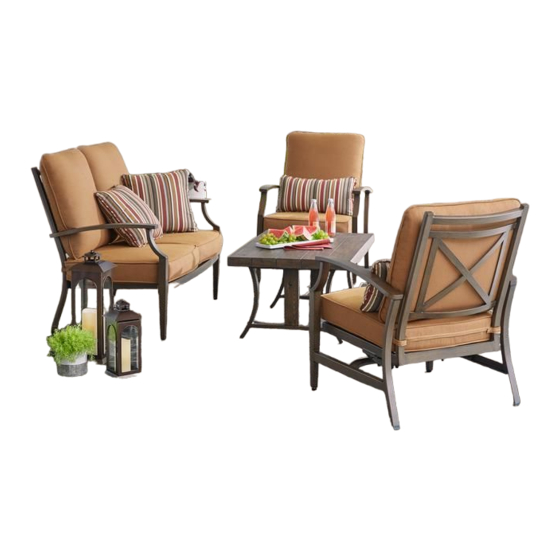

NORTH LAKE 4PC DEEP SEATING SET
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this deep seating
set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTH LAKE FG-BTB4PCDS1 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection NORTH LAKE FG-BTB4PCDS1

Summary of Contents for Home Decorators Collection NORTH LAKE FG-BTB4PCDS1

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this deep seating set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Hardware Included ............. 4 Safety Information ............2 Chair Package Contents ..........6 Warranty ................. 3 Loveseat Package Contents ........7 What is Covered ............3 Coffee Table Package Contents ........ 8 What is Not Covered ..........

  • Page 3: Warranty

    Residential use of this furniture is warranted for a seven (7) year limited warranty period for the frame construction. The warranty is valid from the date of purchase and applies only to the original purchaser. If your Home Decorators Collection...

  • Page 4: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY It will take one or two people about 60 minutes to complete the assembly process. PLEASE READ COMPLETE INSTRUCTION MANUAL PRIOR TO ASSEMBLY! Identify all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a nonabrasive surface to avoid scratching. HARDWARE INCLUDED NOTE: Hardware not shown to actual size.
  • Page 5 Pre- Assembly (Continued) Part Description Quantity Bolt (1/4 in. x 15 mm) Bolt (1/4 in. x 20 mm) Bolt (1/4 in. x 30 mm) Bolt (1/4 in. x 40 mm) Bolt (5/16 in. x 25 mm) Bolt (5/16 in. x 40 mm) Bolt (5/16 in.

  • Page 6: Chair Package Contents

    Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair Seat Left Arm Right Arm Back Cross Bar U Support Bar Seat Cushion Back Cushion Lumbar Pillow...

  • Page 7: Loveseat Package Contents

    Pre-Assembly (continued) LOVESEAT PACKAGE CONTENTS Part Description Quantity Chair Back Left Arm Right Arm Chair Seat Seat Cushion Back Cushion Pillow HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.

  • Page 8: Coffee Table Package Contents

    Pre-Assembly(continued) COFFEE TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Leg Connector Brace...

  • Page 9: Assembly

    Club Chair Assembly ATTACHING THE BACK ATTACHING THE U SUPPORT CROSS BAR TO THE RIGHT BAR TO THE LEFT AND AND LEFT ARMS RIGHT ARMS □ □ Remove all protective material carefully. Avoid Loosely attach the U Support Bar (E) to the Left cutting the surface of the furniture while removing Arm and Right Arm (B&C) with Bolts (EE) through the packaging material on all components.
  • Page 10 Club Chair Assembly (continued) ATTACHING THE CHAIR SEAT TO THE CHAIR BASE □ Place the Chair Seat (A) on a non-abrasive flat surface. Align the holes on the support bar on the underside of the chair seat with the holes on the Spring Plates which are pre-attached to the chair base. Insert Bolts (GG) through the Flat Washers (LL), C Clamp Plate (PP), Support Bar attached to the underside of the seat, and Spring Plates attached to the U Support Bar (E) as the diagram shows.
  • Page 11 Club Chair Assembly (continued) COMPLETING THE ASSEMBLY □ Place the Seat Cushion (F), Back Cushion (G) and Lumbar Pillow (H) on the chair, as seen in the figure. □ The chair is ready for your enjoyment. □ Repeat steps 1-4 to assemble the other chair. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
  • Page 12 Loveseat Assembly ATTACHING THE CHAIR ATTACHING THE LEFT ARM SEAT TO THE CHAIR BACK □ □ Remove all protective material carefully. Avoid Align the bolt holes on the Left Arm (J) with those on scratching the surface of the frames while removing the Chair Seat (L) and loosely secure the Left Arm (J) the packaging material.
  • Page 13 Loveseat Assembly (continued) ATTACHING THE RIGHT ARM FINISHING ASSEMBLY □ □ Align the bolt holes on the Right Arm (J) with those Carefully turn the loveseat to the up-right position on the Chair Seat (L) and loosely secure the Right on a flat surface.
  • Page 14 Coffee Table Assembly ASSEMBLING THE TABLE ASSEMBLING THE TABLE BASE TOP TO THE TABLE BASE □ □ Loosely attach the Table Legs (Q) to the Leg Place the Table Top (P) up-side down. Align bolt holes Connector Brace (R) with Bolts (BB) through the on the Table Legs (Q) to match the bolt holes on the Lock Washers (KK) and Flat Washers (JJ).
  • Page 15 Coffee Table Assembly (continued) ADJUSTING THE COFEE TABLE & FINISHING ASSEMBLY □ With the help of another person, carefully turn the table to the up-right position. Check the alignment of the table and adjust if necessary. Once the alignment is correct and all the bolts are in place, tighten all bolts (BB&...

  • Page 16: Care And Cleaning

    Care and Cleaning Clean the furniture frame with a wet towel using a mild soap and water solution. Dry completely with a soft towel. Clean the cushions and sling seat material with a mild solution of soap and water and hang cushions to drip dry completely. It is recommended that cushions be stored in a dry area during rain and if they are not in use and in direct sunlight.
  • Page 17 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
