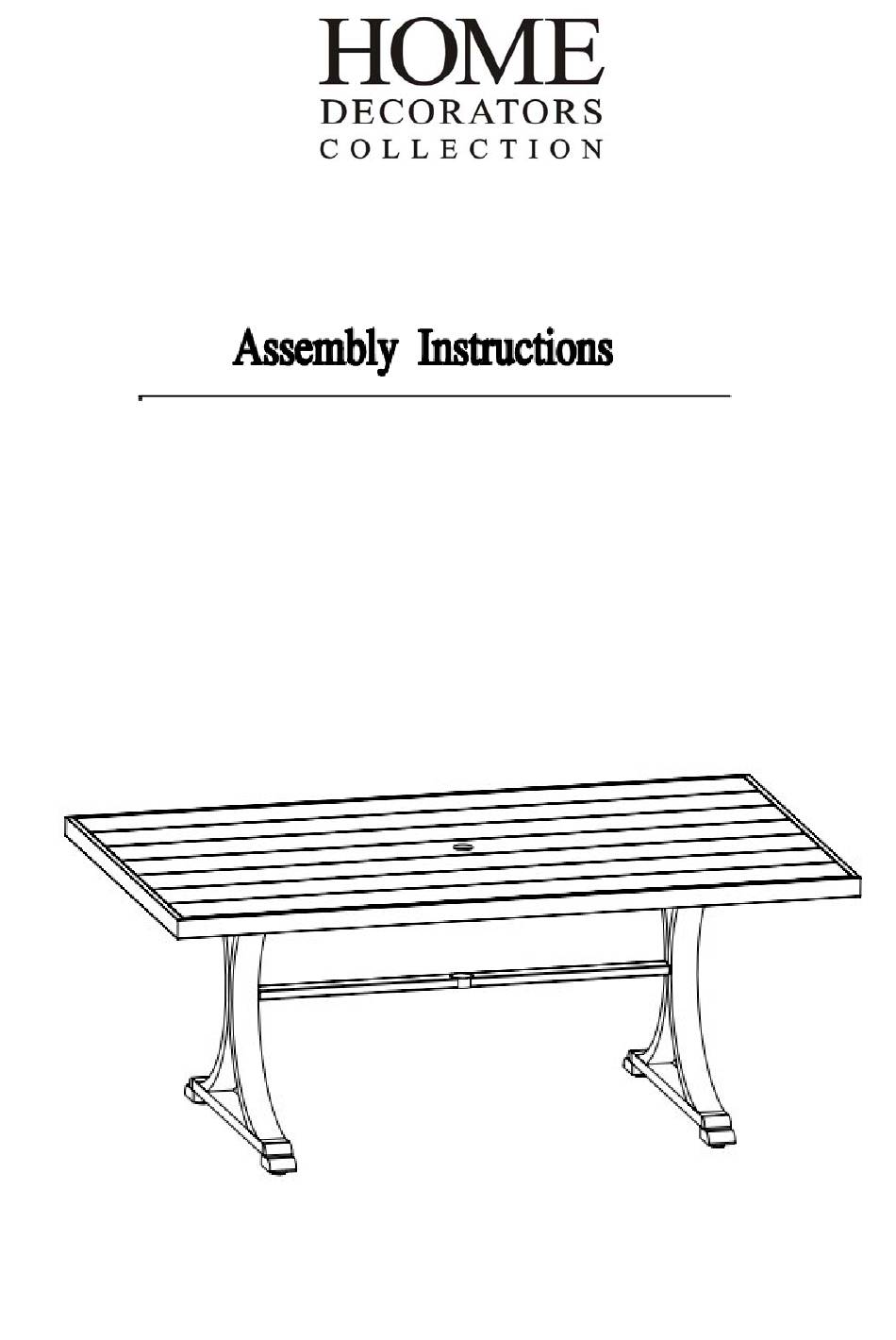

MARTINGALE 72" GRC
DINING TABLE
HDC#:1470910810 MFG#:FTA10006B
Please read over this instruction manual as it will save time in the
assembly of this product.
Note: Prior to assembly, please open and lay parts out on a clean, soft
flat surface to avoid any damages to the product's finish.
page 1-8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection MARTINGALE FTA10006B
Summary of Contents for Home Decorators Collection MARTINGALE FTA10006B
- Page 1 MARTINGALE 72" GRC DINING TABLE HDC#:1470910810 MFG#:FTA10006B Please read over this instruction manual as it will save time in the assembly of this product. Note: Prior to assembly, please open and lay parts out on a clean, soft flat surface to avoid any damages to the product’s finish. page 1-8...
- Page 2 Caution: The Martingale dining table was made for explicit purpose of providing outdoor functions and is not to be used as a toy. This product is not intended for inclement/severe weather in any form including, but not limited to: rain, hail, sleet, snow and/or wind. Manufacturer recommends that with formidable weather approaching you store and/or cover this dining table.
- Page 3 DO NOT RETURN TO RETAILER IF YOU HAVE ANY QUESTIONS OR CONCERNS PLEASE VISIT OUR WEBSITE AT: www.yotrioint.com OR TOLL FREE AT: 1-800-245-2217 MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30 AM TO 8:00PM EASTERN STANDARD TIME YOTRIO CUSTOMER CARE ...
- Page 4 Parts Check List Please remove all parts carefully from box and lay out on clean, soft surface to protect product’s finish.Keep protective covering on table top until fully assembled to protect surface. ① ② Table Top – 1PC Table Leg–2PCS ③...
- Page 5 A .Hex bolt –4PC B. Hex bolt – 8PC M6X15mm M6X20mm C. Washer – 12PCS D. Hex wench– 1PC page 5-8...
- Page 6 Place 2 pieces of Table Leg (2) upside down on a soft surface. Insert Table Leg (2) into Leg Connector (3) in the direction of the arrows in the below image. Loosely secure Leg Connector (3) with 4pcs of Hex Bolt (A) and 4pcs of Washer(C) using the Hex Wrench (D) to secure.
- Page 7 Place protected Table Top (1) upside down on a soft surface. Loosely attach the assembled 2 pieces of Table Leg (2) to Table Top(1)with 8pcs of Hex Bolts(B) and 8pcs of Washer(C) using the Hex Wrench(D). Do not tighten yet! page 7-8...
- Page 8 Flip over table and tighten all the bolts with Hex Wrench (D). Check to ensure the table is tightly assembled and stable before use. Remove protective packaging. page 8-8...
