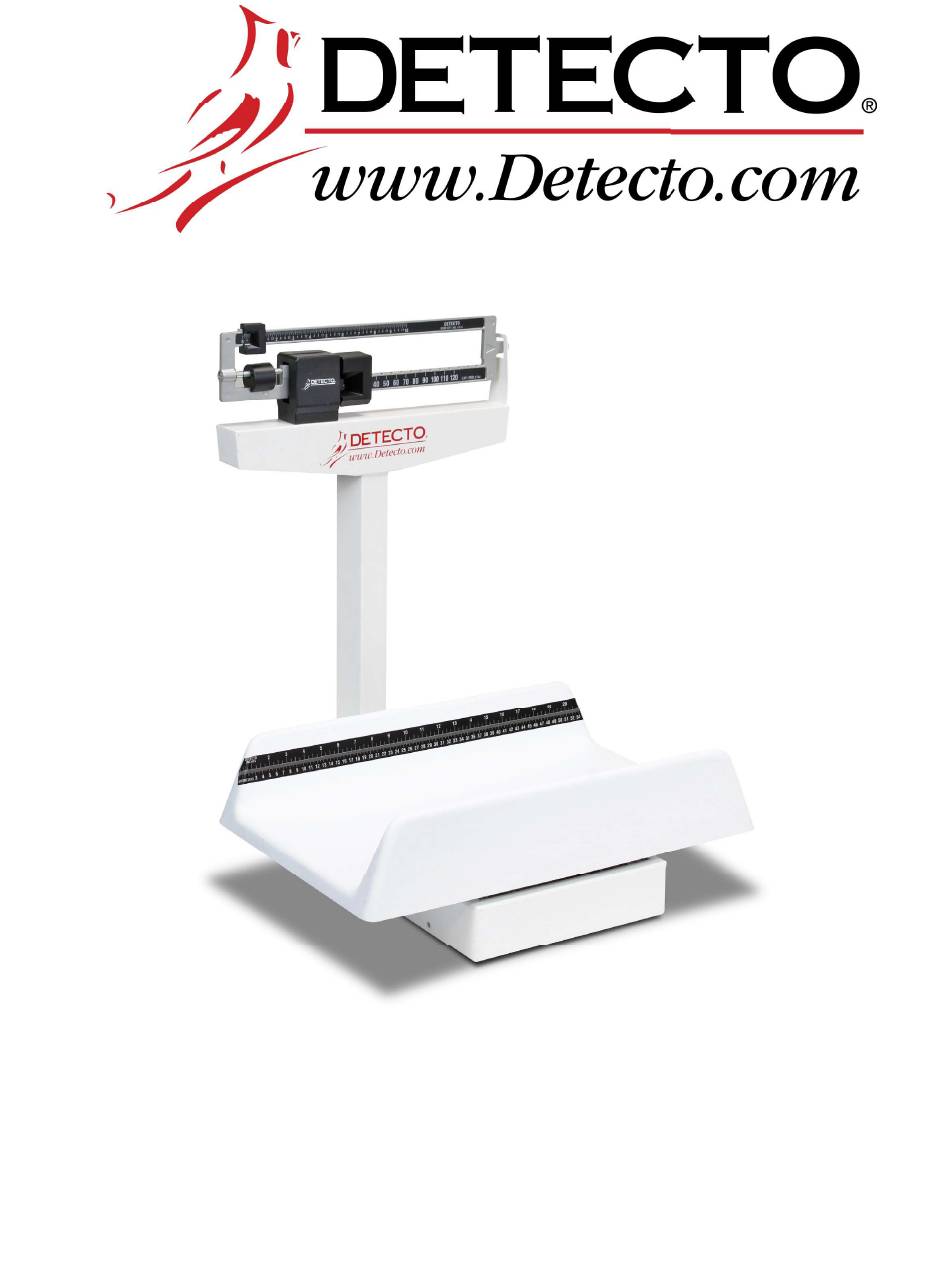

  • Page 1 450 Series Mechanical Baby Scale Owner’s Manual 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 2 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 3 INTRODUCTION The Detecto 450 Series Mechanical Baby Scale is ideal for use in health clinics and medical practices for height and weight measurement of pediatric patients. The scale is durable, having a sturdy enameled steel scale base, a built-in measuring tape (up to 21 in / 53 cm) to allow the healthcare professional to measure both weight and height simultaneously, and an easy-to- clean polystyrene tray that cradles babies securely.

  • Page 4: Specifications

    14.75 in x 10.75 in (37.5 cm x 27.3 cm) Tray Dimensions: 22 in W x 14.75 in D x 4.5 in H (56 cm W x 37 cm D x 11 cm H) 8525-M058-O1 Rev F 450 Series Owner’s Manual...

  • Page 5: Scale Assembly

    Cable Tie Draft Rod Figure 1. - Remove cable tie securing draft rod in column 3. Insert the column onto the scale base (shown in Figure 2), ensuring that the DETECTO logo on the weight beam faces the scale base. Column Scale Base Figure 2.
  • Page 6 5. Lay the scale on a table. Remove and discard the shipping tie-wrap wires on the underside of the scale base as shown in Figure 4. Figure 4. - Lay scale on a table to access the bottom of scale base 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 7 Shelf lever linkage assembly linkage alignment must be properly plug aligned in order to weigh Figure 6. - View of linkage underneath weigh beam headpiece 8. Place the scale gently back on the floor. 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 8 9. Attach baby tray to scale platform using the two (2) flat head screws provided. Do not over- tighten screws. Attach baby tray with (2) provided flat head screws. Figure 7 - View showing attachment of baby tray to scale platform base. 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 9 Small Poise Large Poise Weigh Beam Balance Beam Pointer Screw Trig Loop Figure 8 - View showing components for balancing scale prior to normal operation. 8525-M058-O1 Rev F 450 Series Owner’s Manual...

  • Page 10: Operating The Scale

    OPERATING THE SCALE The following steps will guide you through the operation of your 450 Series, Weigh Beam Neonatal Scale. Refer to Figure 9 below when performing the steps. CAUTION! Do not leave the baby unattended in the baby tray.

  • Page 11: Troubleshooting

    TROUBLESHOOTING The Detecto 450 Series Mechanical Baby Scale is factory-calibrated to within plus or minus 1 ounce (20 grams) accuracy. For the most accurate readings, always use the scale on a hard, level surface and stand in the center of the scale platform with the weight evenly distributed. If...
  • Page 12 REPLACEMENT PART IDENTIFICATION 8525-M058-O1 Rev F 450 Series Owner’s Manual...
  • Page 13 SHELF LEVER HANGER 0033-0553-0A DRAFT ROD AND SHELF LEVER SHORT COLUMN 0033-0544-0A PLATFORM AND BEARING WITH HOLES 0033-0546-08 BASE FEET 0033-0547-08 HANGER OUTER 0033-0548-08 HANGER CENTER 0033-0549-08 DRAFTROD HOOK 33P50 BABY TRAY Not Shown 8525-M058-O1 Rev F 450 Series Owner’s Manual...

  • Page 14: Statement Of Limited Warranty

    (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • Page 15 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
  • Page 16 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 8525-M058-O1 Rev F 03/21 8525-M058-O1 Rev F 450 Series Owner’s Manual...
