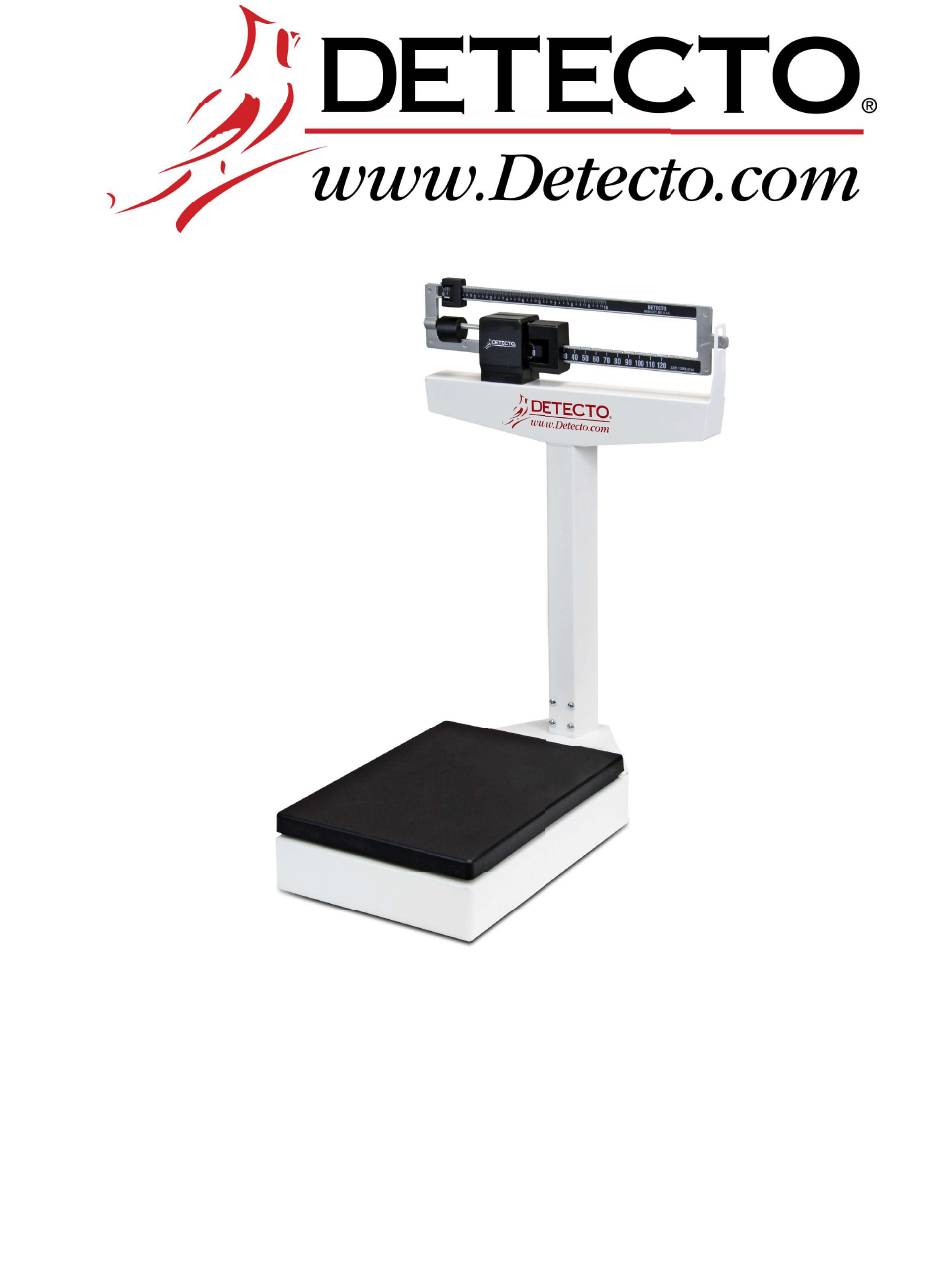

- Page 1 4500 Series Platform Mechanical Bench Scale Owner’s Manual 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
- Page 2 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
- Page 3 INTRODUCTION smaller commercial The Detecto 4500 Series Platform Mechanical Scale is ideal for use in and industrial applications that require high performance with minimum cost. The scale is durable, having a sturdy enameled steel scale base, and is available in single weigh beam capacities of 130 lb x 1 oz or 450 lb x 4 oz, and a front and back reading dual weigh beam capacity of 440 lb x 4 oz/200 kg x 100 g.
-
Page 4: Specifications
4527PK 440 lb x 4 oz or Capacity: 130 lb x 1 oz 450 lb x 4 oz 200 kg x 100 g Platform Size: 14.75” x 10.75” (37.5 x 27.3 cm) 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual... -
Page 5: Scale Assembly
Cable Tie Draft Rod Figure 1. - Remove cable tie securing draft rod in column 3. Insert the column onto the scale base (shown in Figure 2), ensuring that the DETECTO logo on the weigh beam faces the scale base. Column Scale Base Figure 2. - Page 6 5. Lay the scale on a table. Remove and discard the shipping tie-wrap wires on the underside of the scale base as shown in Figure 4. Figure 4. - Lay scale on a table to access the bottom of scale base 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
- Page 7 Figure 6. - View of linkage underneath weigh beam headpiece 8. Place the scale gently back on the floor. 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
- Page 8 Small Poise Large Poise Weigh Beam Balance Beam Pointer Screw Trig Loop Figure 7 - View showing components for balancing scale prior to normal operation. 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
-
Page 9: Operating The Scale
OPERATING THE SCALE The following steps will guide you through the operation of your Detecto 4500 Series Platform Mechanical Scale. Refer to Figure 8 below when performing the steps. 1. Move both poise to the Zero position. Be sure the Beam Pointer is in the center of the opening in the Trig Loop. - Page 10 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
-
Page 11: Troubleshooting
TROUBLESHOOTING The Detecto 4500 Series Platform Mechanical Scale is factory-calibrated to within plus or minus 1/4 pound (0.1 kg) accuracy. For the most accurate readings, always use the scale on a hard, level surface and stand in the center of the scale platform with the weight evenly distributed. - Page 12 REPLACEMENT PART IDENTIFICATION 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
- Page 13 SHELF LEVER HANGER 0033-0553-0A DRAFT ROD AND SHELF LEVER SHORT COLUMN 0033-0543-08 PLATFORM COVER LONG COLUMN 0033-0544-0A PLATFORM AND BEARING WITH HOLES 0033-0546-08 BASE FEET 0033-0547-08 HANGER OUTER 0033-0548-08 HANGER CENTER 0033-0549-08 DRAFTROD HOOK 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
-
Page 14: Statement Of Limited Warranty
(2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect. - Page 15 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
- Page 16 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 8525-0376-0M Rev B 03/21 8525-0376-0M Rev B 4500 Series Bench Owner’s Manual...
