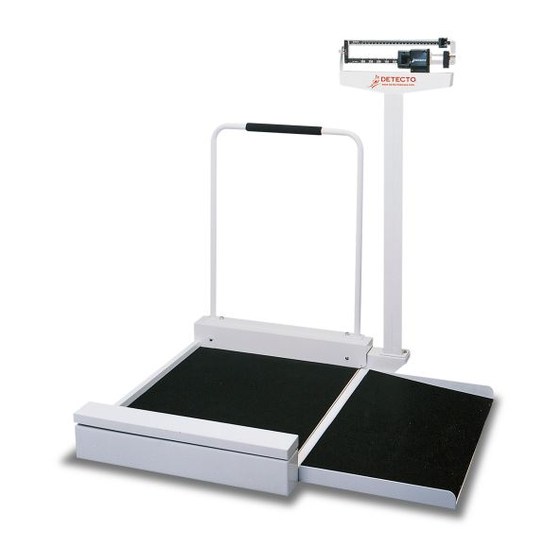

Detecto 495 Manual

Set-up procedure for low-profile wheelchair scale beam

Hide thumbs Also See for 495:

Table of Contents

Download this manual

Set-Up Procedure

for

Low-Profile Wheelchair Scale

Beam Type

Model 495/4951

1. Remove all packing materials.

2. Set scale base on a flat, level surface. Slide ramp pins into T-slots on base;

drop pins into the grooves.

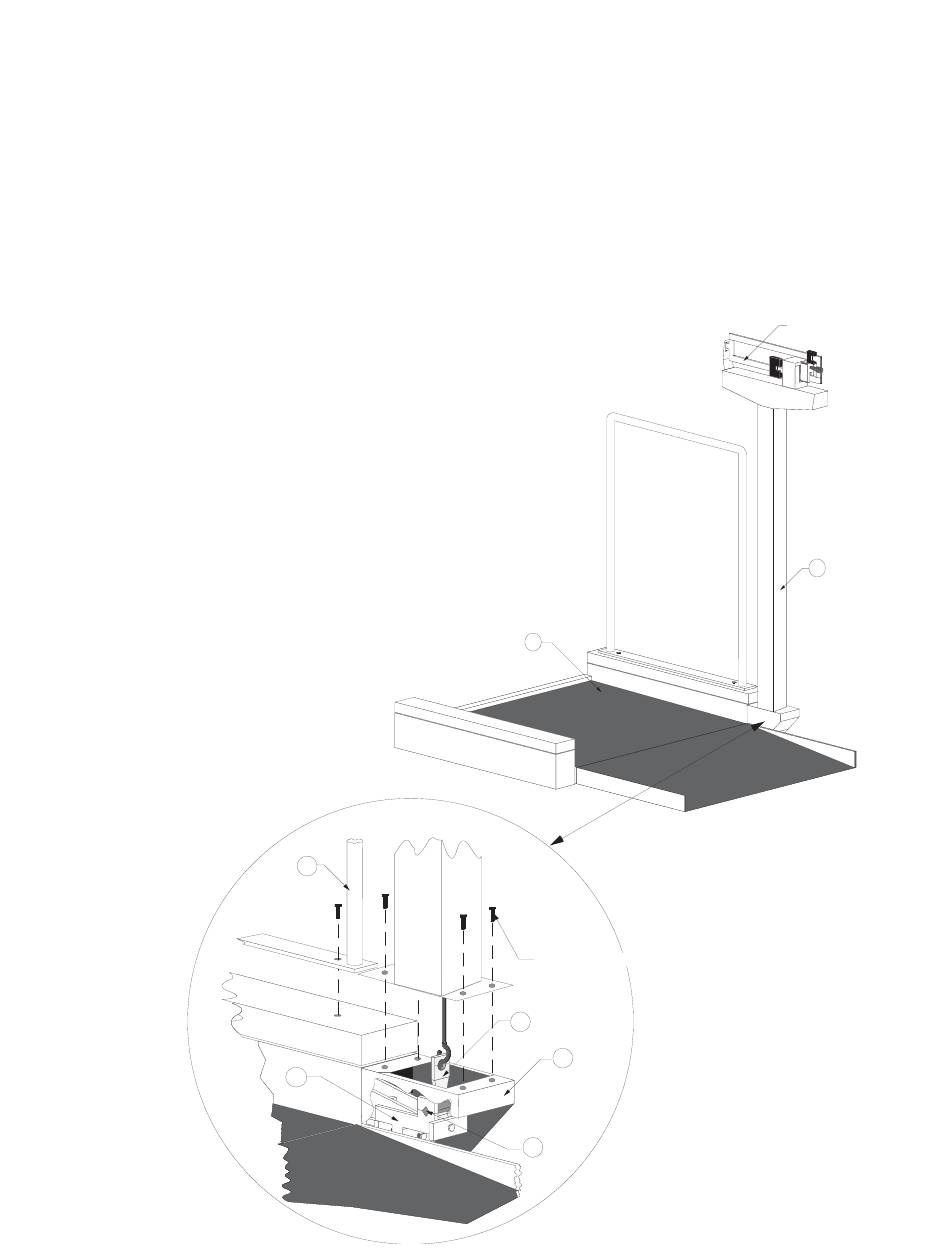

3. Remove 4 (1/4-20) screws from the column bracket (A1). Set aside

(to be used on steps 4 and 5).

4. Set column and beam assembly (B) on column bracket

(A1). Be sure the back of the beam is facing the scale

deck (A). Secure column and beam assembly with

4 (1/4-20)screws. Do not tighten the screws.

5. To attach handrail (C), remove 2 (3/8-16) screws from the top

of weighbridge side. Set the handrail on the weighbridge

side, align holes, reinstall 2 (3/8-16) screws and tighten.

1/4-20 Screws (4)

Back of beam
