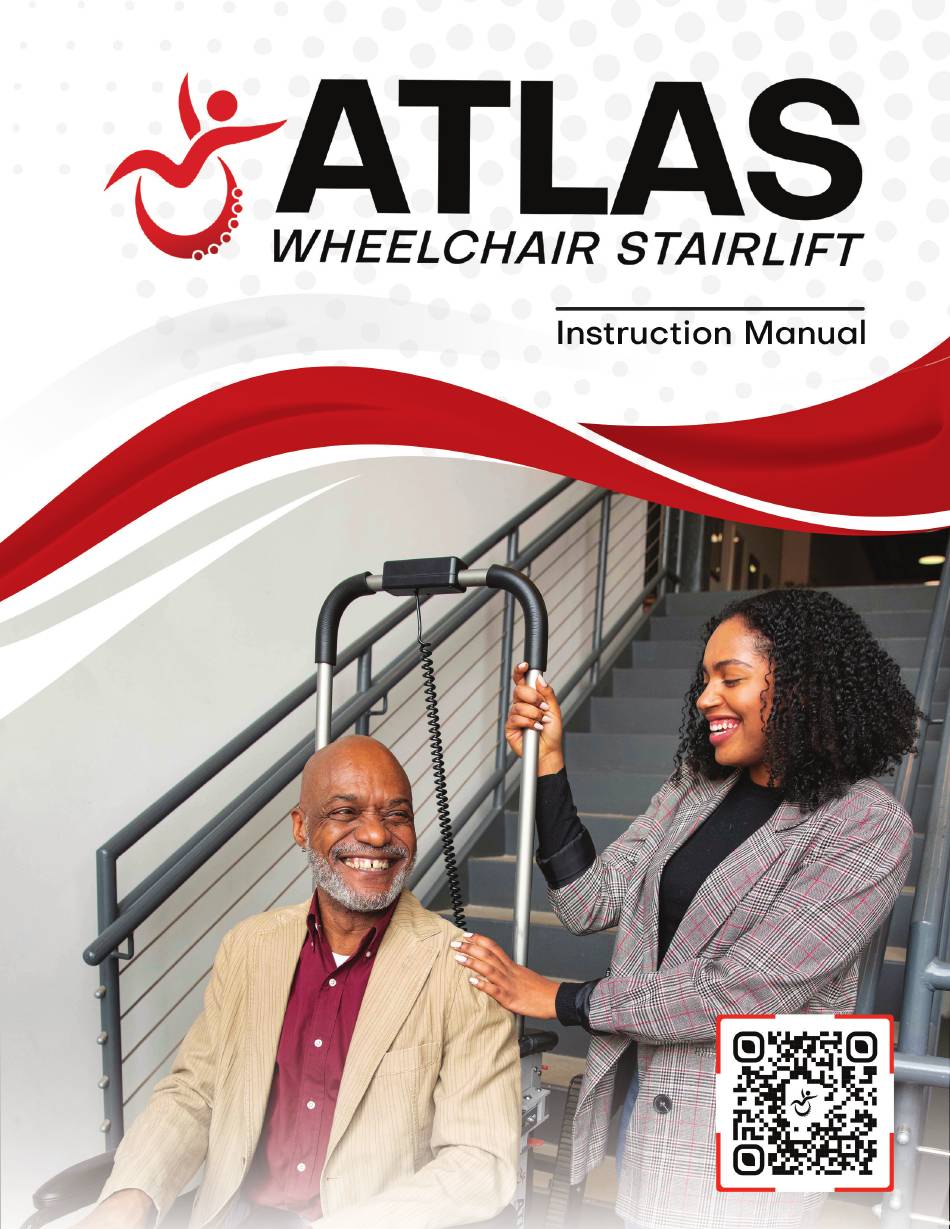

MOBILE STAIRLIFT ATLAS Instruction Manual

Wheelchair stairlift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLAS and is the answer not in the manual?

Questions and answers

Related Manuals for MOBILE STAIRLIFT ATLAS

Summary of Contents for MOBILE STAIRLIFT ATLAS

  • Page 2 1.0-1.4...
  • Page 3 Symbols and Definitions Used in the Manual 2.1 - Warning/Cautions/Note Definitions 2.2 - Safety Precautions Diagram of Chair 3.1 - Side View of the Atlas Setting up the Mobile Stairlift Atlas 4.1 - Using the Atlas Care and Cleaning Instructions...

  • Page 4: Indications For Use

    1.0-1.1 1.0 Introduction Thank you for purchasing a Mobile Stairlift Atlas Wheelchair Lift! We aim to provide the safest and most adaptable mobility equipment on the market. Please read this manual in its entirety before operating or maintaining this product. To ensure safe use, all operators of this device should be properly trained.

  • Page 5: Unpacking The Device

    1.2 General Description / Intended Use The Mobile Stairlift Atlas Wheelchair Lift is intended as a transport device for a human occupant in a seated position to be taken up or down flights of stairs. The occupant’s chair should be secured in the chair by restraints for their safety and the safety of the operator.
  • Page 6 NOTE: This provides special information to make maintenance easier or important instructions clearer. ATLAS WHEELCHAIR STAIRLIFT...

  • Page 7: Safety Precautions

    Avoid getting dirt inside the tracks. Do not attach any additional items to this chair unless certified by Mobile Stairlift. The Atlas Wheelchair Stairlift may not work the same on all stair surfaces and in all environments and conditions. Never lubricate the belts or tracks of this product. Lubricating the track system can result in injury to the patient and /or operators.
  • Page 8 3.0 Diagram of Chair Hand Controls Wheelchair Frame Clasps Seatbelt Wheelchair Wheel Supports ATLAS WHEELCHAIR STAIRLIFT...
  • Page 9 3.1 Side View of Mobile Stairlift Atlas Wheelchair Lift Handlebar Lock Push Handles Track Locks Wheel Locks WHEEL LOCKS ANTI SLIP RUBBER TRACKS Foot brakes are located behind the two back Tension controlled tracks make controlled wheels. When at rest, please engage the descents safer, and durable rubber ensures brakes to prevent unwanted movement.
  • Page 10 It is recommended that the operator begin training by practicing using the Atlas Wheelchair Stairlift without a rider. This will help them get familiarized with the working mechanisms of the Atlas Wheelchair Stairlift and how to safely move on flat surfaces, as well as how to ascend and descend staircases with a rider.
  • Page 11 STEP 4 STEP 5 Stand the Atlas up and lock the Slide the red wheel supports wheels on both sides by in either side by lining up the pressing on the red levers on pieces while pulling the linch the wheels.
  • Page 12 4.1 Using The Mobile Stairlift Atlas Wheelchair Lift STEP 1 Slide the wheelchair into the Atlas, making any minor adjustments if needed, and lock the wheelchair’s wheels. STEP 2 Press on the red lever of the wheelchair frame supports to close and lock the handle around the frame on either side.
  • Page 13 STEP 6 Pull the push handles up by pressing downwards on their red release lever and move them upwards until they also lock into place. ATLAS WHEELCHAIR STAIRLIFT...
  • Page 14 STEP 7 Using the push handles, align the Atlas with the edge of the stairs. Put the push handles in their retracted position before proceeding. STEP 8 Power the device on, tilt the Atlas backwards to the stairs and hold the “up” button to ascend, or the “down”...

  • Page 15: Care And Cleaning Instructions

    In a medical setting, we recommend you disinfect the chair between riders with basic disinfectant for patient and operator safety. 6.0 Maintenance To obtain parts and service call Mobile Stairlift information in the front of this manual. Please contact your representative for prior approval before returning this product 7.0 Troubleshooting If you have any questions about the Stairlift, please call +1 (212) 366-5483 for customer service assistance.
  • Page 16 Will this work on carpeted stairs? How about Wood, Cement, etc.? Yes, the Atlas Wheelchair Stairlift is made to work on all surfaces. On carpeted stairs, the carpet must be fully attached to the stairs. It will not work with unattached carpets: the tracks will not be able to grip properly and may slip during use.

  • Page 17: Warranty

    For further information regarding this limited warranty, please contact Climbing Steps, Inc by calling (212) 366-5483, emailing at Info@ClimbingSteps.com, or writing Climbing Steps, Inc at the following address: Climbing Steps Inc. Attn Mobile Stairlift Warranty Department 1661 N. Dixie Highway Pompano Beach, DL 33060...

  • Page 18: Device Label

    10.0 Device Label ATLAS WHEELCHAIR STAIRLIFT Indications for Use: The Mobile Stairlift Atlas Wheelchair Stairlift is a manual transport device. The Stairlift transports the body in a seated, upright position up or down a set of stairs. The chair holds adult, adolescent, or child occupants who can remain seated and secured in the chair.
  • Page 19 Web: www.mobilestairlift.com 1661 N. Dixie Highway, Bay 12, Pompano Beach, FL 33060 Phone: +1 (212) 366-5483 Scan with your smartphone camera to view the Mobile Stairlift Atlas Wheelchair Lift Information and Product Video Or go to MobileStairLift.com/Atlas ATLAS WHEELCHAIR STAIRLIFT...
  • Page 20 ATLAS WHEELCHAIR STAIRLIFT WWW.MOBILESTAIRLIFT.COM...
