- Page 3 Symbols and Definitions Used in the Manual 2.1 - Warning/Cautions/Note Definitions 2.2 - Safety Precautions Diagram of Chair 3.1 - Side View of Stairlift Operation Details 4.1 - Folding The EZ Lite Evacuation Chair For Storage or Transportation Care and Cleaning Instructions Maintenance Troubleshooting FAQs Warranty 10.0...
-
Page 4: Indications For Use
CAUTION Improper usage of this device can cause injury to the rider or operator. The EZ Lite Evacuation Chair must only be operated as described in this manual. Do not modify the EZ Lite Evacuation Chair or any of its components unless you are a Certified Mobile Stairlift Technician, as modifications can result in unpredictable performance and result in injury to the rider or operator. -
Page 5: Unpacking The Device
The operator must read this manual and be properly trained on this product before use. The operator must practice with the Stairlift EZ Lite Evacuation Chair alone before using it to transport a rider. 1.3 Disclaimer This user manual contains general instructions and guidelines for the use, operation, and care of this product. - Page 6 NOTE: This provides special information to make maintenance easier or important instructions clearer. EZ LITE EVACUATION CHAIR...
-
Page 7: Safety Precautions

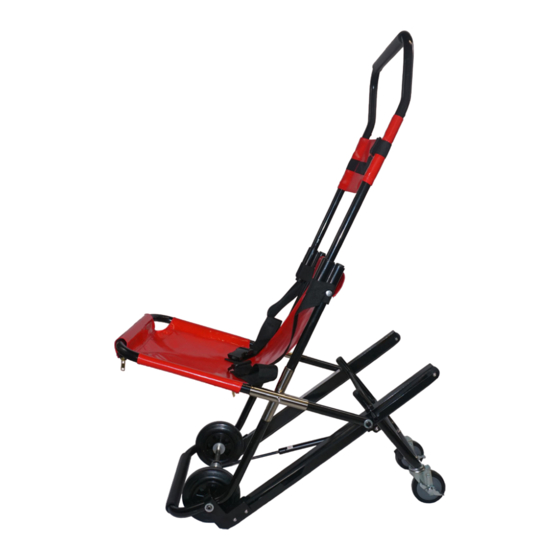

Avoid getting dirt inside the tracks. Do not attach any additional items to this chair unless certified by Mobile Stairlift. The EZ Lite Evacuation Chair may not work the same on all stair surfaces and in all environments and conditions. - Page 8 3.0 Diagram of Chair Handlebar Headrest / Restraint Seatbelt Removable Seat Footrest EZ LITE EVACUATION CHAIR...
- Page 9 3.1 Side View of Mobile Stairlift EZ Lite Evacuation Chair Handlebar Lock Track Locks Tracks Wheel Locks Front Handles Back Wheels Front Wheels WHEEL LOCKS ANTI SLIP RUBBER TRACKS Foot brakes are located behind the two back Tension controlled tracks make controlled wheels.
-
Page 10: Operation Details
4.0 Operation Details NOTE: It is recommended that the operator begin training by practicing using the EZ Lite Evacuation Chair without a rider. This will help them get familiarized with the working mechanisms of the EZ Lite Evacuation Chair and how to safely move on flat surfaces, as well as how to descend staircases with a rider. - Page 11 STEP 5 Fasten the seatbelt around the patient. STEP 6 OPTIONAL: Fasten the adjustable safety strap located on the headrest around the rider’s forehead. This is especially recommended if the rider is unable to support their head. EZ LITE EVACUATION CHAIR...
- Page 12 Chair until the front wheels are a few inches from the top stair STEP 8 Holding the handlebar firmly with both hands, tilt the EZ Lite Evacuation Chair backwards onto its rear wheels while pushing the bottom of the chair forward with your foot.
- Page 13 STEP 10 When you reach the bottom of the stairs and are on level ground, tilt the EZ Lite Evac- uation Chair into the upright position and roll the chair to the desired location. STEP 11 When you reach the bottom of the stairs and are on level ground, unhook the rear wheels, and roll the chair to the desired location.
- Page 14 STEP 2 Press in on the handle locks on either side of the handlebar. STEP 3 While the handle locks are pressed in, slide the handle bar down as far as it will go. EZ LITE EVACUATION CHAIR...
-
Page 15: Care And Cleaning Instructions
To clean the track casing, use SD-20 All Purpose Cleaner and a cloth to remove any grease or other substance. • Thoroughly dry before use. • In a medical setting, we recommend you disinfect the chair between riders with basic disinfectant for patient and operator safety. EZ LITE EVACUATION CHAIR... -
Page 16: Maintenance
Will this work on carpeted stairs? How about Wood, Cement, etc.? Yes, the EZ Lite Evacuation Chair is made to work on all surfaces. On carpeted stairs, the carpet must be fully attached to the stairs. It will not work with unattached carpets: the tracks will not be able to grip properly and may slip during use. -
Page 17: Warranty
For further information regarding this limited warranty, please contact Climbing Steps, Inc by calling (212) 366-5483, emailing at Info@ClimbingSteps.com, or writing Climbing Steps, Inc at the following address: Climbing Steps Inc. Attn Mobile Stairlift Warranty Department 1661 N. Dixie Highway Pompano Beach, DL 33060... -
Page 18: Device Label
10.0 Device Label EZ LITE EVACUATION CHAIR Indications for Use: The Mobile Stairlift EZ Lite Stairlift is a manual transport device. The Stairlift transports the body in a seated, upright position down a set of stairs. The chair holds adult, adolescent, or child occupants who can remain seated and secured in the chair. - Page 19 Mobile Stair Lift Web: www.mobilestairlift.com 1661 N. Dixie Highway, Bay 12, Pompano Beach, FL 33060 Phone: +1 (212) 366-5483 Scan with your smartphone camera to view the Mobile Stairlift EZ Lite Evacuation Chair Information and Product Video or visit MobileStairLift.com/EZLite...
- Page 20 EZ LITE EVACUATION CHAIR WWW.MOBILESTAIRLIFT.COM...
