- Page 1 L I T E L I T E LI TE MOBILESTAIRLIFT.COM...
- Page 2 2.2 - Safety Precautions 3.0 Warranty 4.0 Stairlift Features 5.0 Technical Specifications 6.0 Diagram of the Mobile Stairlift Lite 6.1 - Specific Parts of the Stairlift 6.2 - Side View of the Stairlift 6.3 - Control Panel & Handlebar Extension Knob 7.0 Stairlift Battery...
-
Page 3: Indications For Use
B09TG5VKNM 1.0 Introduction Thank you for purchasing the Mobile Stairlift Lite! We aim to provide the safest and most adaptable mobility equipment on the market. Please read this manual in its entirety before operating or maintaining this product. To ensure safe use, all operators of this device should be properly trained. -
Page 4: Unpacking The Device
General Description / Intended Use The Mobile Stairlift Lite is intended as a transport device for a human occupant in a seated position to be taken up or down stairs. The occupant should be secured in the chair by restraints for their safety. - Page 5 2.0-2.1 L I T E L I T E 2.0-2.1 Symbols and Definitions Used in this Manual Consult instructions for use. General Warning of any possible damages, bodily injury or even death resulting from incorrect use or carelessness. (See Section 2.1 for more information) Caution to alert reader to hazardous situations and if instructions are not properly followed could result in minor or moderate injury to the user or...
-
Page 6: Safety Precautions
Safety Precautions WARNING Read this entire user manual before using the Mobile Stairlift Lite, and use the Stairlift only as described in this manual. Always make sure that the stairlift is locked in the unfolded position before use. -
Page 7: Warranty
Use only parts that are specifically made for this stairlift. If replacement parts are needed, please consult page 22 and contact Mobile Stairlift for assistance. Maintain and operate the stairlift only as described in this manual. -
Page 8: Technical Specifications

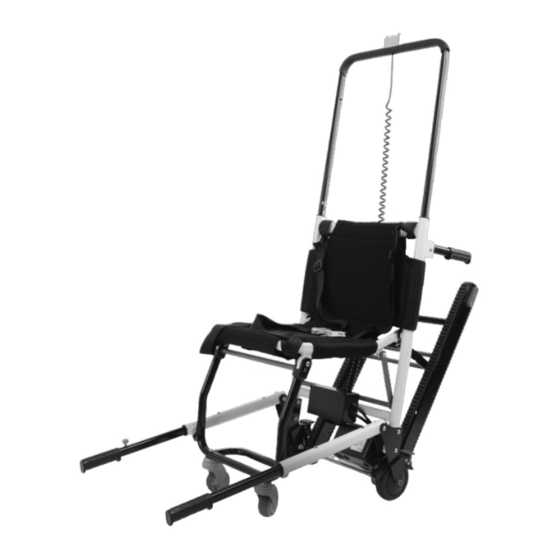

L I T E L I T E • The Mobile Stairlift Lite is equipped with a 4 point safety belt to secure the rider in an upright position during transportation. • The Mobile Stairlift Lite is made of high-strength aluminum alloy materials. - Page 9 L I T E L I T E 6.0 Diagram of the Mobile Stairlift Lite Control Panel Handlebar 4 Point Safety Belt Handles Replaceable Seat Tracks Fold/Unfold Lever Control Box Foot Rest Motor Extendable Handles Battery Front Wheels...
- Page 10 6.1-6.2 L I T E L I T E 6.1 Specific Parts of the Stairlift SAFER FOOTBRAKE DESIGN REINFORCING RIB & ANTI-SLIDE TREADS: Footbrakes are located behind Thick rubber and the two back an inner reinforcing wheels. When at rib make the treads rest, please engage last longer, and the anti-slide ribs make...
- Page 11 6.3-7.0 L I T E L I T E 6.3 Stairlift Control Panel & Handlebar Extension Knob switch is used to turn the stairlift on or o . Please note that when the switch is on, the battery is being used. GREEN button rotates the tracks to move the stairlift up the stairs.
-
Page 12: Battery Indicator
The Mobile Stairlift Lite charger consists of a power supply, a two pronged plug, and an adapter plug specially designed to fit the Mobile Stairlift Lite battery. - Page 13 7.2-7.3 L I T E L I T E NOTE: The battery can also be removed for charging or replacement. To remove the battery, first press the large white button on the opposite side of the battery from the indicator lights. Then while holding the button, pull the battery towards the center of the chair to slide it out of its housing.
-
Page 14: Operation Details
L I T E L I T E 8.0 Operation Details NOTE: It is recommended that the operator begin training by practicing using the stairlift without a rider. This will help the operator familiarize themselves with the working mechanisms of the stairlift and how to safely ascend and descend staircases with a rider. - Page 15 L I T E L I T E 8.1 Unfolding The Stairlift Hold the stairlift in a folded and upright position. Hold the seat against the handlebar, and Push the red bar STEP 1 located beneath the seat down, and pull the seat forward and out until you feel the seat lock into place and the front wheels are resting on the ground.
- Page 16 8.1-8.2 L I T E L I T E If a spotter will be helping the main Rotate the red knob and pull the STEP 4 STEP 5 handlebar up until it locks into place. operator, which is recommended, extend the front handlebars by pressing the red button on the top of each handlebar, and pulling forward.
- Page 17 L I T E L I T E Fold in the tracks by pressing the red Fold the handles down STEP 3 STEP 4 track handle towards the arrow, and pushing down and in. Once the seat locks into place, the Reach under the seat and press STEP 5 STEP 6...
- Page 18 L I T E L I T E 8.3 Ascending a Staircase With The Stairlift Move the rider onto the stairlift seat and secure them with STEP 1 the four-point safety belts. STEP 2 Lock the back wheels. (See Section 8.1, STEP 2) STEP 3 Extend the tracks.
- Page 19 L I T E L I T E STEP 8 When you reach the top landing of the staircase, continue moving the stairlift well onto the flat surface while balancing the chair in a tilted position on the track edges while pressing GREEN button, until the front wheels have completely cleared the edge of the...
- Page 20 L I T E L I T E 8.4 Desceonding a Staircase with The Stairlift STEP 1 Move the rider onto the stairlift’s seat and secure them the safety belts. Roll the Stairlift towards the stairs feet-first, STEP 2 making sure to stop well before the front wheels reach the stairs.
- Page 21 L I T E L I T E STEP 6 YELLOW Grip the handlebar firmly and use the button (See Section 6.3) to move the chair forward and down the stairs. Hold the chair balanced at the same angle from the previous step until you have descended 2-3 stairs, at which point the treads will make contact flush against the stairs.
-
Page 22: Proper Disposal
10.0 Replacement Parts To obtain parts and service contact Mobile StairLift information in the front of this manual. Please contact a Mobile Stairlift representative for prior approval before returning this product. -
Page 23: Monthly Maintenance Checklist
12. Monthly Maintenance Checklist In order to keep the Mobile Stairlift Lite in good condition and maximize its service life, it is important to make sure that its components are well maintained. In general, keep the equipment as clean as possible, as well the cushion. - Page 24 9.0-10.0 L I T E L I T E Track bearings should be lubricated with machine oil every 90 days (Or more, if average monthly use is exceeded). The rubber tracks must be kept away from any water or grease. To reach the track bearings, oil must be applied to the area where the axle and the track gears meet, indicated by the black...
-
Page 25: Device Label
The Mobile Stairlift Lite is for use in a hospital and emergency medical situations involving ambulation assistance up or down stairs. The front and rear wheels also allow the Indications for Use: The Mobile Stairlift Helix is a manual transport device. - Page 26 4. Comfortability - This is the only "Car-To-Bed" solution on the market: with the Mobile Stairlift, the rider can get in the chair at the car and be carried upstairs and all the way to bed without unbuckling the safety belt. There's no sitting down getting up, sitting down getting up at every turn of the way.
- Page 27 So the Stairlift will work on cement, wood, iron and all types of stair surfaces, but what about di erent shaped staircases, like round staircases? The Mobile Stairlift does not work on round staircases. We are currently working on a special model that will work on round staircases as well.
- Page 28 For further information regarding this limited warranty, please contact Climbing Steps, Inc by calling (212) 366-5483, emailing at Info@ClimbingSteps.com, or writing Climbing Steps, Inc. at the following address: Climbing Steps Inc. Attn Mobile Stairlift Warranty Department 1661 N. Dixie Highway Pompano Beach, FL 33060...
- Page 29 M A I N T EN A NCE SC H E DUL E DATE: ISSUES: SIGNED OFF BY:...
- Page 30 INDEX L IT E MOBILESTAIRLIFT.COM...
