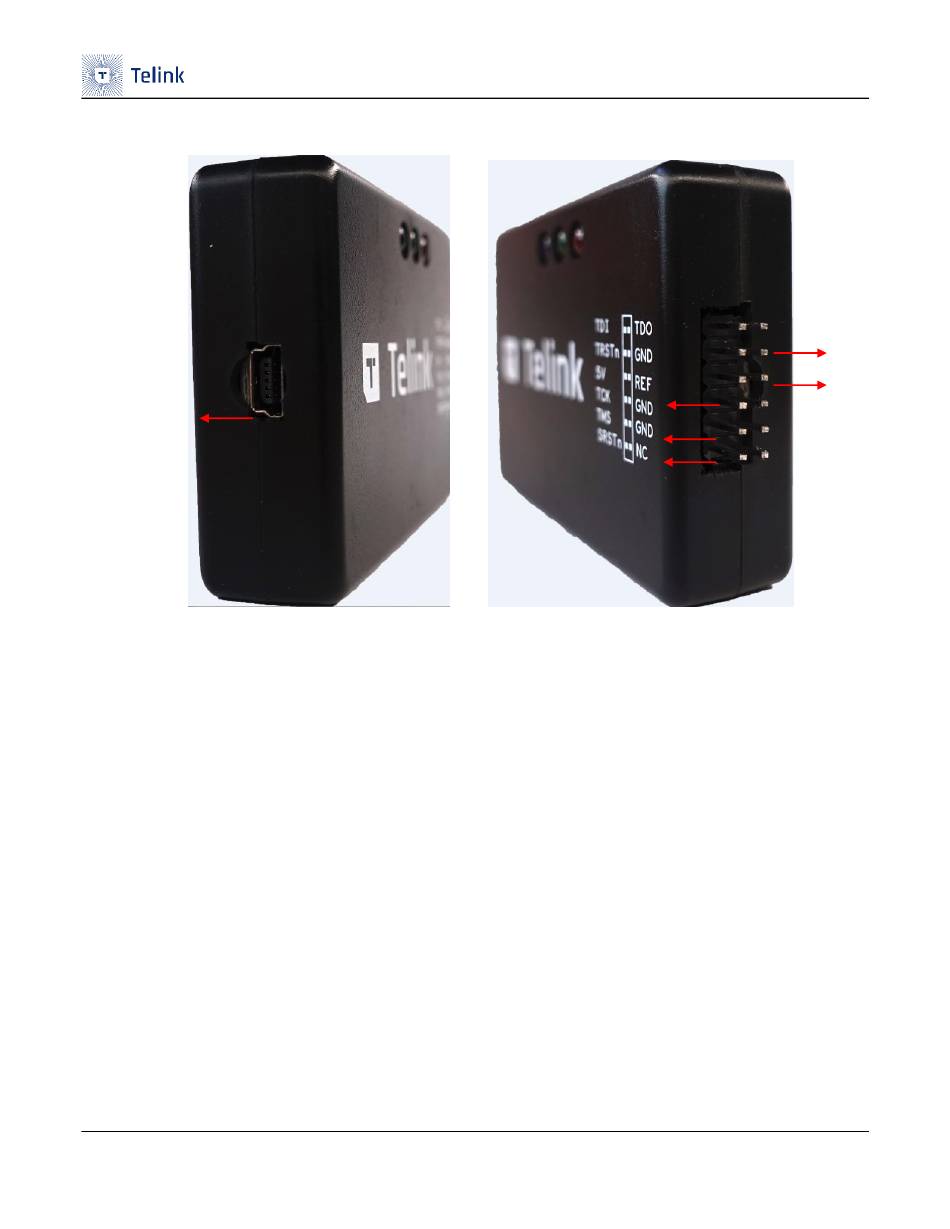

Figure 2-3 Connection chart 2 to download FW into DUT via TLSR9_DEV_KEY
Mini-USB interface
Connect to PC USB via USB cable
AN-20200731-E1
Connect to 5V of DUT
Connect to TCK of DUT
Connect to TMS of
DUT
8
User Guide for TLSR9_DEV_KEY
Pin header
GND
Connect to GND of
REF
DUT
5V
Connect to 3V3 of DUT
TCK
TMS
Ver.0.1.0
