1. Brief Introduction
This document presents guide on how to use TLSR9_DEV_KEY as an adapter to download firmware into
target board (DUT).
Mini-USB interface
AN-20200731-E1

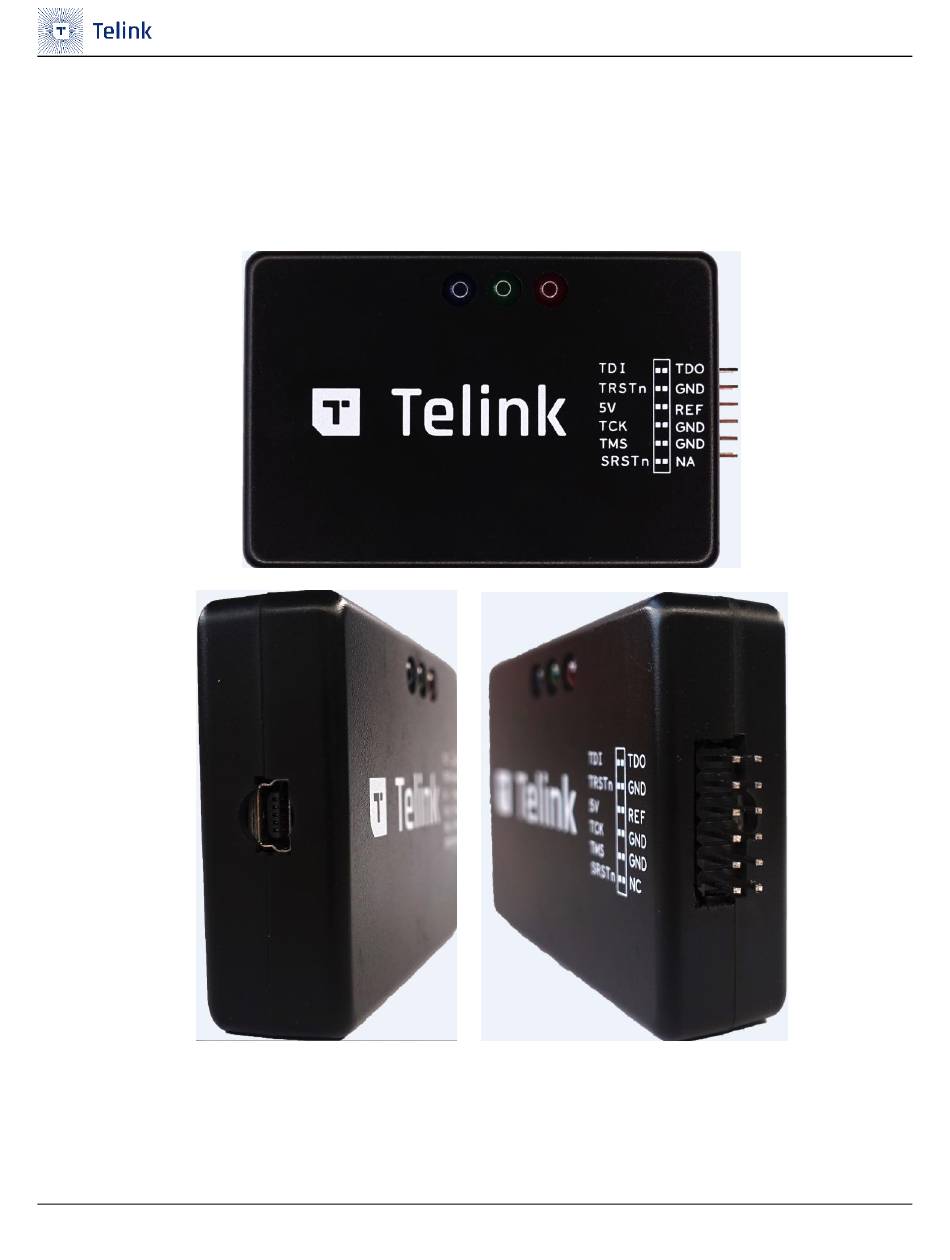

Figure 1-1 TLSR9_DEV_KEY photo
LED
5
User Guide for TLSR9_DEV_KEY
Pin header
TDO
TDI
TRSTn
GND
REF
5V
GND
TCK
GND
TMS
NC
SRSTn
Ver.0.1.0
