- Page 1 Telink Semiconductor TLSR9518A Generic Starter Kit Hardware Guide 2020-08 Telink Confidential...
-
Page 2: General Description
General description General description The guide introduces how to get started with the Kit.TLSR9518A Generic Starter Kit is a hardware platform which can be used to verify TLSR9x series chipset and develop 2.4G protocol application. Telink Confidential... -
Page 3: Material List

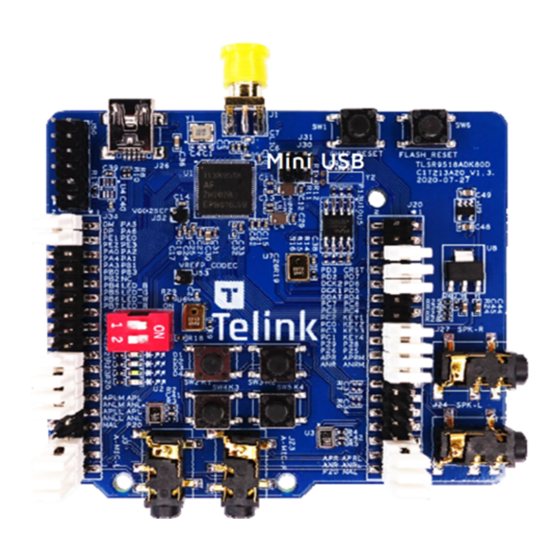

Material list The ordering name of TLSR9518A Generic Starter Kit is TLSR9518ADK80D-KIT. Main materials in the kit are listed here. 1x TLSR9518ADK80D - A 1x TLSR9 DEV KEY, including DuPont wires - B 1x Telink Burning Board, including DuPont wires - C 1x USB cable -D 1x audio cable, 3.5mm female jack to 2 male 3.5mm audio plug -E... - Page 4 Material list (Cont.) Mini USB Telink Confidential...
- Page 5 External Flash with reset button Chip reset button Mini USB interface 2-wire JTAG, default. 4 led, Key matrix up to 4 keys 2 line-in function (Dual Analog microphone supported when switching jumper from microphone path) Dual Digital microphone Stereo line-out Telink Confidential...
- Page 6 Overview(Cont.) RF SMA CHIP RST FLASH RST JTAG TLSR9518A FLASH DMIC KEY MATRIX AMIC AMIC L/R Line‐in Telink Confidential...
- Page 7 Power connection method with Telink Burning Board TLSR9518A supports a easy debug method. Only three wires are needed. 5V from Telink Burning Board is connected to VBUS from TLSR9518ADK80D. SWM from Telink Burning Board is connected to SWS form TLSR9518ADK80D.
- Page 8 The 2x6 connector on the left of mini USB interface is JTAG interface. At the beginning, user connect TLSR9 DEV KEY to the JTAG interface using DuPont wires one by one. Then, user can use Telink IDE tool to download FW. Right now, please check if DIP button is under the right setting.
- Page 9 RF test Power on firstly, then connect RF SMA through cable to equipment or through whip antenna when verifying chipset or develop function. The corresponding tool is EMI tool which can be gotten from wiki. RF Conducted test RF Radiated test Telink Confidential...
- Page 10 Dual analog microphone function Dual analog microphone function is enable when following the jumper setting as below. Telink Confidential...
- Page 11 Dual analog microphone function is enable under default setting. When testing audio input path, please change jumper setting as below, the others which are not showed are kept in their original position. Some audio analyzer can be used for testing, such as APx525. Telink Confidential...
- Page 12 Audio output path test All jumpers are kept in default setting, and the connection of audio output path is as below. Some audio analyzer can be used for testing, such as APx525. SPK‐R SPK‐L Telink Confidential...
- Page 13 Audio input/output path demo Sometimes, user wants to listen to music directly in development stage. Then, the connection is as below. Earphone Audio Source Telink Confidential...
- Page 14 GPIO test All of GPIOs of TLSR9518A have been connected to PINs. Then user can ready corresponding schematic and test all GPIOs. Telink Confidential...
- Page 15 FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
