STRANDS 850208 Manual

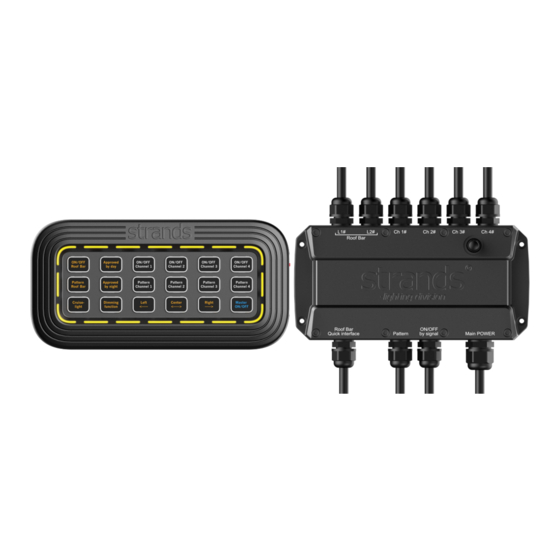

CRUISE LIGHT RELAY BOX AND WIRELESS CONTROLLER

FUNCTION DESCRIPTION - WIRELESS CONTROLLER

Power: USB-C (for fixed installation) or 4x AAA (wireless).
9 buttons by Amber, 8 buttons by White, 1 button by Blue.
ON/OFF
Wireless controller ON/OFF switch on right side of controller.
ON/OFF ROOF BAR
Separate ON/OFF button for Roof bar`s.
PATTERN ROOF BAR
PATTERN select button.
CRUISE LIGHT
Cruise mode(steady-on).
APPROVED BY DAY
BY DAY approved mode (higher intensity).
APPROVED BY NIGHT
BY NIGHT approved mode (lower intensity).
DIMMING FUNCTION
When in used, the DIMMING is active on a specific flash
pattern. However, by day/by night/cruise, these patterns can't
be controlled by DIMMING.
Part no. 850208
Contact us if you need support: support@strands.se or +46(0)320-450450
MANUAL
LEFT, CENTER, RIGHT
These buttons are used for traffic advising, flashing from right to left,
from centre and out, and left to right.
Roof bar pattern will be shown on the surrounding LED´s on the wireless
control, and for most of the functions, there will be a button backlight
on the active functions.
CHANNEL 1 - CHANNEL 4 ON/OFF
Separate ON/OFF button for each channel's power out.
CHANNEL 1 - CHANNEL 4 PATTERN
Separate PATTERN select button for each channel.
MASTER ON/OFF
When turned "OFF", all the lights will be turned off. When turned "ON",
all the lights will return to the same status before turning off (memory
function). Pressing 3 seconds will turn on all channels.
WHEN NOT IN USE
The surrounding LED´s will turn off after 10 seconds.
After 15 seconds also the button backlights will be off.
