STRANDS 850208 Manual

CRUISE LIGHT RELAY BOX AND WIRELESS CONTROLLER

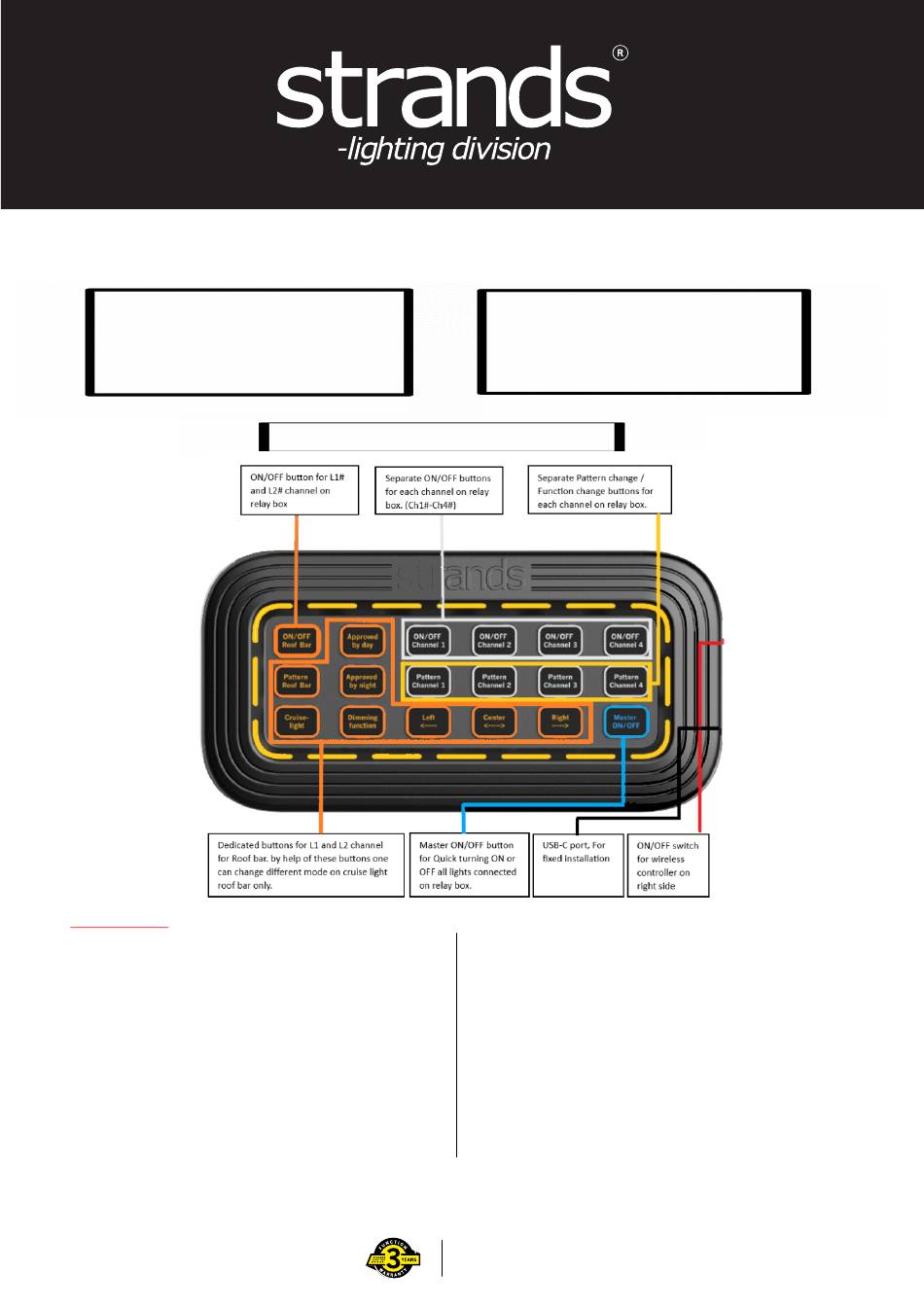

FUNCTION DESCRIPTION - WIRELESS CONTROLLER
Power: Use USB-C (for fixed installation) or 4x AAA
(wireless),Buttons on controller:9 buttons by Amber, 8
buttons by White, 1 button by Blue/Red.
ON/OFF SWITCH
Wireless controller's on/off switch is located on the right side.If
you're using the controller with 4 AAA batteries, to save battery life,
power it off when not in use.When connected via USB-C, no need to
use this red switch.
ON/OFF ROOF BAR
Separate ON/OFF button for Roof bar`s. ( Cruise light roof bar part
nr. 850214-850221).
PATTERN ROOF BAR
PATTERN Select/Toggle button to choose next pattern mode for
roof bar's
APPROVED BY DAY
BY DAY approved mode (higher intensity).
APPROVED BY NIGHT
BY NIGHT approved mode (lower intensity).
DIMMING FUNCTION
When in used, the DIMMING is active on a specific flash pattern.
however, by day/by night/cruise, these patterns can't be controlled
by dimming.
Part no. 850208
MANUAL
FUNCTION DESCRIPTION - RELAY BOX
Channels: 6, Total 700W.
2 channels (L1#, L2#)x 150W (15A) each intended for
Cruise Light Roof bar(850214-850221).
4 channels(Ch1#-Ch4#) x 100W(10A) each for any type
of lighting.
*Read entire instruction manual before installation.
WIRELESS CONTROLLER
CRUISE LIGHT
Cruise mode(steady-on).
LEFT, CENTER, RIGHT
These buttons are used for traffic advising, flashing from right to left,
from centre and out, and left to right.
*Roof bar pattern will be shown on the surrounding LED´s on the
wireless control, and for most of the functions, there will be a button
backlight on the active functions.
CHANNEL 1 - CHANNEL 4 ON/OFF
Separate ON/OFF button for each channel's power out.
CHANNEL 1 - CHANNEL 4 PATTERN
Each channel has a dedicated pattern select button.If the light has
different modes rather than warning patterns, then this button controls
the light's mode/intensity. Lights without patterns won't require using
this button.
MASTER ON/OFF
When turned "OFF", all the lights will be turned off. When turned "ON",
all the lights will return to the same status before turning off (memory
function). Pressing 3 seconds will turn on all channels.This button has
function that when battery pertancegate is low it will show red color.
