- Page 1 Alpha Antenna Model ‐ ProMaster Sr 6‐160 Meters 1.5 KW USER GUIDE V1.3 May 29, 2014 Page 1...

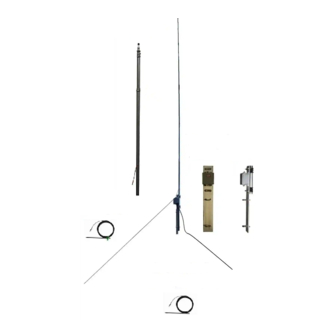

- Page 2 Thank you for purchasing the Alpha ProMaster Sr Antenna, a complete 6-160 Meter 1.5KW base antenna system. The ProMaster Sr is a base camp antenna that brings you multi-band 24x7x365 base system performance into an extremely small footprint. All you need is an area that's 15 feet x 15 feet to optimally deploy the antenna or minimally 15 feet by 8 feet to deploy it in a smaller area.
- Page 3 Installation Safety WARNING: INSTALLATION OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS! FOR YOUR SAFETY, FOLLOW THE ENCLOSED INSTALLATION DIRECTIONS. THOUGH THIS ANTENNA IS CONSTRUCTED OF INSULATED WIRE, PROPER CARE MUST BE TAKEN DURING INSTALLATION. INSTALLER ASSUMES ALL LIABILITY FOR PROPERTY AND LIFE SAFETY. YOU, YOUR ANTENNA, AND SAFETY Each year, hundreds of people are killed, mutilated, or receive severe and permanent injuries when attempting to install an antenna.
- Page 4 Antenna Installation Image 1 Step 1 – Prepare your installation with a) roof mount tripod, b) 10 foot galvanized fence post placed 3-4 feet in ground, or c) tripod from AmateurRadioStore.com Step 2 – Lay the 6 tapered vertical antenna elements end to end flat on the ground.
- Page 5 Image 2 Follow Steps 3 and 4 per the Above Image 2 Step 3 – Place aluminum plate hardware on item in Step 1 & tighten the U-Bolts Step 4 – Use included rubber offsets between vertical element & mounting plate. Page 5...
- Page 6 Image 3 Follow Steps 5 and 6 per the Above Image 3 Step 5 – Attach wire/o-ring on vertical element to top bolt on Alpha Match Step 6 – a) Drive included stakes into ground or b) with the exception of the stake on the ground wire attached to the bottom of the Alpha Match, remove the 4 radiating element’s stakes from their wires to insert a rope in the green insulators to secure all wires.
- Page 7 SWR Performance SWRs are with the ProMaster Sr mounted at 6 ½ feet on 20 feet of RG-8x coax. Your SWRs may vary depending upon antenna location & variances in coax. A choke coil at the antenna lowers SWRs on the lower (nighttime) bands, while no choke lower SWRs on the higher (daytime) bands.
- Page 8 Have Other Questions? If you have questions about your antenna, please feel free to contact us. Support Email: support@alphaantenna.com Phone: 1‐888‐482‐3249 WEB: www.alphaantenna.com Page 8...
- Page 9 NOTES Page 9...
- Page 10 Copyright Alpha Antenna http://www.AlphaAntenna.com Page 10...
