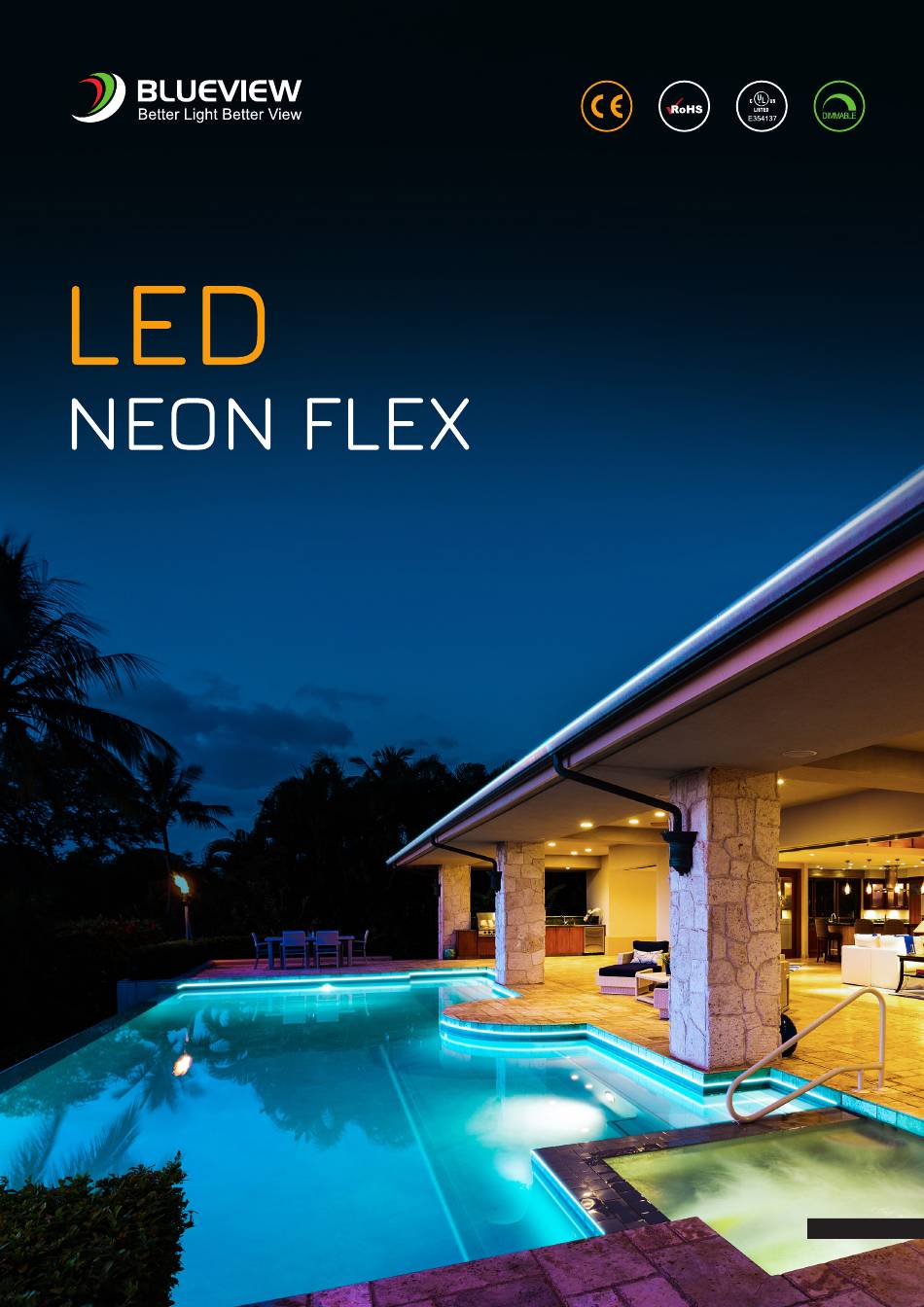

- Page 1 NDF1005 Version: A1.7...
- Page 2 DC 24V IP67 3Years 5Years 115° Optical & Electrical Parameters Model No. Voltage Color Lm/m Lm/W Rated Power (W/m) NDF1005-Single color 24V DC >90 2200K 2700K 3000K 3300K 3900K 5000K 6000K NDF1005-Single color 24V DC Green Blue...
- Page 3 NEON FLEX NDF1005 Bend direction Bending Diameter 30.0 [1.18] Sectional view Front cap Closing End-cap Glue Process (IP67) Glue Process (IP67) 15.0 [0.59] 12.0 [0.47] 10.0 [0.39] Notes: IP67: Suitable for wet environment, can be soaked for a short time, the depth ≤ 1m, the time ≤ 1h. (factory assembly only) Within 5m, the strip can be customized according to the integer multiple of the Min.
- Page 4 Products and Tools Cutter LED power supply Electric drill Electric iron Product accessories Item: Front cap Item: Closing End-cap Model No.: ASY-NDF1005-N00NNX-EC Model No.: ASY-NDF1005-N00NNH-EC Dimensions L*W*H: 11.0*12.7*6.6mm Dimensions L*W*H: 25.0*12.7*7.6mm Quantity (5m): 4pcs Quantity (5m): 4pcs Free/Optional: Free Free/Optional: Free...
- Page 5 NEON FLEX NDF1005 Accessories diagram Name L(mm) W(mm) Type PC clip Optional PC channel 1000 Customized Note: 1. All accessories can be added according to customer requirements; 2. If customers want to process molded caps by themselves, they should use the corresponding molds and molding equipment;...
- Page 6 NEON FLEX NDF1005 Aluminum track installation Screw the aluminum track to the Press the strip into the aluminum track Finished installation position. Notes: At the welding place, please pay attention to the positive and negative poles of the wire and the strip;...
- Page 7 NEON FLEX NDF1005 Reliability test Project Reference standards Category Test conditions Outcome Temperature cycling test TH=60°C/4h,TA=20°C/1h,TL=-40°C continuous cycle and power on Environmental test Blueview standard High temperature resistance test Simulated TH=60 °C, continuous power on Room temperature aging test TA=25°C, continuous power on...
- Page 8 This product is subject to change without notice. Recycling LED lighting products belongs to electronic products, please do recycling treatment according to the relevant WEEE directives. BLUEVIEW ELEC-OPTIC TECH CO.,LTD □ Tel: +86-28-8148 0011 □ Web.: www.blueviewled.com □ Add.: No. 1000, Section 2, Konggang 2nd Road, Shuangliu, Chengdu 610207, Sichuan, CHINA □...
