Features
Flexible PCB with 2835 SMD LED technology
Bendable and cuttable every 50/62.5mm[1.99/2.46in]
Small size to satisfy different requirements
Dot-free linear neon-like illumination
Fabricated with Eco-friendly, weather-resistant silicone material
Colors in white, yellow, green, blue and red for options
IP67 perfect for outdoor use
Application
landscape lighting and decorating lighting etc.
Installation
By clips
IP68
3years
12/24V
see table
Bending diameter：
Unit:mm
Light
Surface
Light Surface
Base
01
LED SILICONE NEON FLEX
NS2-10
Note: constant current for NS2-10.
Advertisement
Table of Contents
Related Manuals for Blueview LED SILICONE NEON FLEX
Summary of Contents for Blueview LED SILICONE NEON FLEX

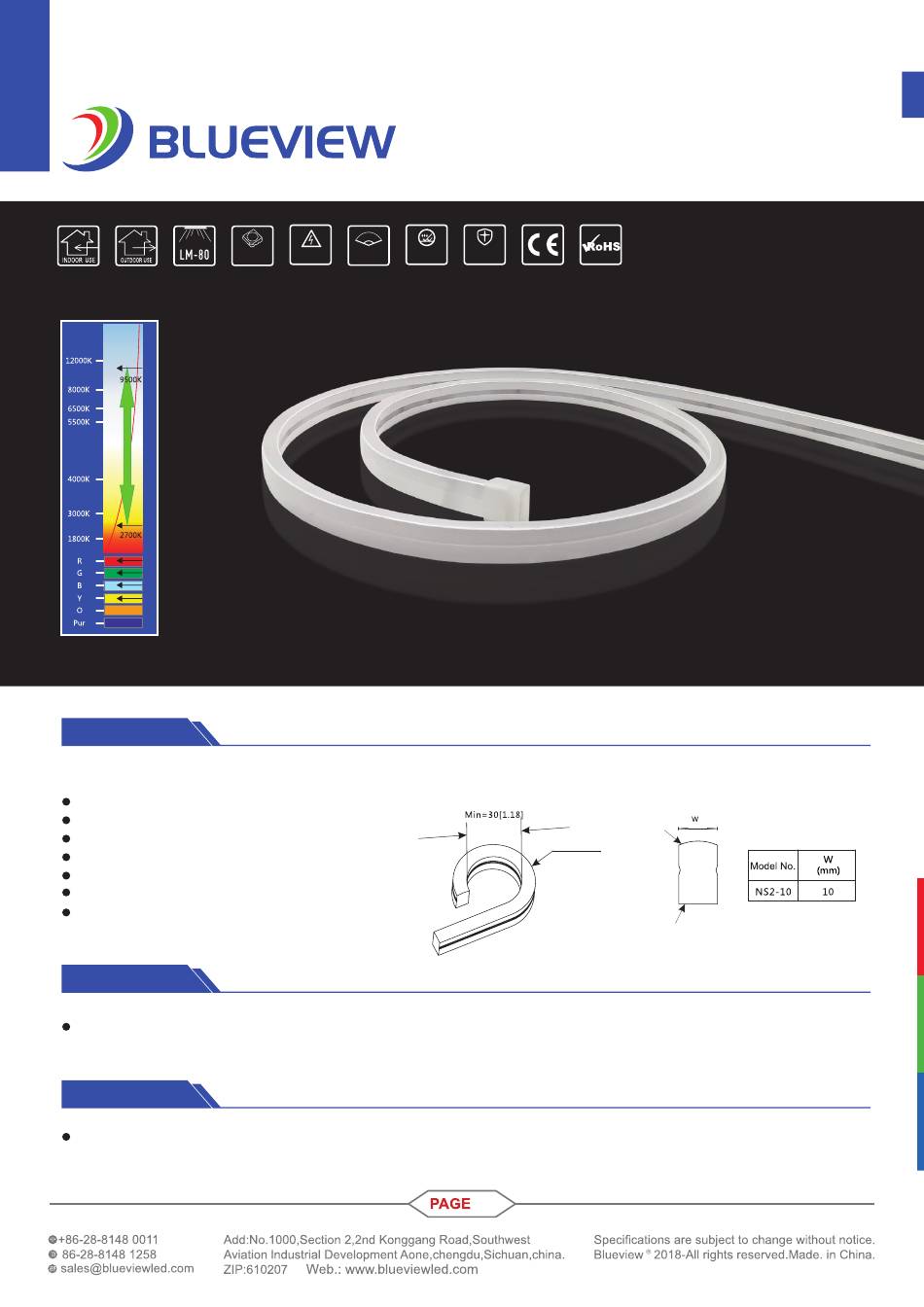

- Page 1 LED SILICONE NEON FLEX NS2-10 IP68 3years 2835 12/24V see table Features Bending diameter： Unit:mm Flexible PCB with 2835 SMD LED technology Bendable and cuttable every 50/62.5mm[1.99/2.46in] Light Small size to satisfy different requirements Surface Light Surface Dot-free linear neon-like illumination...
-
Page 2: Other Parameters
LED SILICONE NEON FLEX NS2-10 Optical & Electrical Parameters Color Temperature/ Voltage Luminous Efficacy Power Model No. Light Color Beam Angle Flux(lm/m) (lm/w) (DC V) (W/m) Wavelength(K/nm) 2900-25000 28.9 620-625nm 12.2 520-525nm 24.1 NS2-10 137° 465-470nm 14.9 587-589.5nm 24.0 600-605nm 10.8... - Page 3 LED SILICONE NEON FLEX NS2-10 Working Length vs. Recommended Power Supply Working Rated Rated Rated Power Power Recommended Power Model No. Supply Mode Length(m) Current(A) Voltage(DC V) Supply Configuration(W) 0.32 7.68 ≥10 Single Feed 38.4 ≥50 Single Feed 76.8 ≥96...
- Page 4 LED SILICONE NEON FLEX NS2-10 Luminous Intensity Distribution Diagram Unit：cd NS2-10 C0 /180,137.6° AVERAGE BEAM ANGLE(50%)：137.3° C90/270,137.0° Average Illumination Flux Out：183.9lm Height Eavg，Emax Beam Angle：137.0° Diameter...
-
Page 5: Product Accessories
LED SILICONE NEON FLEX NS2-10 Product accessories End cap with hole End cap without hole Plastic mounting clip Metal mounting clip Aluminum profile (FREE) (FREE) (FREE) (OPTIONAL) (OPTIONAL) Quantity(15m):3pcs Quantity(15m):3pcs Quantity(15m):30pcs Quantity(15m):30pcs Quantity(15m):30pcs Quantity(30m):6pcs Quantity(30m):6pcs Quantity(30m):60pcs Quantity(30m):60pcs Quantity(30m):60pcs Note: more accessories can be provided according to customer requirements All accessories will be different depending on the product, please correspond the accessory list to the product or reference purchase code. -
Page 6: Installation
LED SILICONE NEON FLEX NS2-10 Installation 1.Tools Cutter LED power supply Electric batch Brush 2.Installation steps Details of installation operation at input end Solder the wire to the PCB First put waterproof glue Wipe off the excess glue and board... - Page 7 LED SILICONE NEON FLEX NS2-10 Note: At welding part, note the positive and negative poles of lines and board and the corresponding colors on the board; positive to positive and negative to negative Each connection point must use 10g silica gel, and treat waterproof and insulation well;...
- Page 8 LED SILICONE NEON FLEX NS2-10 Attentions Before installation, check that the product parameters are consistent with the requirements (Seeing product specifications or product labels) Load voltage, current, power and power supply should be matched with the product. Follow the instructions of wiring diagram (first connect the product and then the power supply) to avoid short circuit.
- Page 9 LED SILICONE NEON FLEX NS2-10 Warning Do not disassemble or retrofit the light. Do not touch the surface of the light with a sharp object. Do not do live-line working during installation,especially for high voltage product. Do not use any organic chemical solvents.
