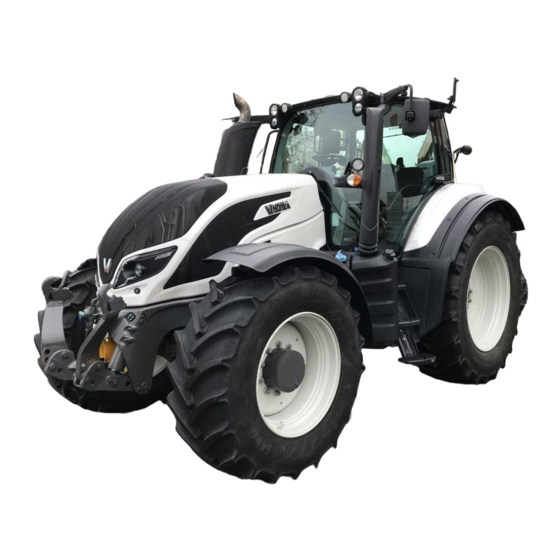

OPERATOR'S MANUAL
T SERIES
HiTech
Ref no 39 891 21 3 ( 08/2015 )
YOUR
WORKING
MACHINE

Advertisement

loading
Need help?

Need help?

Do you have a question about the HiTech T Series and is the answer not in the manual?

Questions and answers

Related Manuals for Valtra HiTech T Series

Summary of Contents for Valtra HiTech T Series

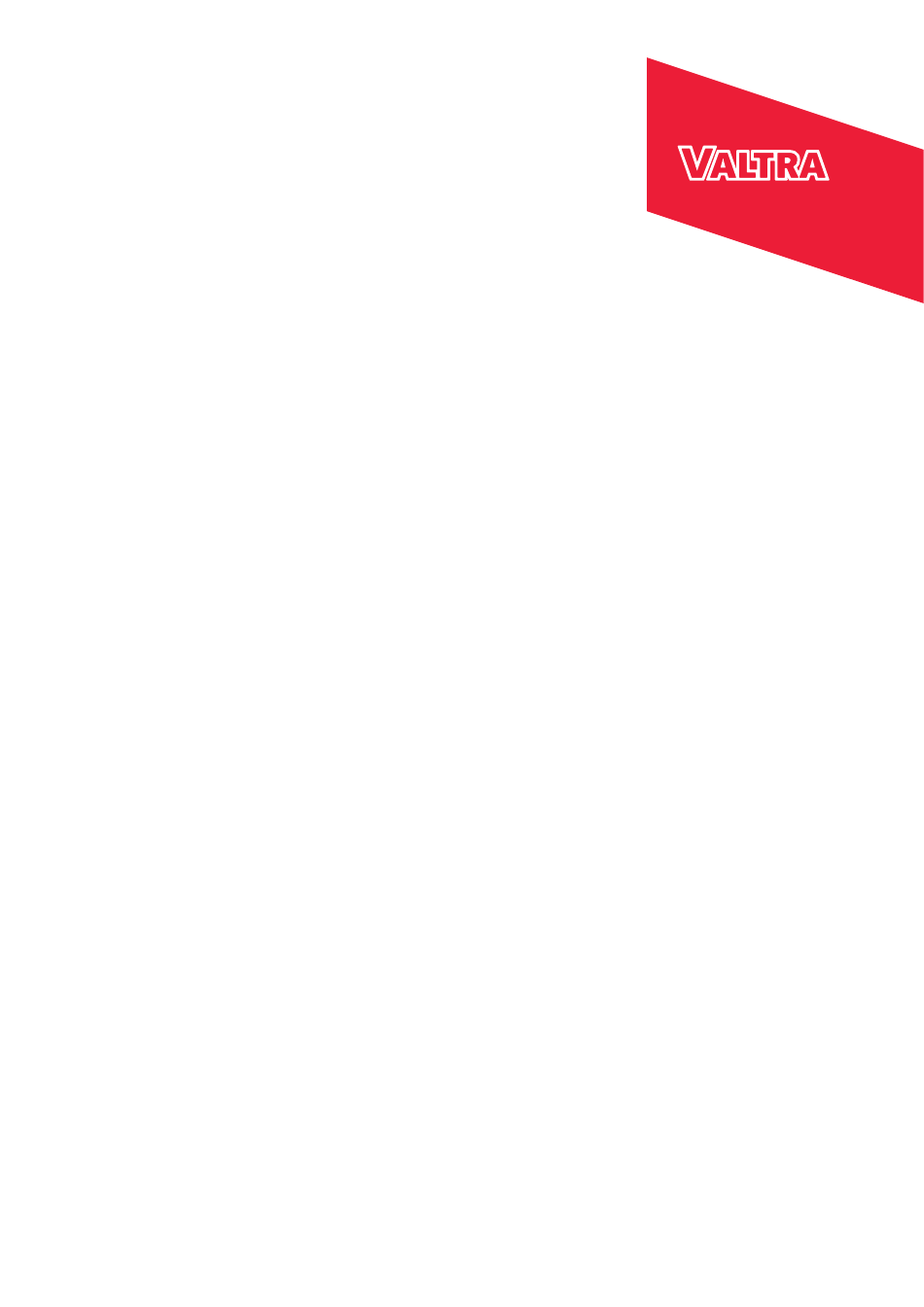

  • Page 1 OPERATOR'S MANUAL T SERIES HiTech YOUR WORKING MACHINE Ref no 39 891 21 3 ( 08/2015 )
  • Page 2 Find manuals at https://best-manuals.com...
  • Page 3 About this manual This operator's manual is for the Valtra T Series HiTech tractors. The T Series HiTech models are T144 H, T154 H, T174e H, T194 H, T214 H and T234 H. The manual is meant for agricultural tractors only. If the tractor is used for other applications, it is the owner's responsibility to ensure compliance with local regulations.
  • Page 4 Tractor serial numbers When ordering spare parts or service, give the model indication and serial numbers and, in some cases, the engine, front axle, cab and transmission numbers. GUID-83FD881F-92C4-4883-87A2-FEFA9521C800 1. Cab number and Type plate EEC • Model = model indication •...
  • Page 5 Contents Contents About this manual..................1 Tractor serial numbers.................2 1 Safety precautions................13 Hazard statements.....................13 Safety rules......................13 1.2.1 Replacing safety and information signs............13 1.2.2 Safety signs......................13 1.2.3 Maintaining hardware safety................22 1.2.4 Using safety features..................23 1.2.5 Safe operation....................26 1.2.5.1 Following safe operating practices..........26 1.2.5.2 Getting into and out of the cab............29 1.2.5.3...
  • Page 6 3 Operation....................65 Running the tractor in..................65 Preparing for use....................65 3.2.1 Adjusting the air-suspended driver's seat............65 3.2.2 Adjusting the Valtra Evolution driver's seat............68 3.2.3 Adjusting the right-side armrest................72 3.2.4 Adjusting the steering wheel................72 3.2.5 Adjusting standard mirrors................73 3.2.6...
  • Page 7 Contents 3.6.5.1 Installing SIM card to the mobile controlled heater....101 Power outlets....................102 3.7.1 Lighter and power outlets................102 3.7.2 Using the two-pin current socket and power switch........102 3.7.3 Three-pin current socket................103 3.7.4 Trailer socket....................103 Driving the tractor.....................105 3.8.1 Notifications about steering................
  • Page 8 Contents 3.8.22.1 TwinTrac reverse drive system..........151 3.8.22.2 Activating and deactivating TwinTrac........151 3.8.22.3 Using TwinTrac with QuickSteer..........152 3.8.23 HillHold......................153 3.8.23.1 HillHold..................153 3.8.23.2 Using HillHold................153 Displays......................154 3.9.1 Adjusting display brightness................154 3.10 Proline instrument panel display..............155 3.10.1 Fixed views.....................155 3.10.2 Single-row and two-row views................156...
  • Page 9 3.15.3 Setting front linkage lifting link positions............220 3.16 Valtra front loader.................... 221 3.16.1 Using the Valtra front loader................221 3.16.2 Using the Valtra Quick front loader coupling device........223 3.16.3 Using Softdrive....................223 3.16.4 Locking the equipment................... 224 3.16.5 Controlling the extra cylinder with the change valve........225 3.17 Power take-off....................225...
  • Page 10 Contents 3.17.2.9 Adjusting the rear power take-off engagement......238 3.17.3 Front power take-off..................240 3.17.3.1 Activating and deactivating front power take-off....... 241 3.18 Implement signal connection................242 3.18.1 Implement signal connector................242 3.18.2 Resetting the implement signal connection............243 3.19 ISOBUS implement control system..............244 3.19.1 ISOBUS terminal connector................
  • Page 11 Contents 4.4.1.5 AdBlue/DEF................282 4.4.2 Grease......................283 4.4.2.1 Universal Grease - NLGI2 universal grease......283 4.4.2.2 Calsium LF - NLGI2 calsium grease LF........283 4.4.2.3 Grease Moly - NLGI2 moly grease........... 284 Storing the tractor.................... 284 4.5.1 Storing the tractor for a period shorter than two months........ 284 4.5.2 Storing the tractor for a period longer than two months.........
  • Page 12 Contents 4.7.4.25 Updating the software and calibrating the tractor..... 332 4.7.5 Maintenance every 1200 hours or yearly............333 4.7.5.1 Changing the oil in the transmission and hydraulic system..333 4.7.5.2 Changing oil in the front axle differential........334 4.7.5.3 Changing oil in the front axle hubs........... 335 4.7.5.4 Changing the fuel filter..............335 4.7.5.5...
  • Page 13 Contents 4.8.11.1 Adjusting lifting links of the pick-up hitch........389 4.8.11.2 Maintaining the automatic jaw of the wagon towing device..390 5 Troubleshooting..................391 Handling error situations.................. 391 Warnings on the Proline instrument panel display...........391 Identifying a blocked transmission or hydraulic system filter......392 Viewing service codes..................
  • Page 14 Contents 6.14 Hydraulic system....................417 6.14.1 Low-pressure circuit..................417 6.14.2 Steering hydraulic circuit................417 6.14.3 Working hydraulic circuit................417 6.14.3.1 Valves for auxiliary hydraulics..........419 6.14.3.2 Counter pressure when using the return connection for auxiliary hydraulics..............420 6.14.4 Rear linkage....................420 6.14.4.1 Lifting forces and lifting ranges..........
  • Page 15 1. Safety precautions Safety precautions Always follow the safety precautions given when working with the tractor. The regulations given do not release the operator from statutory and other national regulations regarding traffic safety and occupational health and safety. In addition to the precautions given in this manual, always follow the safety regulations applicable to different types of working sites and existing road traffic laws.
  • Page 16 1. Safety precautions IMPORTANT: After maintenance work, all replacements for parts with a safety sign on them must include also the new safety sign. GUID-D80034FC-C7F4-4349-8B02-554747A5597B - 14 -...
  • Page 17 1. Safety precautions GUID-64799C1A-46B6-4665-82E2-95BD37BC93D9 Caution: Instructions on avoiding injuries during startup, driving and maintenance. Located inside the cab, below the left-hand side C-pillar. Warning: Country-specific warning concerning handling of the battery and its accessories. Located on the side of the battery casing. ATENCIÓN Los bornes de la batería y el resto de los accesorios relacionados...
  • Page 18 1. Safety precautions Sign indicating the location of emergency brake. Located inside the cab, next to the right-hand side control panels. Sign indicating an emergency exit. Located inside the cab on the rear window and on the right-hand side window. Danger: Country-specific warning that the battery and its accessories are dangerous to handle.
  • Page 19 1. Safety precautions Caution: During the connection of the front linkage to the shut-off valve, there must be no load on the front linkage or a rear implement connected to the same valve. The warning sign is located next to the shut-off valve at the back of the tractor.
  • Page 20 1. Safety precautions Warning: Country-specific sign indicating the standard distances related to PTO driveline. Located at the back of the tractor, on the left rear wheel mudguard. “A” 400mm (15.85 in) 400mm (15.85 in) 400mm (15.85 in) 400mm (15.85 in) “B”...
  • Page 21 1. Safety precautions Warning: The sign warns against several dangers: • exposed fan which can crush and cut • surfaces which can be hot • exposed belt drive which can cause severe injury Located under the bonnet, on both sides of the radiator.
  • Page 22 1. Safety precautions Warning: Country-specific sign notifying that the seat belt must be used when driving the tractor. Located behind the passenger seat. ATENCIÓN USE EL CINTURÓN DE SEGURIDAD Mantenga su cinturón ajustado cómodamente No salte si el tractor vuelca 39661600 Warning against standing directly behind the tractor when it is used.
  • Page 23 1. Safety precautions Country-specific warning concerning cabin tightness. Located in the cab, on the left side of the front housing. Country-specific signs located at the back of the tractor, on the left rear mudguard. Danger: Only approved parts in their correct position can be used for pulling. Danger: All equipment shields must be kept in place during operation.
  • Page 24 1. Safety precautions Country-specific safety signs located on the front housing, next to the fire extinguisher. Brand- PULVERSLÄCKARE Uppluckra pulvret minst en gång per vecka. släckare Kontrollera att manometern står på grönt. Country-specific notification concerning tractor approval. Located in the cab, on the front housing.
  • Page 25 Lock the brake pedals together whenever individual wheel brakes are not required and always when driving on the road. • Extensive repairs to the braking system should be undertaken only by an authorised Valtra workshop. • When implements or ballast weights are front-end-mounted, the rear axle loading is decreased.
  • Page 26 1. Safety precautions • Emergency exits Familiarise yourself with the three emergency exits of the tractor cab, that is, the door, the rear window and the roof hatch. If necessary, the right-side window can be broken and used as emergency exit. The windshield is polycarbonate and cannot be easily broken.
  • Page 27 1. Safety precautions • Roof hatch GUID-BA2C1723-EB95-4628-8964-6805ECBE1B9A 1. Direction for releasing the lock 2. Direction for detaching the spring 3. Safety sign for using the emergency exit 4. Gas springs with quick locks 5. Handle • Pull open the sunshade. •...
  • Page 28 1. Safety precautions • Emergency brake Use the emergency brake only in emergency situations if braking with brake pedals is not possible. WARNING: Turning the ignition switch to (OFF) position cannot be used as an emergency brake. The emergency brake operates only when the power is switched on.
  • Page 29 1. Safety precautions • Functionality of the auxiliary hydraulics on/off push button. ON/OFF GUID-7B280F47-B2BB-497C-8FD5-7344952B85CD 1. Auxiliary hydraulics on/off push button Pressing the auxiliary hydraulics on/off push button turns off or on all the functions of the auxiliary hydraulics. The button has no effect on the functionality of the ON/OFF valves or the rear linkage.
  • Page 30 1. Safety precautions • Front loader WARNING: To prevent involuntary loader motion, the loader joystick controller must be of the self-neutralising type. When the operator releases their grip on the joystick, the joystick must return to the neutral position, except for the float detent position in the loader lowering direction.
  • Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
