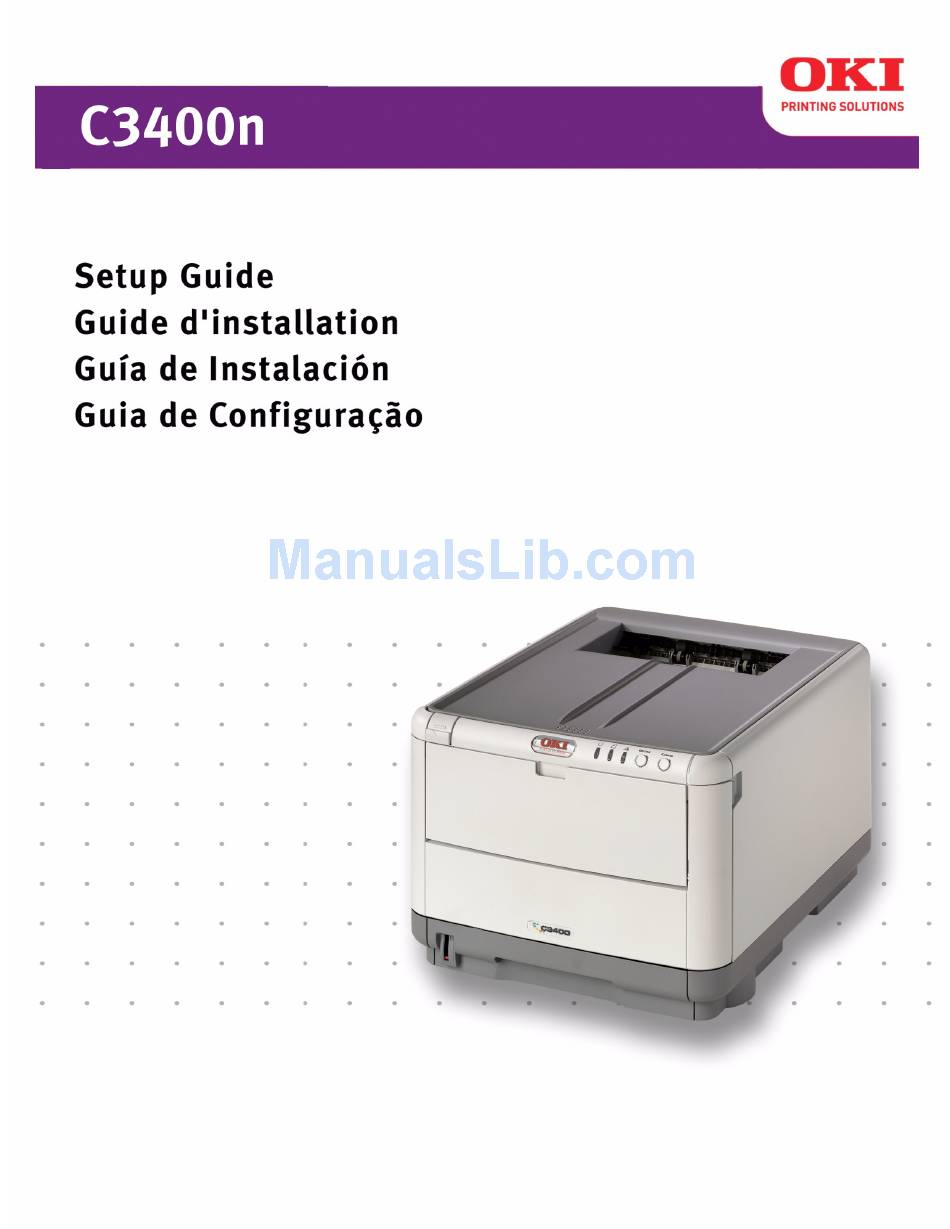

  • Page 2 English Your printer set up will take about 15-20 minutes. Unpack • Remove the packing pieces and the protective bag. Français La configuration en de l'imprimante nécessite de 15 à 20 minutes. Déballage • Retirez les matériaux d'emballage et le sac de protection.
  • Page 3 Check components: Printer Vérifiez les composants Imprimante Verifique los componente Impresora Verifique os componente Impressora Light shield bags Power Cable LED lens cleaner Sacs pare-lumière Cordon d'alimen- tation Nettoyant pour lentilles Bolsas de protec- ción contra la luz Cable de aliment- ación...
  • Page 4 English • Lift the printer and place it on the selected location. Français • Soulevez l'imprimante et placez-la à l'endroit désiré. • Levante la impresora y colóquela en la ubicación seleccionada. Español Português • Levante a impressora e coloque-a no local selecionado.
  • Page 5 English • Remove the packing materials and shipping tape. Prepare the Image Drum/Toner Units • Press the release button and lift the top cover. Français • Retirez les matériaux d'emballage le ruban d'expédition. Préparation des unités tambours d'image/toner • Appuyez sur le bouton de déverrouillage et ouvrez le capot supérieur. Español •...
  • Page 6 English • Remove the Black image drum/toner unit (keep unit upright to avoid toner spillage). Français • Retirez l'unité tambour d'image/toner (maintenez-la orientée vers le haut pour éviter toute fuite de toner). • Retire la unidad de cilindro de imagen/tóner (mantenga la unidad en Español posición vertical para evitar que el tóner se derrame).
  • Page 7 • Remove the tape and sheet. Caution! Do not touch the image drum’s shiny green surface. Do not expose the drum to direct sunlight. • Retirez les rubans et les feuilles. Mise en garde! Ne touchez pas la surface verte glacée du tambour! N'exposez jamais la cartouche de tambour à...
  • Page 8 English • Reinstall the black drum/toner unit, then push the lock lever towards the back of the printer as far as it will go. • Repeat these steps for remaining drum/toner units. Français • Remettez en place l'unité tambour d'image/toner noir, puis poussez le levier de verrouillage vers l'arrière de l'imprimante, jusqu'à...
  • Page 9 Prepare the Fuser • Press firmly on the blue lock ( Pull the restraint out in the direction of the arrow ( band. Préparation de l'unité de fusion • Appuyez fermement sur le levier de verrouillage bleu ( les dispositifs de fixation oranges. Tirez les dispositifs selon la direction indiquée par la flèche ( Prepare el fusor •...
  • Page 10 English • Close the top cover. Français • Fermez le capot supérieur. Español • Cierre la tapa superior. Português • Feche a tampa superior.
  • Page 11 Load Paper Tray • Pull out the paper tray. • Adjust the rear stopper ( • Adjust the side stoppers ( Chargement du papier Bac • Sortez le bac à papier. • Réglez la butée arrière ( • Réglez les butées latérales ( Cargue papel Bandeja •...
  • Page 12 • Load the paper (maximum 250 sheets 20-lb [80 g/m English • Make sure the paper width stoppers are snug against the paper and are locked in place. Note: Do not fill above paper full indicator ( Français • Chargez le papier (maximum de 250 feuilles de 20 lb [80 g/m •...
  • Page 13 English • Gently close the paper tray. Français • Remettez doucement le bac à papier en place. Español • Cierre la bandeja de papel con cuidado. Português • Feche com cuidado a bandeja para papel.
  • Page 14 English Power Up • Insert the power cable ( with your printer!), then plug it directly into a grounded wall outlet and turn on the printer. Français Mise sous tension • Insérez le cordon d'alimentation dans la prise ( d'alimentation fourni avec l'imprimante!), branchez l'autre extrémité...
  • Page 15 4.Reinstall the drum/toner units. Make sure the toner lock levers are in the locked position. If the alarm does not clear, complete the steps to install the printer software. When the software is installed, open the status monitor for an explanation of the alarm.
  • Page 16 1.Press and hold On Line for 5 seconds. The Demo Page prints. 2.Press and hold On Line for 2 seconds. The Status Page prints. The Status Page provides information on printer settings, consumables life, page counts and status panel functions.
  • Page 17 English Install the Handy Reference Guide • Remove the backing from the VELCRO Reference Guide and mount it on the side of the printer. Français Installation du Guide de référence pratique • Retirez la pellicule de la bande Velcro pratique et apposer le Guide de référence pratique sur le côté de l'imprimante.
  • Page 18 English Connect and Install the Printer Software - To connect to a Network, go to Step 16a on page 19. - To install software for Windows page 26. - To install software for Macintosh Français Connexion puis Installation du logiciel - Pour vous connecter à...
  • Page 19 1.Turn the printer OFF. 2.Locate the LAN port (A). Remove the plastic cap. 3.Connect the Ethernet cable between the printer and the Ethernet hub or router. Connexion à un réseau 1.Éteignez l’imprimante. 2.Localisez du connecteur réseau de l’imprimante (A). Retirez le disposiftif de protection en plastique du connecteur réseau de l’imprimante.
  • Page 20 1.Turn the Printer ON. 2.Press and hold the TEST button on the print server for 5 seconds. 3.Keep this sheet handy: it contains information you need to set up the printer on your network. See the Network Summary section for configuration information.
  • Page 21 Windows® Network Software Load CD 1.Insert the CD in the CD-ROM drive. The CD will autorun. If it doesn’t, click Start → drive, double-click Setup.exe. Click OK. 2.Select your language. 3.Accept the License Agreement. 4.The Installer screen appears. Windows® réseau Logiciels - Placez le CD 1.Insérez le CD dans l’unité...
  • Page 22 English Windows Network Software Install the Printer Driver and Status Monitor 1.Select Driver Setup from the menu bar. 2.Click Install Driver and Status Monitor. 3.Select network printer. 4.Follow the on-screen instructions to complete the driver installation. Français Windows réseau Logiciels - Installation du pilote et contrôl eur d’état 1.Sélectionnez Installation du pilote dans la barre de menu d’installation.
  • Page 23 Windows Network Software Test the Printer Driver Installation To make sure the printer driver is correctly installed, print a page from any program. Reinstall the driver if the installation failed. ➥ See Step 18 on Page 28 for information on using the printer’s online status monitor.
  • Page 24 English (Optional) Windows Network Software Network Setup Utility This utility allows easy print server configuration, quick discovery, and IP address assignment. 1.Select Optional Utilities from the menu bar. 2.Click Install Network Card Setup. 3.Follow the on-screen instructions. Note: If the Ethernet Address information does not appear, click Search. Français Windows réseau Configurez - Installer NIC Setup Utility (Optionnelle) Cet utilitaire facilite la configuration du serveur d’imprimante, accélère la...
  • Page 25 (Optional) Windows Network Setup Using a Web Browser Use your web browser to configure print server and printer menu settings on an embedded web page. 1.Activate your web browser (Microsoft Explorer or Netscape Navigator 4.0 or higher). 2.Enter the IP Address for the printer. Find the address on the network Information Page (see page 20).
  • Page 26 Windows USB Connection Install the Driver and Status Monitor Note: Install the driver before connecting the USB cable to the printer. 1.Turn the printer OFF. 2.Insert the CD in the CD-ROM drive. The CD will autorun. If it doesn’t, click Start →...
  • Page 27 Windows USB Connection Test the Printer Driver Installation To make sure the printer driver is correctly installed, print a page from any program. Reinstall the driver if the installation failed. ➥ See Step 18 on Page 28 for information on the printer status monitor.
  • Page 28 English View the Status Monitor (Windows only) The status monitor displays printer status on your monitor. Use it to check the current printer state, to configure printer setup, and to check alarms, paper and toner status. • To maximize the Status Monitor, double-click the icon on the Windows taskbar.
  • Page 29 Windows Setup Options Install the User’s Guide Note: To open the on-line manuals, you must have Adobe 3.0 or higher installed. 1.Select Driver Setup from the CD installer menu bar. 2.Click Install User’s Guide. 3.Follow the on-screen instructions to complete the installation. 4.To view the manuals, click Start Étapes Optionnelle pour Windows - Pour Installer des documents Remarque: Pour accéder au des guides en ligne, Acrobat Reader (version 3.0...
  • Page 30 English Windows Setup Options Install Utilities and Downloads Note: You must be connected to the internet to install download utilities. 1.Select Optional Utilities or Internet Downloads from the CD installer menu bar. 2.Click the utilities and downloads you want to install and follow the instructions.
  • Page 31 Macintosh Connect USB cable Note: Printer operation is not assured if another USB compatible device is connected concurrently with it. 1.Turn the printer OFF. 2.Connect the USB cable to the USB port on the computer, then to the USB port (A) on the printer.
  • Page 32 1.Ligue a impressora. Em seguida, ligue o computador. 2.Insira o CD do Driver na unidade de CD-ROM. 3.Clique duas vezes no icone do CD da OKI exibido no área de trabalho. 4.Clique duas vezes no ícone do MAC. (OSX ou OX9). Seleccione o idioma desejado.
  • Page 33 1.Run the Print Center or Print Setup Utility. Click Add. 2.Click More Printers. 3.Select OKI USB or OKI TCP/IP from the drop-down menu. Note: If you are using USB, select OKI USB and disregard step 4. 4.Enter the printer’s IP address. 5.Select the printer model. Click Add.
  • Page 34 English Macintosh Install Documentation Note: Adobe ® Acrobat® Reader 3.0 or higher is required to view the manuals. 1.Insert the CD into your CD-ROM drive. 2.Double-click the CD icon which appears on the desktop. 3.Scroll to the 3400_UG_ae.pdf file in the root directory. - To load: drag the pdf file to the desktop.
  • Page 35 The Operation Panel allows operator intervention and indicates both when the printer is operating normally and when it requires attention. Detailed printer status is provided by the Status Monitor in Windows or Printer Driver in Mac.The Operation Panel incorporates 3 LEDs and 2 push-button switches as follows (from left to right): 1.Power (Ready) LED (green)

  • Page 36: Assistencia Técnica Y Soporte

    OKI, OkiLAN ® Oki Electric Industry Company, Ltd. Microsoft, Windows, Internet Explorer ®/™ Microsoft Corporation in the United States and other countries. Netscape, Netscape Navigator U.S. ™, Netscape Communications Corporation. Novell, NetWare ® Novell Corporation in the U.S. and other countries. Adobe, Acrobat, Acrobat Reader, PostScript ™...
