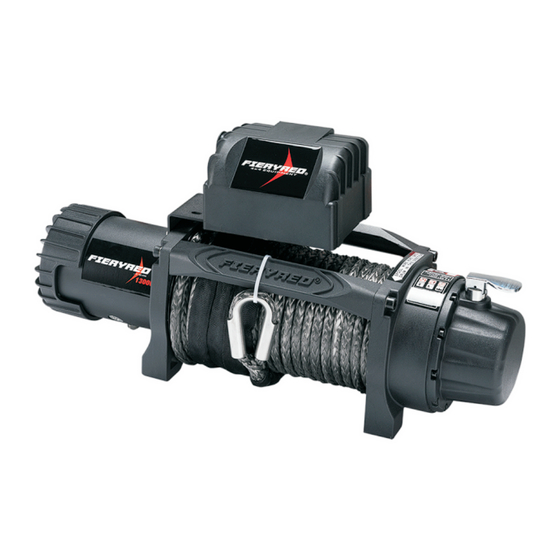

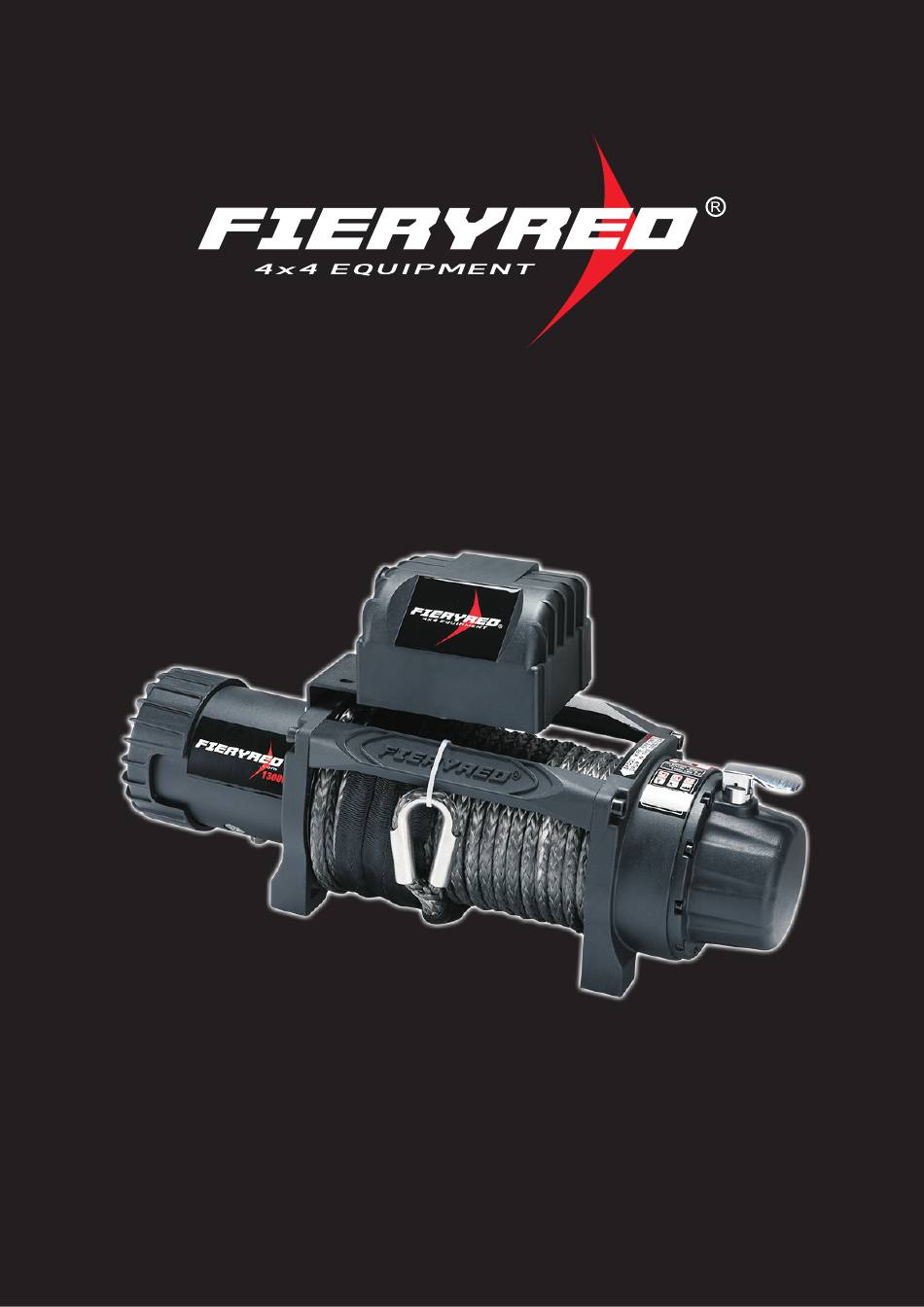

- Page 1 ELECTRIC WINCH USER MANUAL WIN13000-ROPE / WIN13000-ROPE-UFA Please read this guide carefully before installation...
- Page 2 Fieryred, founded in March, 2016 and born of the passion to fulfill four-wheel drive lovers' demand for affordable, yet high quality 4x4 equipment, takes prides in designing, engineering and providing rock solid 4x4 products to let you rediscover the fun of off-roading.
-
Page 3: General Safety
Please read all instructions and warnings before operation. Improper equipment operation may result in fire, injury, serious damage or even death. The instructions in this manual cannot cover all possible winching situations that could occur. It is highly recommended that the winch be used in a safe and responsible manner. -
Page 4: Installation Safety
Winching Safety: WARNING Observe your winch while winching, while standing at a safe distance. Never attempt to exceed the pulling limits of this winch. Never engage or disengage the clutch control when: your winch has a load on it; the winch line is under tension;... -
Page 5: What's In The Box
What's in the box: 1 x Fieryred 13,000lbs Electric Winch & Control Box 1 x User Manual 1 x Hook Strap 1 x Hook 1 x Hawse Fairlead 1 x Cable 1 x Multifunctional Controller 1 x Screw & Nut Kit... -
Page 6: Specification
Specification: WIN13000-ROPE / WIN13000-ROPE-UFA Capacity: 13,000lbs (5,909kg) Voltage: 12V DC Max Amp Draw / Line Pull: 415A / 13,000lbs Max Line Pull / Line Speed: 13,000lbs / 4.1 ft per min (1.25m per min) Motor Type: Series Wound Motor Motor: 4.92kW/6.6hp... -
Page 7: Wiring Diagram
Line pull, line speed and current (first layer) 2000 4000 6000 8000 10000 13000 Line Pull 1818 2727 3636 4545 5909 ft/min 21.3 11.5 Line Speed (m/min) 2.85 1.75 1.25 Current Rated line pull per layer Layer of cable 13000 10010 8840 7410... -
Page 8: Troubleshooting
Repair or replace solenoid, or Solenoid Malfunctioning tap solenoid to free contacts Clutch not engaged Engage the clutch Motor runs but drum visit www.fieryred.com for does not turn Winch brake needs to be adjusted professional help Recharge battery by running vehicle Battery depleted... - Page 9 Warranty applies only to the original purchaser of the winch. If a product fails to operate as a result of defects in materials or workmanship, Fieryred will, at its option, replace it with the same or similar product, or will issue a refund. Fieryred will pay for the cost of shipping or transportation of a defective component.
