- Page 1 ELECTRIC WINCH USER MANUAL PLEASE READ THIS GUIDE CAREFULLY BEFORE INSTALLATION WIN14500R-ROPE / WIN17500B-ROPE V1.0...
- Page 2 Fieryred, founded in March, 2016 and born of the passion to fulfill four-wheel drive lovers' demand for affordable, yet high quality 4x4 equipment, takes prides in designing, engineering and providing rock solid 4x4 products to let you rediscover the fun of off-roading.
-
Page 3: Know Your Winch

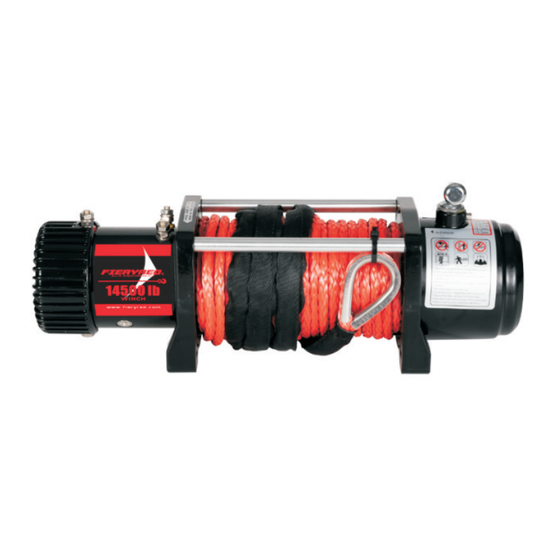

Know your winch: Before you begin, you should familiarize yourself with your winch and each of its components (models will vary in appearance): Control Box Remote Socket Clutch Lever Motor Winch Drum Winch Rope Motor: The winch motor is powered by the vehicle's battery. The motor provides power to the gear mechanism, which turns the winch drum and winds the winch rope. -
Page 4: General Safety
Please read all instructions and warnings before operation. Improper equipment operation may result in fire, injury, serious damage or even death. The instructions in this manual cannot cover all possible winching situations that could occur. It is highly recommended that the winch be used in a safe and responsible manner. -
Page 5: Installation Safety
Winching safety: Observe your winch while winching, while standing at a safe distance. Never attempt to exceed the pulling limits of this winch. Never engage or disengage the clutch control when: your winch has a load on it; the winch line is under tension;... -
Page 6: What's In The Box
How to make your winching more efficient: Avoid angled pull. The winch line should not exceed a 15-degree angle up and down from horizontal, or a 45-degree angle left or right from straight ahead. Use pulley blocks. Pulley blocks allow you the advantage of using a small force to move a heavy resistance or object. -
Page 7: Specification
Specification: WIN14500R-ROPE WIN17500B-ROPE Product Dimension: 20.87"L x 5.91"W x 7.87"H 21.14"L x 6.30"W x 7.20"H 53 x 15 x 20 cm 53.7 x 16 x 18.3 cm Weight: 61.73lbs (28kg) 90.39lbs (41kg) Single Line Rated Pull: 14,500lbs (6,577kg) 17,500lbs (7,938kg) -
Page 8: Wiring Diagram
WIN14500R-ROPE Rated line pull and rope capacity in layer Layer of cable 14 500 11 510 9 570 8 175 Rated line pull per layer 6 577 5 221 4 341 3 708 Total Rope on Drum 5.18 12.5 21.64 25.91... -
Page 9: Troubleshooting
Repair or replace solenoid, or Solenoid Malfunctioning tap solenoid to free contacts Clutch not engaged Engage the clutch Motor runs but drum visit www.fieryred.com for does not turn Winch brake needs to be adjusted professional help Recharge battery by running vehicle Battery depleted... - Page 10 If it fails to operate during the limited warranty period due to defects in materials or workmanship, Fieryred will, at its option, replace it with the same or similar product, or issue a refund. This limited warranty is provided by Fieryred and there are no other warranties, expressed or...
