Summary of Contents for Fieryred WIN6500-SHIP2

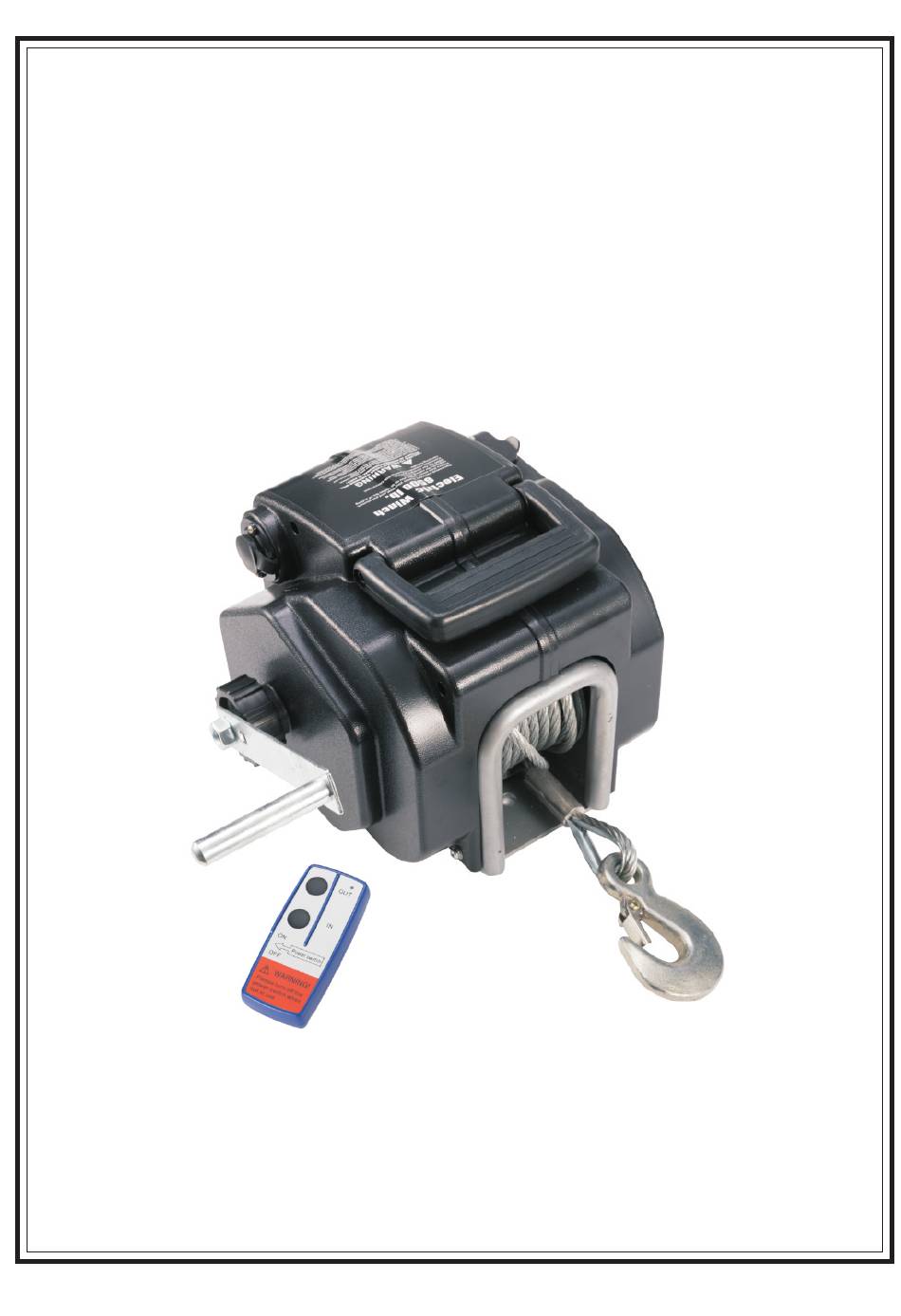

- Page 1 Electric Boat Winch User Manual SKU: WIN6500-SHIP2 V1.0...
-
Page 2: Safety Information
Safety Information Read this manual thoroughly before first use, and keep it in a safe place for future reference. The following Safety Precautions Must be Followed at ALL Times. Failure to follow the warnings and cautions in this manual could result in serious injury and/or property damage. WORK AREA SAFETY Inspect the work area before each use. -
Page 3: Parts List
Parts List 1. Boat Winch 2. Hand Crank 3. Snap Hook with Winch Cable 4. Wired Remote Socket 5. Control Cable 6. Power Cable 7. Remote Control 8. Mounting Plate 9. Pulley 10. User Manual Specifications Product Dimension: 9.45"L (24.0cm) x 9.25"W (23.5cm) x 8.27"H (21.0cm) Weight: 35.27lbs (16kg) Color: Black Capacity: 6,500lbs Rolling / 5,000lbs Marine / 2,000lbs Pulling / Max Boat Weight - 5,000lbs... - Page 4 Permanent Winch Mounting Select a mounting site on the boat trailer, vehicle bumper, truck bed, or other suitable location. Align the winch perpendicular to the center line of the vehicle at the desired location. Use mounting holes in the winch as a template to mark for drilling mounting holes in the installation surface.
-
Page 5: Operating The Winch
Wiring Insert the power cable plug at the end of the power cable into the socket on the right side of the winch body. Route the power cable from the winch to the battery, being careful to avoid tangling it in moving equipment, or causing a tripping hazard. - Page 6 Unloading the boat: If not previously done, attach the winch cable hook to the bow eye on the boat. Connect the power to the winch. Connect the wired remote. Remove the tie down straps from the boat. By pressing the OUT switch on the remote control, power out the cable until the boat is unloaded. When the boat is in the water, release the cable hook.
- Page 7 Re-insert the pulley wheel and secure it with the nut and bolt ensuring the winch cable is on the inside of the wheel. The pulley hook can increase the pulling capacity by approximately 55%. Adjusting The Brake The winch is equipped with a friction brake that hold the load when the power is off. The brake requires adjustment if the load creeps while the power is off or if the brake slips while powering the load in or out.
-
Page 8: Troubleshooting
Troubleshooting Failure Possible Cause Corrective Action Insufficient current or voltage. Recharge the battery. Run winch with vehicle motor running. Loose or corroded battery cable Clean, tighten, or replace them. connections. Wires are worn or bare that may cause Replace them. shorts. -
Page 9: Warranty
Warranty We (“Manufacturer”) warrant to the original buyer (“User”) that the Electric Boat Winch sold hereunder shall be free from defects in workmanship or materials and conform to our specifications for this product under normal application, installation, use and maintenance conditions from the date sold and for the duration (the “Warranty Period”) of 1 YEAR.
