Summary of Contents for Pentair US-1000

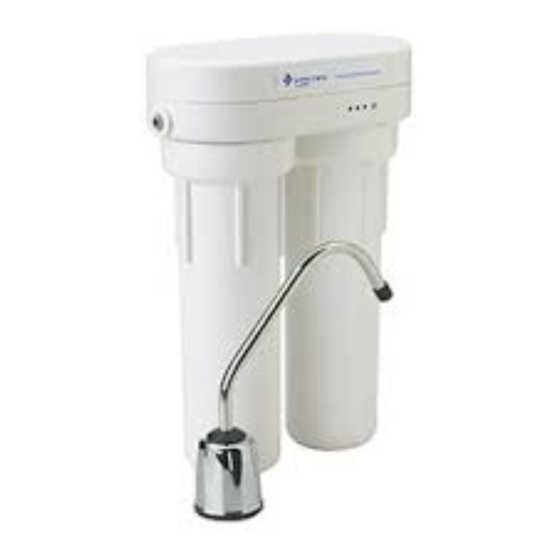

- Page 1 US-1000FILTRATION SYSTEM I N S T A L L A T I O NA N D O P E R A T I N GI N S T R U C T I O N S ©2018Pentair Residential Filtration, LLC waterpurification.pentair.com...
-
Page 2: Specifications
• Lead-free drinking water faucet • 1/4"plastic tubing AboutYourPENTAIR Filtration System PRECAUTIONS Thank youfor purchasing a PENTAIR Filtration System. With only minimal maintenance, your new system will provide you WARNING: Donot use with water that is microbiologically with safer, better-tastingwater for years to come. The filter... - Page 3 PENTAIR • 3 US-1000Filtration System Instruction Manual...
-
Page 4: Installation
(A) Remove wing nut and metal washer from the threaded shaft of the faucet. Leave the black rubber washer on the threaded shaft. Wing Nut (B) Slide the threaded shaft of the faucet into drilled hole. 4 • PENTAIR US-1000Filtration System Instruction Manual... -
Page 5: Mounting The System
First, turn off the water supply to the filter. Openfaucet, then press in the grey collar around the fitting while pulling the tubing with your other hand. PENTAIR • 5 US-1000Filtration System Instruction Manual... -
Page 6: Connecting The System
(D) Rotate base of drinking water faucet counter-clockwise to “ON” position. Allow water to run for 5minutes to flush air and carbon fines from filter cartridges. Check system for leaks beforeleaving installation. INSTALLATIONIS NOW COMPLETE. 6 • PENTAIR US-1000Filtration System Instruction Manual... -
Page 7: Filter Cartridgereplacement
Technical Support at 800.279.9404. 5. If flow through empty system is adequate, place one filter cartridge in system at a time and check flow to make sure cartridge is not clogged.Replace clogged cartridge if necessary. PENTAIR • 7 US-1000Filtration System Instruction Manual... -
Page 8: Replacement Parts
White housing 151231 O-ring (OR-233) 244960* Lead-Free Faucet 143431 Water Supply Adapter 150424 Housing Wrench (SW-5) *image may be different than actual faucet For replacement parts, contact your nearest PENTAIR distributor or call 800.279.9404. 8 • PENTAIR US-1000Filtration System Instruction Manual... -
Page 9: Performance Data
0.001 reduced to a concentration less than or equal to the permissible chloropicrin 0.015 0.0002 limit for water leaving the system, as specified in NSF/ANSI 53. 2,4-D 0.110 0.0017 Model US-1000 dibromochloropropane(DBCP) 0.052 0.00002 o-dichlorobenzene 0.080 0.001 Maximum p-dichlorobenzene 0.040 0.001... - Page 10 10• PENTAIR US-1000Filtration System Instruction Manual...
- Page 11 PENTAIR • 11 US-1000Filtration System Instruction Manual...
- Page 12 §For a detailed list of where Pentair trademarks are registered, please visit waterpurification.pentair.com/brands.Pentair trademarks and logos are owned by Pentair plc or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners. 146597REV D JL18...
