Smart encoders & actuators
SFEM1-05000
SFEM2-10000
• Programmable incremental draw-wire encoder
• Robust and compact design
• Resolution up to 16,384 PPR or preprogrammed down to 0.05 mm
• Max. measuring length: 5,000 mm or 10,000 mm
• Universal output circuit HTL/TTL
• Cable output / M12 or M23 connector outputs
Suitable for the following models:
SFEM1-05000-...
•
SFEM2-10000-...
•
Lika Electronic
User's guide
•
Tel. +39 0445 806600
General Contents
Preliminary information
Safety summary
Identification
Mechanical installation
Electrical connection
Programming interface
Default parameters list
•
info@lika.biz
10
13
18
27
•
www.lika.biz
6
7
9
Advertisement
Table of Contents
Related Manuals for Lika SFEM1-05000
Summary of Contents for Lika SFEM1-05000
-
Page 1: User's Guide

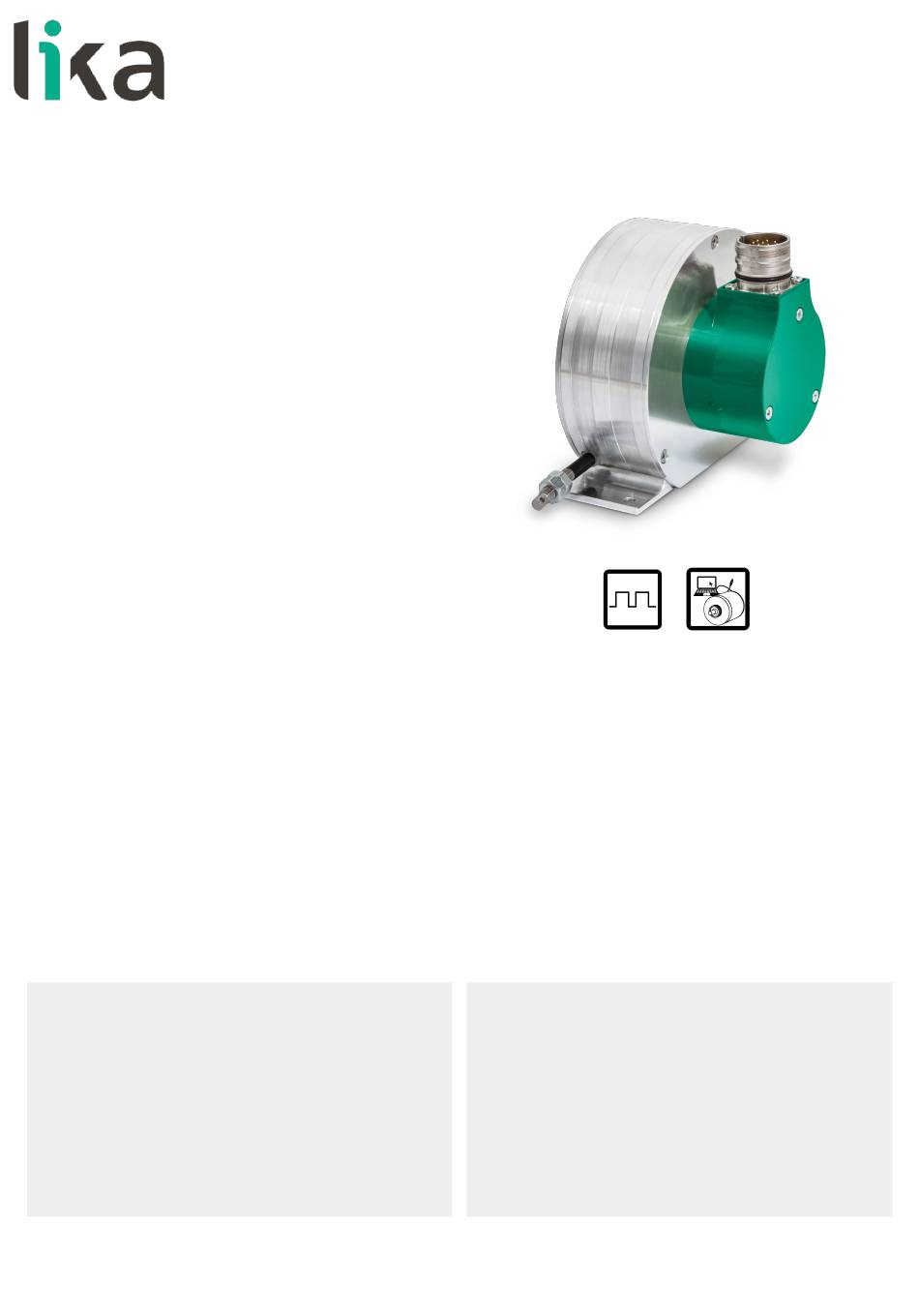

User's guide Smart encoders & actuators SFEM1-05000 SFEM2-10000 • Programmable incremental draw-wire encoder • Robust and compact design • Resolution up to 16,384 PPR or preprogrammed down to 0.05 mm • Max. measuring length: 5,000 mm or 10,000 mm • Universal output circuit HTL/TTL •... - Page 2 Tous droits réservés. This document and information contained herein are the property of Lika Electronic s.r.l. and shall not be reproduced in whole or in part without prior written approval of Lika Electronic s.r.l. Translation, reproduction and total or partial modification (photostat copies, film and microfilm included and any other means) are forbidden without written authorisation of Lika Electronic s.r.l.
-
Page 3: Table Of Contents
General contents User's guide......................................1 General contents.....................................3 Subject Index.....................................4 Typographic and iconographic conventions........................5 Preliminary information................................6 1 Safety summary............................. 7 1.1 Safety.....................................7 1.2 Electrical safety.................................7 1.3 Mechanical safety..............................8 2 Identification............................9 3 Mechanical installation........................10 3.1 Overall dimensions..............................10 3.2 Mounting instructions............................11 3.3 Useful information..............................12 3.4 Maintenance................................12 4 Electrical connection.......................... -
Page 4: Subject Index
Subject Index Index length...............23 Index position..............24 180° el (gated A)...............23 INTERFACE TYPE..............20 Internal pos. register............21 90° el (gated A, B)............23 Max rpm................25 ADVANCED DIAGNOSTICS..........25 NO ERROR................25 BACK TO MAIN PAGE............26 READ.................25 e seg. CCW..................23 Resolution................21 CLEAR ERROR..............25 Counting direction............23 SET..................24 CW..................23 START..................21 STOP..................21... -
Page 5: Typographic And Iconographic Conventions
Typographic and iconographic conventions In this guide, to make it easier to understand and read the text the following typographic and iconographic conventions are used: parameters are coloured in GREEN; • alarms are coloured in RED; • states are coloured in FUCSIA. •... -
Page 6: Preliminary Information
The connection between the encoder and the PC is established by using the USB connection kit order code KIT IP/IQ58 provided by Lika Electronic; M1 connection devices need the kit to be matched with EC-IP/IQ-M12 order code cordset; M2 connection devices need the kit to be matched with EC-IP/IQ-M23 order code cordset. -
Page 7: Safety Summary
• elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment; Lika Electronic assumes no liability for the customer's failure to comply • with these requirements. 1.2 Electrical safety Turn OFF the power supply before connecting the device;... -
Page 8: Mechanical Safety
SFEM1 & 2 programmable draw-wire encoder - to guarantee a correct working of the device, avoid using strong magnets on or near by the unit; - minimize noise by connecting the shield and/or the connector housing and/or the frame to ground. Make sure that ground is not affected by noise. -
Page 9: Identification
Please always quote the order code, the serial number and the programmed values when reaching Lika Electronic. For any information on the technical characteristics of the product refer to the technical catalogue. -
Page 10: Mechanical Installation
SFEM1 & 2 programmable draw-wire encoder Mechanical installation WARNING Installation has to be carried out by qualified personnel only, with power supply disconnected and mechanical parts compulsorily in stop. 3.1 Overall dimensions Values are expressed in mm MAN SFEM1_05000_SFEM2_10000 E 1.3 Mechanical installation 10 of 28... -
Page 11: Mounting Instructions
SFEM1 & 2 programmable draw-wire encoder 3.2 Mounting instructions Fasten the draw-wire unit onto a fixed support using three M4 screws 1; • remove the transport safety wire that pins the end of the measuring • wire; fix the end of the measuring wire to the moving unit using the provided •... -
Page 12: Useful Information
1 to 16,384 pulses; the default value is 16,384 PPR. Pre-programmed versions are further available (see the order code). The stroke per turn is always 200 mm (7.874”), the maximum number of turns is 25 for SFEM1-05000 and 50 for SFEM2-10000. EXAMPLE SFEM1-05000-H4-00PRG-RL010 Stroke per turn = 200 mm (7.874”) -
Page 13: Electrical Connection
Shielding Shield Case Case 4.2 T12 cable specifications Model: LIKA High-Flex Twisted Encoder cable type T12 Cross section: 4 x 2 x 0.14 mm + 4 x 0.25 mm twisted pairs (26/24 AWG) Jacket: Matt Polyurethane (TPU) halogen free, oil, hydrolysis,... -
Page 14: M23 12-Pin Connector Specifications
SFEM1 & 2 programmable draw-wire encoder Conductor resistance: ≤148 Ω/km (0.14 mm ), ≤90 Ω/km (0.25 mm 4.3 M23 12-pin connector specifications M23 12-pin connector Male Clockwise 4.4 M12 12-pin connector specifications Male Frontal side A coding 4.5 Connection of the shield For signals transmission always use shielded cables. -
Page 15: Ground Connection
To communicate with the encoder, you must connect the device to the personal computer through a USB socket using the specific connection kit supplied by Lika Electronic upon request. The connection kit code is KIT IP/IQ58. -
Page 16: Installing The Kit Ip/Iq58 Usb Drivers
KIT IP/IQ58 connection cable. You are required to install the drivers of the USB Serial Converter and the USB Serial Port first. The drivers are available for download from Lika web site www.lika.it. - Page 17 SFEM1 & 2 programmable draw-wire encoder If you need to install the drivers under the Microsoft Windows 7 operating system, please refer following document: Installation_Guide_for_Windows7.pdf. If you need to install the drivers under the Microsoft Windows 8 operating system, please refer following document:...
-
Page 18: Programming Interface
5.1 Configuring the encoder using the software tool SFEM1 & 2 programmable incremental draw-wire encoder is provided with a software expressly developed and released by Lika Electronic in order to easily programme and configure the device. It allows the operator to set the working parameters of the device and monitor whether the device is running properly. -
Page 19: Starting The Program
SFEM1 & 2 programmable draw-wire encoder WARNING Please always close the programming interface before disconnecting the encoder ! 5.2 Starting the program To launch the program just double-click the KIT IP_IQ58_vx.x.EXE executable file. The main page of the configuration interface will appear on the screen. A further page is dedicated to the diagnostic information;... -
Page 20: Connection To The Encoder
SFEM1 & 2 programmable draw-wire encoder 5.3 Connection to the encoder When you start the program, the system automatically detects the type of interface you plugged into (INTERFACE TYPE: “KIT IP/IQ58”). You are required to select the series of the programmable incremental encoder integrated into the SFEM1 &... -
Page 21: Setting The Parameters
SFEM1 & 2 programmable draw-wire encoder 5.4 Setting the parameters WARNING To save the data on the EEPROM permanently, after having entered the new value you must press the ENTER button in the keyboard. The parameter is saved instantly. Internal pos. register It is used to show the value in the internal position register, that is: the current position of the encoder. - Page 22 SFEM1 & 2 programmable draw-wire encoder To convert the position value into millimetres (mm) or micrometres (µm) you have to multiply the number of information by the linear resolution of the encoder expressed in millimetres or micrometres. To know the linear resolution of the encoder please consider that the stroke per turn is 200 mm.
-
Page 23: Counting Direction
SFEM1 & 2 programmable draw-wire encoder Counting direction By default the counting direction is positive when pulling the wire out (the A channel leads the B channel, see the Figure on page 24). This parameter allows to reverse the counting direction, i.e to have a count up when the wire rewinds Counting direction = CCW to have the increasing count around the drum. -
Page 24: Index Position
SFEM1 & 2 programmable draw-wire encoder Index position The encoder provides the zero signal (Index pulse) once every 200 mm / 7.874” of linear displacement (that is once per revolution of the encoder shaft) as relative positioning reference (home position, see the Figure above). In this way a unique position can be identified at a well-known point in the 200 mm / 7.874”... -
Page 25: Max Rpm
SFEM1 & 2 programmable draw-wire encoder Max rpm It allows to optimize the encoder performance (by keeping the most efficient ratio between the encoder rotational speed and the signal edge distance), depending on the maximum speed the application is able to reach. Since the maximum speed and the resolution are strictly correlated, some options may be disabled or limited as you enter increasing resolutions. -
Page 26: Diagnostics Page
If an error occurs and the system is not able to solve it after pressing the CLEAR ERROR button, please take note of the error code that appears in the window and reach Lika Electronic's After Sales and Technical Service. Press the BACK TO MAIN PAGE button to display back the main page. -
Page 27: Default Parameters List
SFEM1-05000-H4-00PRG-RL020. Versions with factory preset resolution may provide different PPR information, see your specific order code in the label applied to the encoder enclosure, for instance: SFEM1-05000-H4- 01000-RL020 (in this case: preset resolution = 1000 PPR). MAN SFEM1_05000_SFEM2_10000 E 1.3... - Page 28 Default values, general revision 23.03.2016 Programming interface update from 2.5 to ... 26.01.2023 New product name, new order code, general review from 2.5 to ... Lika Electronic Via S. Lorenzo, 25 • 36010 Carrè (VI) • Italy Tel. +39 0445 806600 Fax +39 0445 806699 info@lika.biz...
