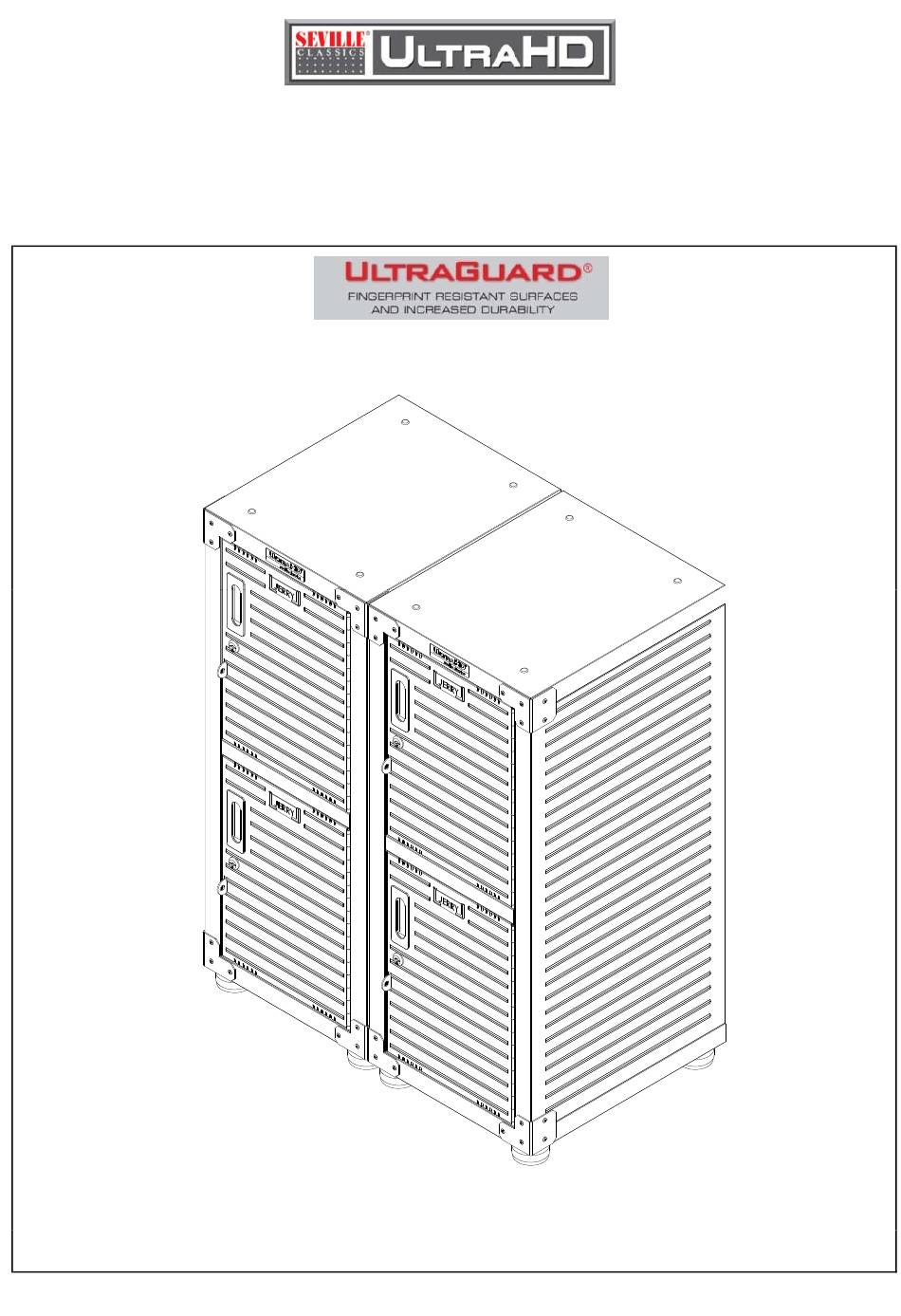

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD 4-Door Locker Cabinet (Model No. 20297, 20298, 20299) Blue Granite White 15in. W X 18 in. D X 37.6 in. H ( 38.1cm x 45.7cm x 95.5cm) Reference page 9 for special care and maintenance of stainless steel...
- Page 2 #55-A #27-B...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 9) . (#3) Top Panel x 2PCS (#4) Bottom Panel x 2 PCS (#1) Left Side Panel x 2 PCS (#9) Right Side Panel x 2 PCS (#5) Middle Shelf x 2 PCS... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 9) . (#13) Middle Shelf Bracket x 4 PCS (#6) Leveling Feet x 8 PCS (#15) Corner Protection-A x 4 PCS (#16) Corner Protection -B x 4 PCS (#22) Key x 8 PCS...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 9) . (#27-B) WASHER (M8) x 4 PCS (#27) WASHER (M4) x 4 PCS (#55) Screw M (M6 x 50L) x 4 PCS (#55-A) Wall Anchor x 4 PCS (#60) Mounting Strap x 4 PCS...
- Page 6 UltraHD 4-Door Locker Cabinet (Model No. 20297, 20298, 20299) *NOTE: We recommend using TWO people to assemble the cabinet. Step 1. Install (#4) Bottom Panel, (#1) Left Side Panel and (#9) Right Side Panel. BACK Place the (#4) Bottom Panel to (#1) Left Side Panel and (#9) Right Side Panel, line up screw holes, use 6 pcs of (#42) Screw G (M4 x 30L)to tighten.
- Page 7 UltraHD 4-Door Locker Cabinet (Model No. 20297, 20298, 20299) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4. Install (#6) Leveling Feet Install Leveling Feet (#6) into the largest corner holes of the Bottom Panel (#4). Use Wrench (#25) to tighten.
- Page 8 UltraHD 4-Door Locker Cabinet (Model No. 20297, 20298, 20299) *NOTE: We recommend using TWO people to assemble the cabinet. Step 7. Install(#11) Lock Plate Place the 2pcs (#11) Lock Plate on the inside front of the left side panel, line up screw holes, use 4 pcs of (#41) Screw F (M4 x 8L)to tighten.
- Page 9 UltraHD 4-Door Locker Cabinet (Model No. 20297, 20298, 20299) *NOTE: We recommend using TWO people to assemble the cabinet. Step 10. Install Mounting Strap (#60) A. Remove 1 pc Screw F (#41) from the back corner protection. #27-B B. Attach the Mounting Strap (#60) to the back Corner Protection brackets as the left photo shows, and using Screw O (#61) and Washer (#27).
-
Page 10: Contact Information
Fax: (310) 533-3899 Hours: 9:00am - 4:30pm (Pacific Standard Time) E-mail: support@sevilleclassics.com Website & Online Store: www.sevilleclassics.com ***Please visit our website or call and inquire about our additional UltraHD Line*** UltraHD® Line UltraHD® Tall Storage Cabinet UltraHD® Mega Storage Cabinet Model No. - Page 11 UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) Model No. 20293 (Graphite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
