ASSEMBLY INSTRUCTIONS

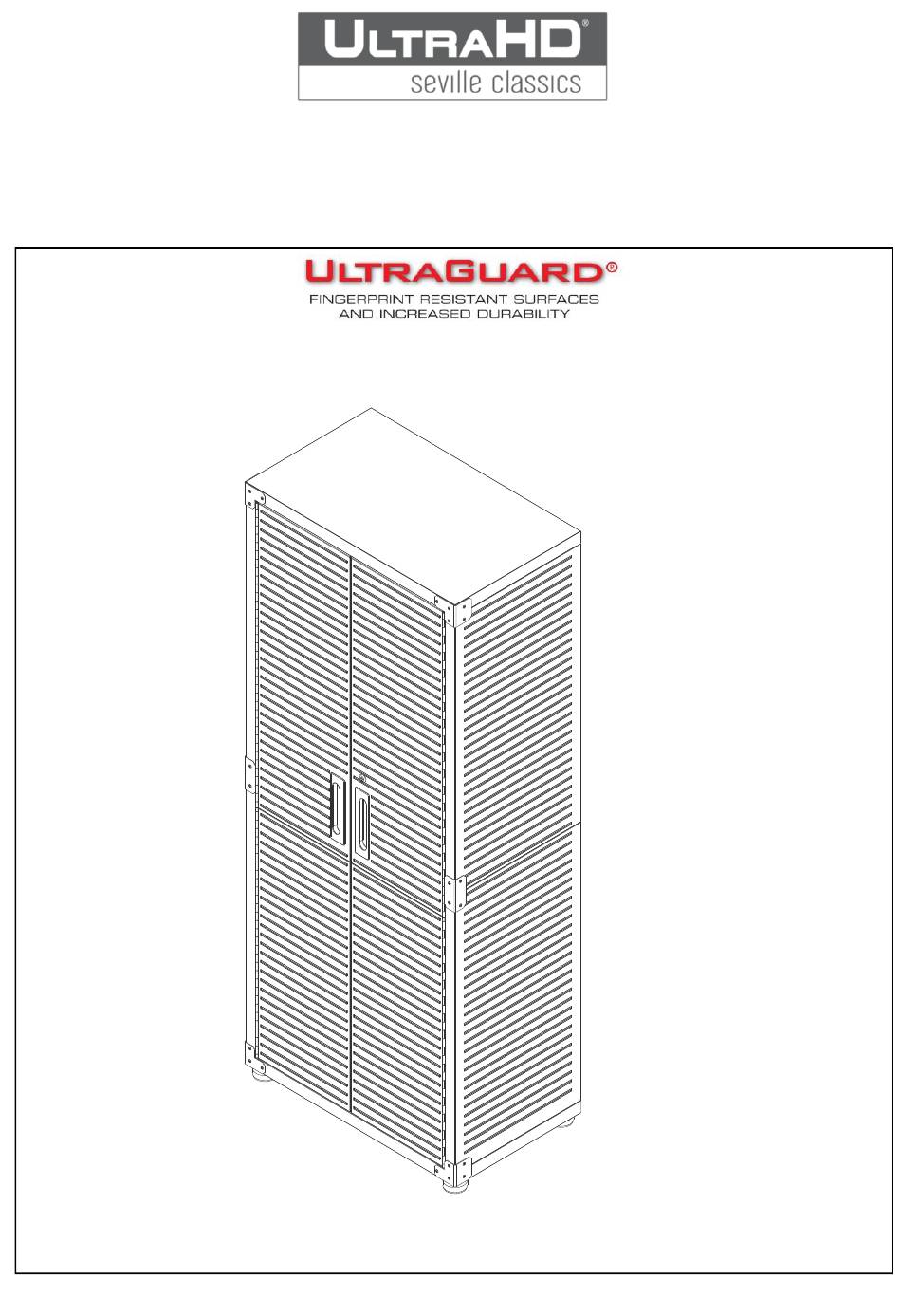

UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163)
Granite Graphite
30 in. W X 18 in. D X 72 in. H
(76.2 cm x 45.72 cm x 1.83 m)
Reference page 13 for special care
and maintenance of stainless steel
Includes Engineered
Nylon Anchors for quick
assembly
SC200820
Advertisement
Related Manuals for UltraHD 20162
Summary of Contents for UltraHD 20162
- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) Granite Graphite 30 in. W X 18 in. D X 72 in. H (76.2 cm x 45.72 cm x 1.83 m) Reference page 13 for special care and maintenance of stainless steel...
- Page 2 Includes Engineered Includes Engineered Nylon Anchors for Nylon Anchors for quick assembly quick assembly...
- Page 3 “Quick assembly” Includes Engineered Nylon Anchors for quick assembly...
- Page 4 (#1-A) Left Side Panel (#2-A) Right Side Panel (#6-A) Left Door (#7-A) Right Door...
-
Page 5: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 14.) (#1-A1) Left Side - Upper Panel x 1 PC (#1-A2) Left Side - Bottom Panel x 1 PC (#1-A3) Side Panel Reinforcement Connection Part x 2 PCS (#2-A1) Right Side - Upper Panel x 1 PC (#2-A2) Right Side - Bottom Panel x 1 PC... - Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 14.) (#6-A1) Left Door - Upper Panel x 1 PC (#6-A2) Left Door - Bottom Panel x 1 PC (#6-A3) Door Panel Connection Part x 2 PCS (#7-A1) Right Door - Upper Panel x 1 PC (#7-A2) Right Door - Bottom Panel x 1 PC...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 14.) (#10) Bottom Back Panel x 1 PC (#6) Leveling Feet x 4 PCS (#15) Corner Protection - A x 2 PCS (#16) Corner Protection - B x 2 PCS (#17) Middle Corner Protection x 2 PCS...
- Page 8 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 14.) (#25) Wrench x 1 PC (#34) Hook x 12 PCS (#41) Screw F (M4 x 8L) x 54 PCS (#42) Screw G (M4 x 30L) x 12 PCS (#52) Screw K (M5 x 10L) x 8 PCS (#53) Screw L (M4 x 6L) x 1 PC...
- Page 9 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 14.) (#55-A) Wall Anchor x 2 PCS (#27) WASHER (M4) x 2 PCS M8X20 pcs (#27-B) WASHER (M8) x 2 PCS (#61) Screw O (M4 x 12L) x 2 PCS...
- Page 10 UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If using a power screwdriver, keep toruqe setting on LOW during assembly.
- Page 11 UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4: Install Right Door (#7-A) Repeat Step 3, use Right Door - Upper Panel (#7-A1), Right Door - Bottom Panel (#7-A2), Door Panel Connection Part (#6-A3).
- Page 12 UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) *NOTE: We recommend using TWO people to assemble the cabinet. Step 8: Install Back Panels (#8, #9 and #10) 1) Attach Bottom Back Panel (#10) onto both bottom of Left and Right Side Panels (#1-A2 and #2-A2) and Bottom Panel (#4).
- Page 13 UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) *NOTE: We recommend using TWO people to assemble the cabinet. Step 11: Install Magnet (#23) Place Magnet (#23) onto Top Panel (#3) and Bottom Panel (#4) facing the front, use 4 pcs Screw F (#41) to tighten.
- Page 14 UltraHD® Tall 30 in. Storage Cabinet (Model No. 20162, 20163) *NOTE: We recommend using TWO people to assemble the cabinet. Step 14: Install Mounting Strap (#60) 1) Remove 1 pc Screw F (#41) from the back corner protection. 2) Attach the Mounting Strap (#60) to the back Corner Protection brackets as the left photo shows using Screw O (#61) and Washer (#27).
-
Page 15: Contact Information
Fax: (310) 533-3899 Hours: 9:00am - 4:30pm (Pacific Standard Time) E-mail: support@sevilleclassics.com Website & Online Store: www.sevilleclassics.com ***Please visit our website or call and inquire about our additional UltraHD Line*** UltraHD® Line UltraHD® Tall Storage Cabinet UltraHD® Mega Storage Cabinet Model No. - Page 16 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
