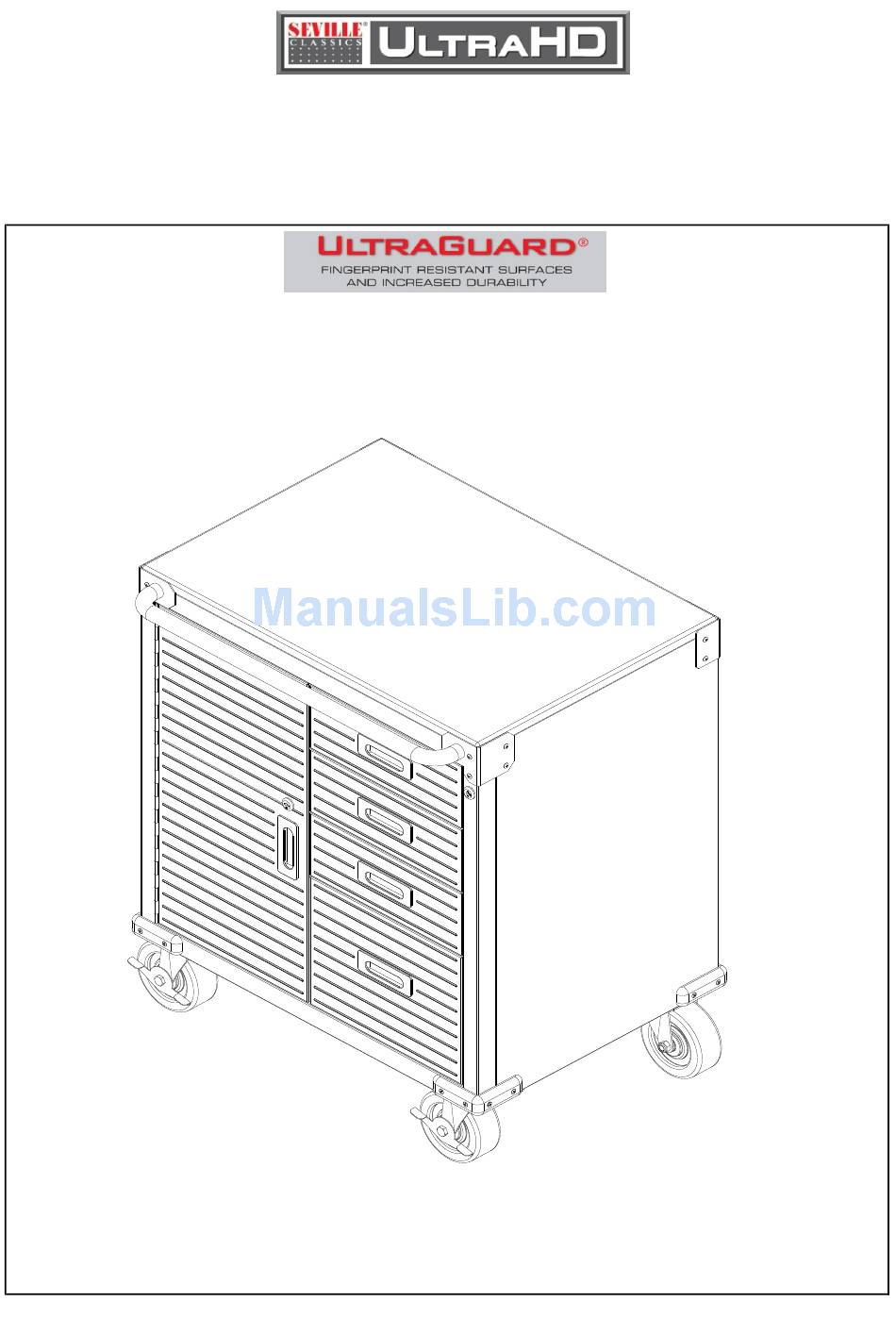

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Rolling Cabinet (Model No. 20205B) 28in. W X 20in. D X 34.5in. H (71.1cm x 50.8cm x 87.6cm ) Reference page 14 for special care and maintenance of stainless steel REV. TR150929...
- Page 2 (pg 1 of 15)
- Page 3 (pg 2 of 15) Small Drawer Assembly Large Drawer Assembly...
-
Page 4: Parts List
PARTS LIST (pg 3 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 16). (#1) BOTTOM PANEL x 1 PC (#2) FRONT FRAME x 1 PC (#3) RIGHT PANEL x 1 PC (#4) LEFT PANEL x 1 PC... - Page 5 PARTS LIST (pg 4 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 18). (#9) MIDDLE SHELF x 1 PC (#10) SOLID HARDWOOD TOP x 1 PC (#11) PUSH BAR x 1 PC (#12-1) SMALL DRAWER FRONT PANEL x 3 PCS...
- Page 6 PARTS LIST (pg 5 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 18). (#13-1) LARGE DRAWER FRONT PANEL x 1 PC (#13-2) LARGE DRAWER LEFT PANEL x 1 PC (#13-3) LARGE DRAWER RIGHT PANEL x 1 PC (#13-4) LARGE DRAWER BACK PANEL x 1PC...
- Page 7 PARTS LIST (pg 6 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 15 of 15). (#19) LEFT BACK CORNER PROTECTOR x 1 PC (#18) RIGHT BACK CORNER PROTECTOR x 1 PC (#20) SCREW A (M4 x 10) x 58 PCS (#21) SCREW B (M4 x 8) x 79 PCS...
- Page 8 PARTS LIST (pg 7 of 15) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 16 of 18). (#27) WASHER（M4） x 4 PCS (#26) SCREW C (M4 x 18) x 16 PCS...
- Page 9 UltraHD Rolling Cabinet (Model No. 20205B) (pg 8 of 15) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a Front low torque setting. Back Step 1. Open the package, remove and place all parts to the side.
- Page 10 UltraHD Rolling Cabinet (Model No. 20205B) (pg 9 of 15) Step 4. Install the Right Panel (#3). Front Attach the Right Panel (#3) to Front Frame (#2). Make sure the “Top” of the Right Panel (#3) is on the Solid Hardwood Top (#10).
- Page 11 UltraHD Rolling Cabinet (Model No. 20205B) (pg 10 of 15) Front Step 7. Install the Bottom Panel (#1). Attach the Bottom Panel (#1) to the Left Panel (#4), Right Panel (#3), Front Frame (#2) and Bottom Back Back Panel (#6). Line up the screw holes and use Screw A (#20) to tighten.
- Page 12 UltraHD Rolling Cabinet (Model No. 20205B) (pg 11 of 15) Install Small Drawer Side Panels Step 11. (#12-2 and #12-3). Fit and attach Small Drawer Side Panels (#12-2 and #12- 3) one at a time into the back of the Small Drawer Front Panel (#12-1).
- Page 13 UltraHD Rolling Cabinet (Model No. 20205B) (pg 12 of 15) Assemble and Install Large Drawer the same way. Repeat Steps 11-13 using Large Drawer Left Panel (#13-2), Large Drawer Right Panel (#13-3), Large Drawer Front Panel (#13-1), Large Drawer Back Panel (#13-4) and Drawer Base Panel (#12-5) to assemble the Large Drawer.
- Page 14 UltraHD Rolling Cabinet (Model No. 20205B) (pg 13 of 15) WARNING: ball bearing track must be pulled out all the way to stay in the front of slider Step 14. Install four Drawers into cabinet. To insert Drawers, pull out the drawer tracks and inner ball bearing tracks as far as possible.
- Page 15 UltraHD Rolling Cabinet (Model No. 20205B) (pg 14 of 15) Step 16. Install the Door (#8) Attach the Door (#8) to the unit using Screw B (#21) to tighten. Note: The screw holes on the door hinge have tolerance, enabling the door to be adjusted and centered in the door frame.
-
Page 16: Contact Information
Hours: 9:00am - 4:30pm (Pacific Standard Time) Fax: (310) 533-3899 E-mail: support@sevilleclassics.com Website & Online Store: www.sevilleclassics.com ***Please visit our website or call and inquire about our additional UltraHD Line*** UltraHD Line Model No. 16238 Model No. 16236 UltraHD Mega Cabinet UltraHD Storage Cabinet Model No. - Page 17 UltraHD Line Model No. 20206 Model No. 20230 UltraHD Workbench UltraHD Wall Cabinet Model No. 20262 UltraHD Rolling Workbench Model No. 20267 UltraHD Workcenter Model No. 20215 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
