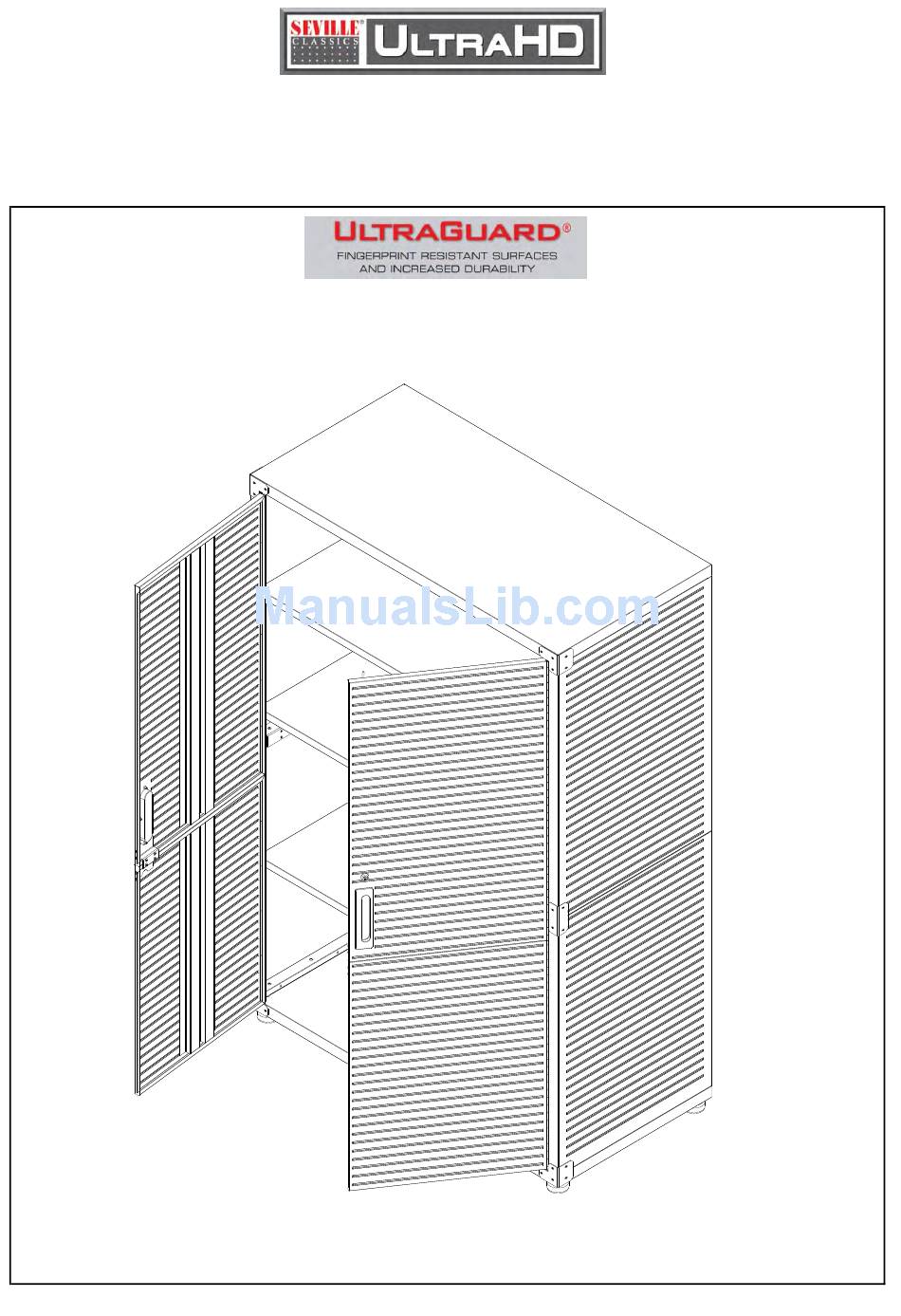

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Storage Cabinet (Model No. 16238) 48in. W X 24in. D X 72in. H (1.21 m x 60.9 cm x 1.83 m) Reference page 10 for special care and maintenance of stainless steel REV. TR150929...
- Page 2 (pg 1 of 11)
- Page 3 (pg 2 of 11) (#1-A) Left Side Panel (#2-A) Right Side Panel (#6-A) Left Door (#7-A) Right Door...
-
Page 4: Parts List
PARTS LIST (pg 3 of 11) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 11 of 11) . (#1-A1) Left Side - Upper Panel x 1 PC (#1-A2) Left Side - Bottom Panel x 1 PC (#1-A3) Side Panel Reinforcement Connection Part x 2 PCS (#2-A1) Right Side - Upper Panel x 1 PC... - Page 5 PARTS LIST (pg 4 of 11) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 11 of 11) . (#6-A1) Left Door - Upper Panel x 1 PC (#6-A2) Left Door - Bottom Panel x 1PC (#6-A3) Door Panel Connection Part x 2 PCS (#7-A1) Right Door - Upper Panel x 1 PC...
- Page 6 PARTS LIST (pg 5 of 11) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 11 of 11) . (#10) Bottom Back Panel x 1 PC (#6) Leveling Feet x 4 PCS (#15) Corner Protection - A x 2 PCS (#16) Corner Protection - B x 2 PCS...
- Page 7 PARTS LIST (pg 6 of 11) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (please refer to page 11 of 11) . (#25) Wrench x 1 PC (#34) Hook x 12 PCS (#41) Screw F (M4 x 8L) x 111 PCS (#42) Screw G (M4 x 30L) x 16 PCS...
- Page 8 ASSEMBLY INSTRUCTIONS (pg 7 of 11) UltraHD Storage Cabinet (Model No. 16238) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. WARNING: Some parts may have sharp edges. To avoid injury, wearing gloves is recommended during assembly.
- Page 9 ASSEMBLY INSTRUCTIONS (pg 8 of 11) UltraHD Storage Cabinet (Model No. 16238) Step 4: Install (#7-A) Right Door. Repeat Step 3, use (#7-A1) Right Door - Upper Panel, (#7-A2) Right Door - Bottom Panel, (#6-A3) Door Panel Connection Part, use 1pc (#41) Screw F to tighten the...
- Page 10 ASSEMBLY INSTRUCTIONS (pg 9 of 11) UltraHD Storage Cabinet (Model No. 16238) Step 8: Install (#8, #9 and #10) Back Panels. 1). Attach (#10) Bottom Back Panel onto both Bottom of Left and Right Side Panels (#1-A2 and #2- A2) and Bottom Panel (#4), line up screw holes, use 15pcs (#41) Screw F to tighten.
- Page 11 ASSEMBLY INSTRUCTIONS (pg 10 of 11) UltraHD Storage Cabinet (Model No. 16238) Step 11: Install (#23) Magnet. Place (#23) Magnet onto (#3) Top Panel and (#4) Bottom Panel facing the front, use 8pcs (#41) Screw F to tighten. Step 12: Install (#6-A, #7-A) Left and Right Doors.
-
Page 12: Contact Information
Hours: 9:00am - 4:30pm (Pacific Standard Time) Fax: (310) 533-3899 E-mail: support@sevilleclassics.com Website & Online Store: www.sevilleclassics.com ***Please visit our website or call and inquire about our additional UltraHD Line*** UltraHD Line Model No. 20227 Model No. 16236 UltraHD Rolling Cabinet UltraHD Storage Cabinet Model No. - Page 13 UltraHD Line Model No. 20206 Model No. 20230 UltraHD Workbench UltraHD Wall Cabinet Model No. 20262 Model No. 20267 UltraHD Rolling Workbench UltraHD Workcenter Model No. 20215 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
