Mount the NUBM3–HE
6
Mount the NUBM3–HE
1.
Pull the room buses through the adapter plate and the frame.
See
8 Terminating the Room Bus RJ45 Connectors, page
2.

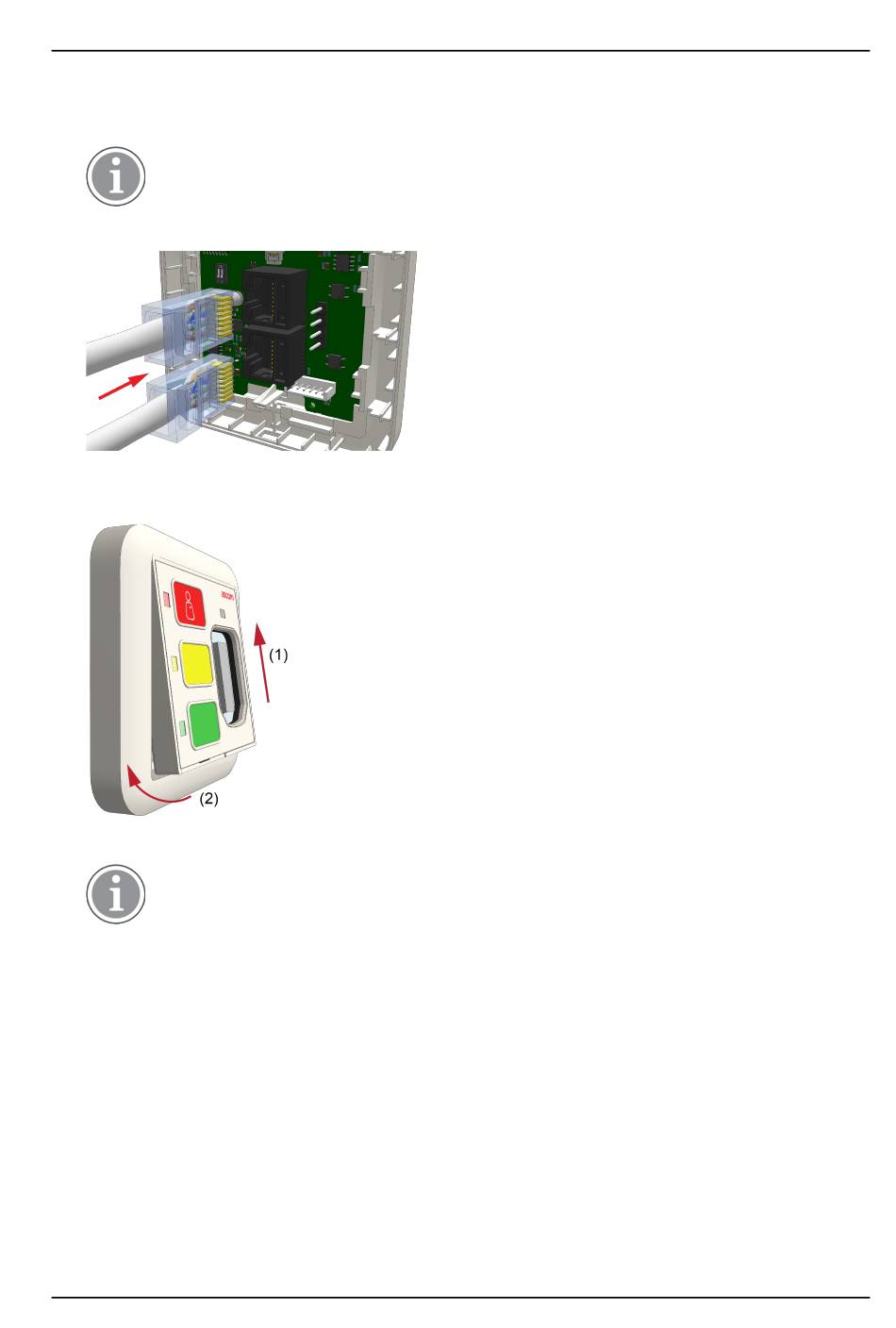

Insert the room buses into the RJ45 connectors on the rear side of the NUBM3–HE.
3.
Place the frame with the module over the adapter and insert the top of the module first into the adapter
(item 1) and then click the bottom of the module into the adapter (item 2).
4.
Perform a test to verify that the LEDs function correctly.
Only in a correctly configured system will a call or presence generate an alert on display
devices such as corridor lamps.
7
INSTALLATION GUIDE
Bedside Module (NUBM3-HE)
9.
TD 93505EN / 28 February 2022 / Ver. A
