Service
Features
High head , unique shape
Large capacity , capable of more washing
Unique cascade current
Separating water and electricity , wide voltage range design
Enclosed base frame , mute design
Spray rinsing and spinning
Special No.: SMXPB90-99VGS-02
XPB90-99VGS
Twin-tub washing machine with pump
Haier Group
Manual
XPB90-99VGS(MALTA)
XPB90-99VS(AUSTRILIA)
saving water and time
Edition: 2003.01.12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haier XPB90-99VGS
Summary of Contents for Haier XPB90-99VGS

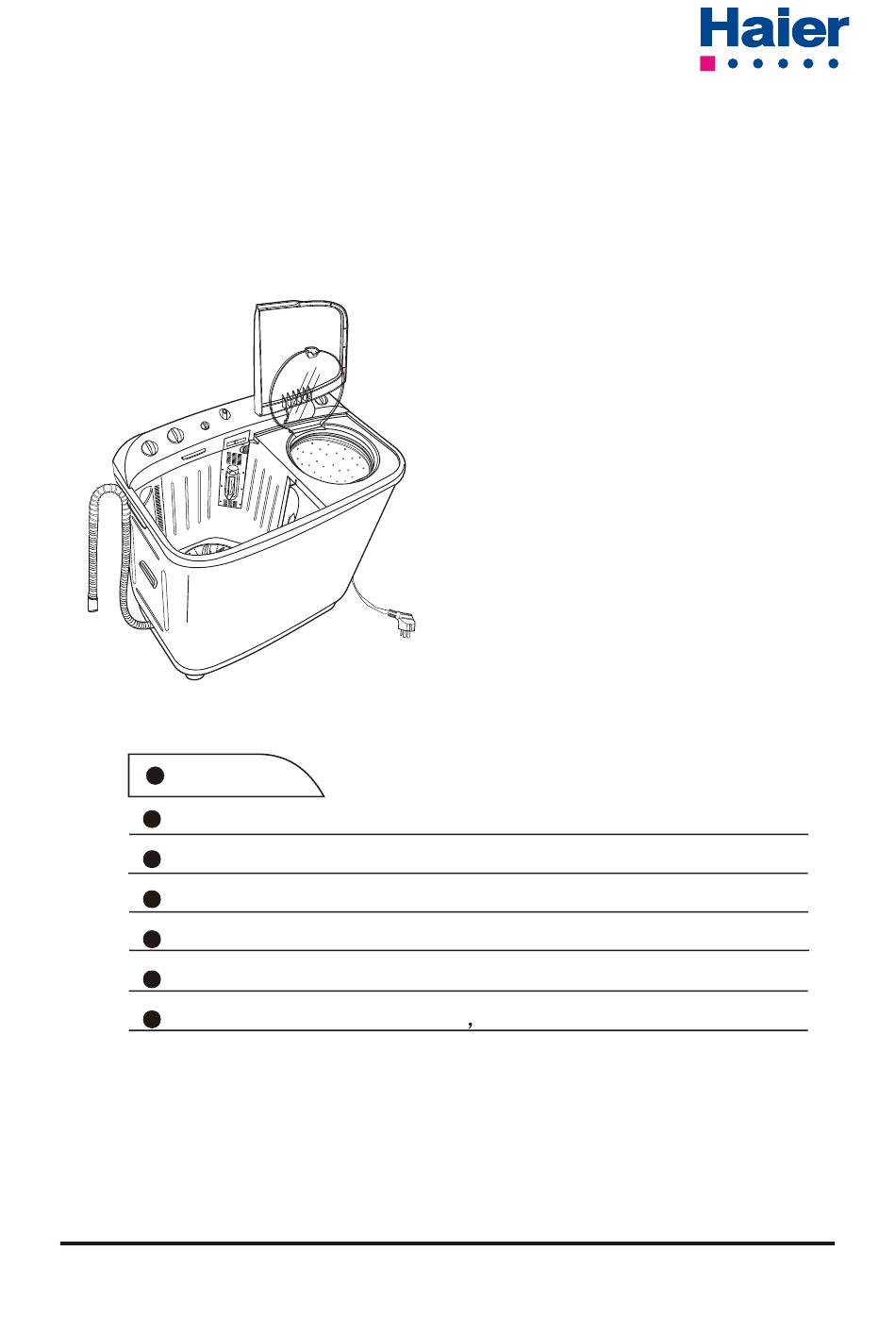

- Page 1 XPB90-99VGS Twin-tub washing machine with pump Service Manual XPB90-99VGS(MALTA) XPB90-99VS(AUSTRILIA) Features High head , unique shape Large capacity , capable of more washing Unique cascade current Separating water and electricity , wide voltage range design Enclosed base frame , mute design...
-
Page 2: Table Of Contents
CONTENTS 1.Contents Product code illumination and series introduction Features Specifications 5. Safety precautions Warning and cautions 7. Net dimension Installation and accessory parts 9. Parts and functions 10. Program list of wash timer 11. Maintenance service and trouble shooting 12. Wiring diagram 13. -
Page 3: Features
Unique cascade current Separating water and electricity , wide voltage range design Enclosed base frame , mute design Spray rinsing and spinning saving water and time With pump, drain up With caster , move easily Soak washing , more clean (XPB90-99VGS(AUSTRILIA)) -
Page 4: Specifications
SPECIFICATIONS XPB90 99VGS XPB90 99VGS Model (AUSTRILIA) (MALTA) Features for use Wash capacity Spin capacity Level/Volume 83/68/49 83/68/49 Preset Residual dampness Contral model controller Normal computerized Fuzzy computerized Frequency conversion Service features Programs Short cycle Inlet heating select Heating selection Spinning cycle (selector) Spinning cycle (variable) Start/Pause... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Be sure to use three-pins receptacle. Be sure to pull the plug off when there's Earth the earthing terminal of the power failure, or the machine is being receptacle reliably. moved, cleaned or when it is idle. Earth If the power cord is bad, to avoid risk it is required to replace it by the technicians of our special shop or the after-sale service department. -
Page 6: Warning And Cautions
WARNING AND CAUTIONS Do not stretch hands into the working Do not decompose, repair or alter the machine. It is dangerous even if the machine by yourself. rotation is slow. Take special care of the children. Do not put any hot or heavy items Do not wash laundries with volatile ( such as the kettle with hot water ) materials (such as thinner, petrol etc.). -
Page 7: Net Dimension
NET DIMENSION Unit mm INSTALLATION AND ACCESSORY PARTS Usage of the drain hose The drainage shall be smooth with the drain hose. 1 put the drain hose up to the suitable position. <1.2m 2 do not tramp or squeeze the drain hose. - Page 8 INSTALLATION AND ACCESSORY PARTS How to change the direction of the drain hoses Figure 1 indicates the ex factory installation position of the drain hose. Back Soft item Front Extend the drain hose from the side of spin tub Figure 1 Put soft items on the ground.
- Page 9 INSTALLATION AND ACCESSORY PARTS Points of Attention in After-sales Service Be sure to switch off the power during dismantling or repair. Be sure to use insulated wiring terminals and insulation box in connection of the wires, and crimp and fix to proper position with suitable tools. In welding connections with electric iron, be sure to twist the wires before welding, and insulate with insulation tapes.
- Page 10 INSTALLATION AND ACCESSORY PARTS Adjust the tension of the belt Loosen the fastening screw at the back of the base frame. Move the shift fixing gasket along the direction indicated in the figure to adjust the tension of the belt. After adjusting, fasten the screw.
-
Page 11: Parts And Functions
Cascade outer Filter frame Cabinet Lint filter Pulasor Power cord Wash tub Base frame Drain hose PROGRAM LIST OF WASH TIMER DIAGRAM LIST OF XPB90-99VGS(MALTA) strong standard 15min 2min symbol time limit S symbol time limit S a1 On a3 On... -
Page 12: Maintenance Service And Trouble Shooting
MAINTENANCE SERVICE AND TROUBLE SHOOTING Insert the power plug , but the machine does not work Wash part Open the wash timer Check if the wash timer is opened ? Switch on the power Check if the power source is available Replace the plug Check if the contact between the plug and receptacle is good... - Page 13 MAINTENANCE SERVICE AND TROUBLE SHOOTING Spin part Open the spin timer Check if the spin timer is opened ? Switch on the power Check if the power source is available Replace the plug Check if the contact between the plug and receptacle is good or receptacle Replace with new power...
- Page 14 MAINTENANCE SERVICE AND TROUBLE SHOOTING There is metal rubbing noise in braking Add the brake or If the brake arm has brake block ? replace the brake arm The washing noise is too large Replace the motor Is the motor noise large? Fasten the motor tightly Is the motor fastened tightly? Adjust the tension of the belt...
-
Page 15: Wiring Diagram
WIRING DIAGRAM There is overload protector installed in the motor. In case that the motor is overload or meets breakdown in working, the protector will act and stop the motor. When the breakdown is removed, the motor will resume normal working. Actual Circuit Diagram Drain switch Wash timer... -
Page 16: Exploded View
EXPLODED VIEW Manual Carton box... - Page 17 EXPLODED VIEW...
-
Page 18: List Of Parts
All-purpose 19 00330014038 Damping spring component All-purpose 20 00330203010 Small block All-purpose 0030502281 XPB90-99VS(AUSTRILIA) 0030502950 mannual XPB90-99VGS( MALTA) 22 0030801588 Brake panel A component All-purpose 23 00330812061 Bolt A component All-purpose 24 00330104001 Anti-deformation strip All-purpose 25 00330802095 Tapping screw... - Page 19 53 00333101031 Valve cover A All-purpose 54 00330810009 Tapping screw All-purpose 55 00330812069 Nut All-purpose 56 00330106005 Safeguard bag All-purpose 00330502020 XPB90-99VGS( MALTA) Ground wire parts 00330502530 XPB90-99VS(AUSTRILIA) 58 0030801662 Bearing seat component A All-purpose 59 0030803377 Accessories XPB90-99VGS( MALTA)
- Page 20 91 0030600001 Tapping screw All-purpose 92 00330829001 long locking band All-purpose 0030502283 XPB90-99VS(AUSTRILIA) 0030502942 Nameplate XPB90-99VGS( MALTA) 94 00333101562 Power cord hook All-purpose 95 00330802500 Tapping screw All-purpose 96 00330101854 Back cover All-purpose 97 00330802500 Tapping screw All-purpose 98 00330028011...
- Page 21 LIST OF PARTS Parts Code Parts Name Model QTY Remark 119 00330820004 Spring gasket All-purpose 120 00330812070 Bolt All-purpose 121 00330401016 Radiating pulley All-purpose 50Hz 122 00330011021 V-belt All-purpose *50Hz 123 00330812071 Screw All-purpose 124 0034000189 Spin motor All-purpose *240V~50Hz 125 00333101008 Motor insulation seat All-purpose 126 00330802017 Tapping screw...
- Page 22 Sincere Forever Haier Group Tel: 86-532-8938356 Web site: http: //www.haier.com...
