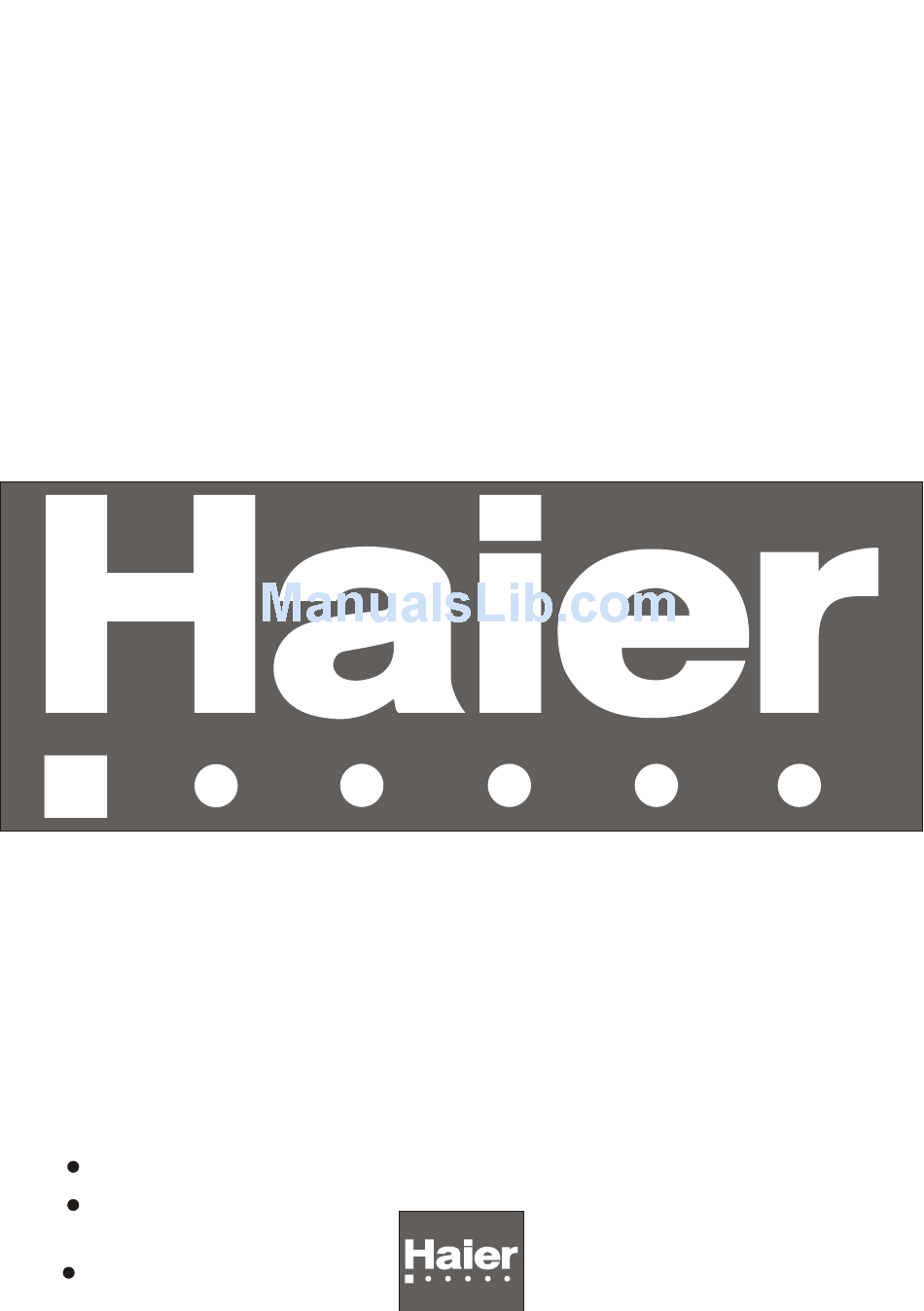

- Page 1 Twin-tub Washing Machine User's manual This manual is for HWM90-23BS Special number: 0030502925 Please read this manual carefully before using. Retain it for future reference.
-
Page 2: Table Of Contents
Contents Names of the parts Safety precautions Installation and adjustment Installation of the major function Preparation before washing The musts in washing Usage of the detergent Washing sequence Disposal after washing Trouble-Shooting Answer to question Packing list *Specification... -
Page 3: Names Of The Parts
Names of the parts Spin timer Wash selector Wash timer Water-filling entrance cover Water-filling entrance Water-filling entrance Water inlet selector handle Control panel Cascade outlet Filter frame Wash tub cover Meaning and description of the symbols Warning sign Forbidding sign Please check if the power receptacle has good earthing condition before using to guarantee your safety. -
Page 4: Safety Precautions
Safety precautions Please insert the power cord into special receptacle with rated vol- tage.Be sure to use single-phase three pins receptacle.The earthing terminal of the receptacle must be earthed reliably.If possible,please adopt electric leakage protector. If the power cord is bad, to avoid risk it is required to replace it by the technicians ofour special shop or the after-sale service department. - Page 5 Safety precautions Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children. Do not put any hot or heavy items ( such as the kettle with hot water ) on the washing machine.
-
Page 6: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. Usage of the drain hose The drainage shall be smooth with the drain hose. 1.The height of the drain hose shall be less than 10cm , or the drainage will not be smooth enough and cause... -
Page 7: How To Change The Direction Of The Drain Hoses
How to change the direction of the drain hoses Figure 1 indicates the ex factory installation position of the drain hose. Extend the drain hose from the side of spin tub Put soft items on the ground. Lean the machine down gently with the front surface facing the ground. - Page 8 In order to give you a quiet and comfortable washing,enclosed base frame and lower -noise motor have been designed to reduce the noise.With Haier machine, we believe that it is the right choice for your everyday.
-
Page 9: Preparation Before Washing
Preparation before washing Pay attention to followings before washing the laundries Check if Clear the the laundries pocket. Take has special out the coins, requirement sand, hairpins on washing etc. a. Check if the laundries are applicable for washing with machine. b. -
Page 10: The Musts In Washing
The musts in washing Usage of the detergent How to use the whitener Fill water to decided level. Dilute the whitener with container. Pour it slowly into thewashing tub. Avoid using whitener on laun- dries with color or pattern as they are prone to lose color. -
Page 11: Washing Sequence
Washing sequence Wash timer Water inlet (To set to below 2 minute, entrance first set to 5 minute then turn it back. It can increase the service life of the timer). Wash 1.Water-filling selector Set the water inlet selector at the "WASH" side. (Figure 1) 2. - Page 12 Midway spinning Put the laundries into the spin tub evenly and smoothly. Spin (1) Put the gland in properly. Please put in the gland properly even if the laundries quantity is small. Push Proper (2) Close the inner and outer cover of the spin tub. (3) Spin for 1-2 minutes.
- Page 13 Rinsing Rinse with stored water 1. Put the laundries into the wash tub. Select suitable current according to the laundries. 2. Fill water to preset water level. 3. Rinse Adjust the wash timer to 2-3 minutes to do rinsing. When the laundries quantity is below 4.0 kg, please use "Standard" current. If you use "Strong"...
- Page 14 Spinning 1. Put the laundries into the spin tub evenly and smoothly. 2. Press the gland in the tub properly. Close the inner and outer cover of the spin tub. 3. Spin Select suitable spin time according to the laundries, and do spinning. During spinning, if there's abnormal sound, it is generally owing to slanting placement of the laundries.
-
Page 15: Disposal After Washing
Disposal after washing After using, please clean the lint and foreign materials of the lint filter and lint frame in time. Otherwise it may influence your using the machine. Please first pull off the power plug from the receptacle before cleaning. Cleaning the lint filter The lint filter must be used during washing. - Page 16 Cleaning the filter frame 2. Cleaning the filter frame Clean the lint around the frame and flush with tap water. 3. Install the filter frame. (1).Insert the mounting plate at the bottom of the frame into the valve cover. (2).Hang up the hook at the left upper side.
-
Page 17: Trouble-Shooting Answer To Question
Trouble-shooting Answer to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company. -
Page 18: Packing List
Packing list Name User's manual Water inlet hose Lint filter Gland Twin-tub washing machine Specification Water level/Water quantity (about) Injection pressure(MPa) Quantity One piece One piece One piece One piece One set Maximum/79L Medium/66L Minimum/48L 0.02 0.2...
