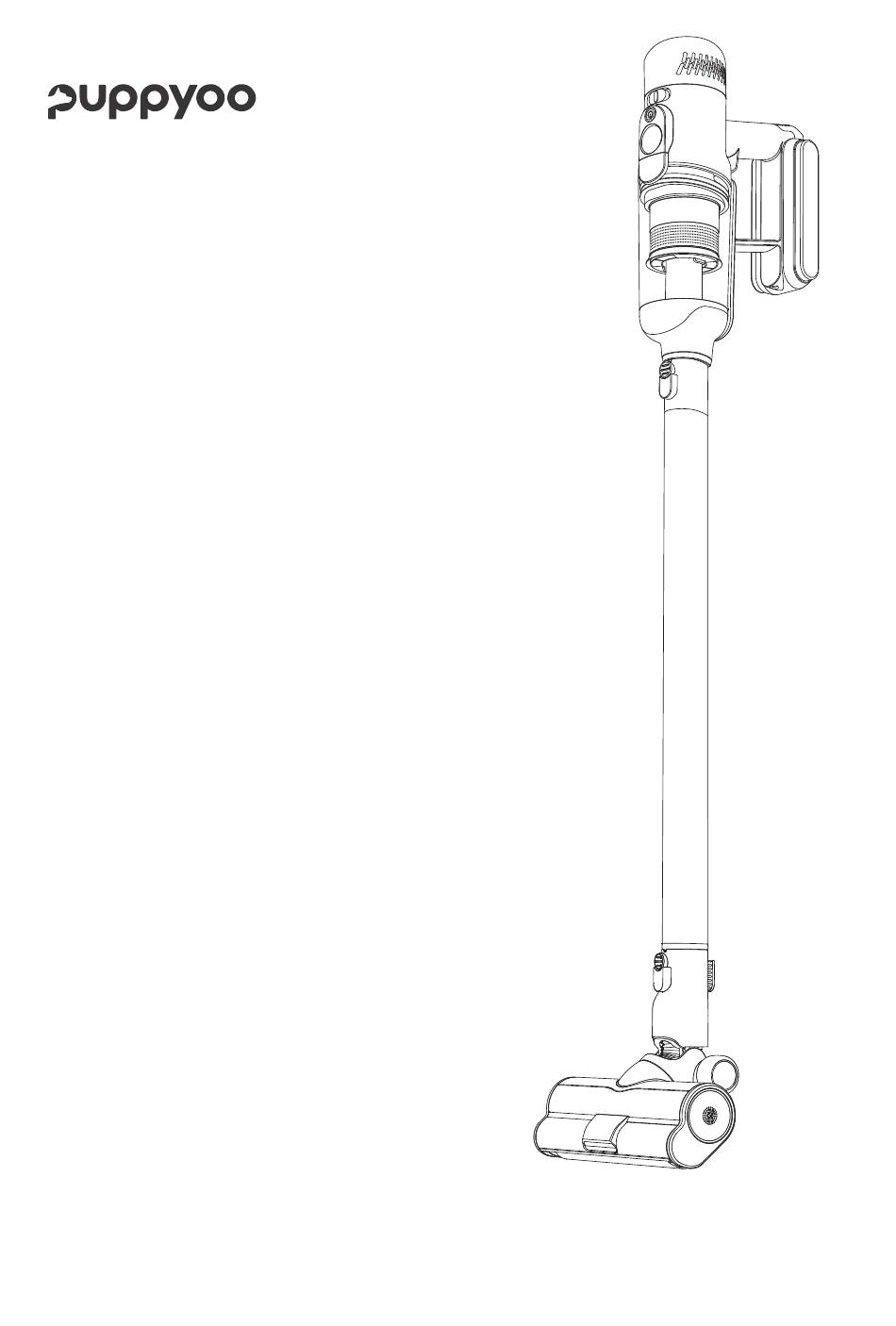

T12
Series
Operating Manual
The operation manual is a general user guideline for the T12 series. T12 series includes T12
Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, T12 Pure, etc. The brush configuration varies with
each model. For the specific configuration for the model you purchased, the packing list shall
prevail.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T12 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PUPPYOO T12 Series

Summary of Contents for PUPPYOO T12 Series

  • Page 1 Series Operating Manual The operation manual is a general user guideline for the T12 series. T12 series includes T12 Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, T12 Pure, etc. The brush configuration varies with each model. For the specific configuration for the model you purchased, the packing list shall...

  • Page 3: Table Of Contents

    Contents: I. Safety Instructions II. Product Introduction and Operation Instructions 1. Vacuum Main Body 2. Accessories 2.1-2.12 Detailed Configuration Instructions 2.13 Wall Mount 2.14 Wall Bracket 3. Operation Instructions 3.1 Power-on/off 3.2 Mode Switching 3.3 Operation Instructions for Main Brush 3.4 Operation Instructions for Spin Mopping Brush 3.5 Operation Instructions for Other Brushes III.

  • Page 4: Safety Instructions

    I. Safety Instructions WARNING ：For the purposes of recharging the battery, only use the detachable supply unit ZD024M350100EU provided with this appliance. Before using the product, please read the following safety instructions and follow all conven- tional safety protection measures. Any operation not in conformity with the manual may cause damage to the product.

  • Page 5: Product Introduction And Operation Instructions

    II. Product Introduction and Operation Instructions 1. Vacuum Main Body The operation manual is a general user guideline for Puppyoo T12 series, not for a specific product. T12 series includes T12 Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, etc. The brush configuration varies with each model.
  • Page 6 fire or heat source (such as heating radiator, etc.), thus avoiding accidents. Charging Jack Please use the packaged power adapter to charge Puppyoo T12. Dust Bin Vertically install the dust bin. A pair of magnets is arranged inside for quick installation. (Refer 3-1 for...

  • Page 7: Accessories

    2. Accessories The operation manual is a user guideline for Puppyoo T12 series, not for a specific product. T12 series includes many products, such as T12 Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, etc. The brush configuration varies with each model. For the specific configuration for the model you purchased, the packing list shall prevail.
  • Page 8 2.7 2-in-1 Square Brush Press the middle button of the brush to retract the brush bristles. The 2-in-1 Square Brush can be connected to the vacuum directly, and with the metal extension tube for extended reach. The Brush is suitable for cleaning tabletops, desktops and other open areas;...

  • Page 9: Wall Mount

    2.13 Wall Mount The Wall Mount is used for storing and charging, even with metal extension tube and the mopping brush connected. The lower interface of the wall mount can be connected to the crevice nozzle and the soft feather brush. To charge the vacuum, connect the power adapter to the Wall Mount, and then hang the machine according to the placement position.

  • Page 10: Wall Bracket

    2.14 Wall Bracket The Wall Bracket is used for storing the product after assembling (with the metal extension tube or the mopping brush). How to Install: 1. Install the wall bracket to the back of the battery cabin. (Figure 1) 2.

  • Page 11: Operation Instructions

    3. Operation Instructions There are two versions for Puppyoo T12 series: OLED Display and LED indicator. For the specific product and accessories configuration, the packing list shall prevail. 3.1 Power-on/off Power-on: the power button of the product is at the top of the vacuum. Press the button for 1 second, and the product will start working.

  • Page 12: Operation Instructions For Main Brush

    3.3 Operation Instructions for Main Brushes 1. Installation of brush Connect the metal extension tube to the vacuum, connect one end of the brush button to the clipping part at the other end of the metal extension tube, ensure tight installation and hear a click to complete installation.

  • Page 13: Operation Instructions For Spin Mopping Brush

    Precautions for Brush Use: 1. In case of brush blockage, please clean it immediately. 2. When disassembling, do not put fingers into the bottom of the mopping brush to avoid getting pinched. 3. No matter what mode the vacuum operates in, the spin mopping brush rotates at the same speed.

  • Page 14: Operation Instructions For Other Brushes

    3.5 Operation Instructions for Other Brushes Best Used For Brush Name cleaning of narrow space, gap, window groove, drawer, wall Lighted Crevice Nozzle corner and other narrow and dark areas. Surface cleaning of beddings, bed sheets, sofa, vehicle seats Motorized Mattress Brush and other fabrics.

  • Page 15: Cleaning And Maintenance Instructions

    III. Cleaning and Maintenance Instructions 1. Cleaning and Maintenance of Vacuum 1.1 Cleaning of Dust Bin 1. Hold by hand, pull up and remove the 4. The filter component is composed of a cyclone filter and a HEPA air inlet filter. The HEPA air inlet whole dust bin.

  • Page 16: Charging Maintenance And Instructions

    1.2 Charging Maintenance and Instructions Tips: 1. The product is not fully charged before delivery in order to ensure transportation safety. When you receive the product, it is recommended that the product should be charged for 4 hours before normal use. 2.

  • Page 17: Cleaning And Maintenance Instructions For Brushes

    2. Cleaning and Maintenance Instructions for Brushes The operation manual is a general user guideline for T12 series. T12 series includes many products, such as T12 Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, etc. The brush configura- tion varies with each model. For the specific configuration for the model you purchased, the packing list shall prevail.

  • Page 18: Cleaning And Maintenance Of Soft Roller Brush

    3. There is a circuit in the cavity of the motorized double roller brush. Do not wash it. Instead, wipe it gently with a rag. 2.2 Cleaning and Maintenance of Soft Roller Brush Suggestions: clean the soft roller brush after it is used for dust collection for 4-5 times. 1.

  • Page 19: Cleaning And Maintenance Of Spin Mopping Brush

    2.3 Cleaning and Maintenance of Spin Mopping Brush 1. The connection between the spin mopping brush and the cleaning cloth is in the form of magic tape. When the mop cloth is dirty, it can be removed directly from the spinning disc, wash them with water and dry them.

  • Page 20: Cleaning And Maintenance Of Motorized Mattress Brush

    2.4 Cleaning and Maintenance of Motorized Mattress Brush 1. Pull the unlocking button along the arrow direction, and rotate the side cover of the mite control brush. 2. Pull out the roller brush from the brush body (note: part of dust will fly when it is pulled out); 3.

  • Page 21: Common Problems, Solutions And Instructions

    IV. Common Problems, Solutions and Instructions The operation manual is a general user guideline for Puppyoo T12 series, not for a specific product. T12 series includes T12 Plus Rinse, T12 Storm Rinse, T12 Pro Rinse, etc. The brush configuration varies with each model. For the specific configuration for the model you purchased, the packing list shall prevail.

  • Page 22: Rohs Checklist

    V. RoHS Checklist Hazardous and Noxious Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) Name (PBB) (PBDE) (CrVI) Plastic Motor Circuit board Cable Metal part battery The table is prepared according to SJ/T 11364. Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in 2011/65/EU, 2015/863/EU.
  • Page 24 Beijing Puppy Vacuum Cleaner Group Co., Ltd. Address: 7-605, 6th floor, No. 1 Building, No. 8 Courtyard, Guanghua Road, Chaoyang District, Beijing,China. TEL.: 86-10-5741 7619 Email: puppyoo@moomv.com Zip Code: 100101 Made in China...
