acaia Orion Mini Bean Doser User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Acaia Orion Mini
User Manual
V 3.00.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Mini Bean Doser and is the answer not in the manual?

Questions and answers

Related Manuals for acaia Orion Mini Bean Doser

Summary of Contents for acaia Orion Mini Bean Doser

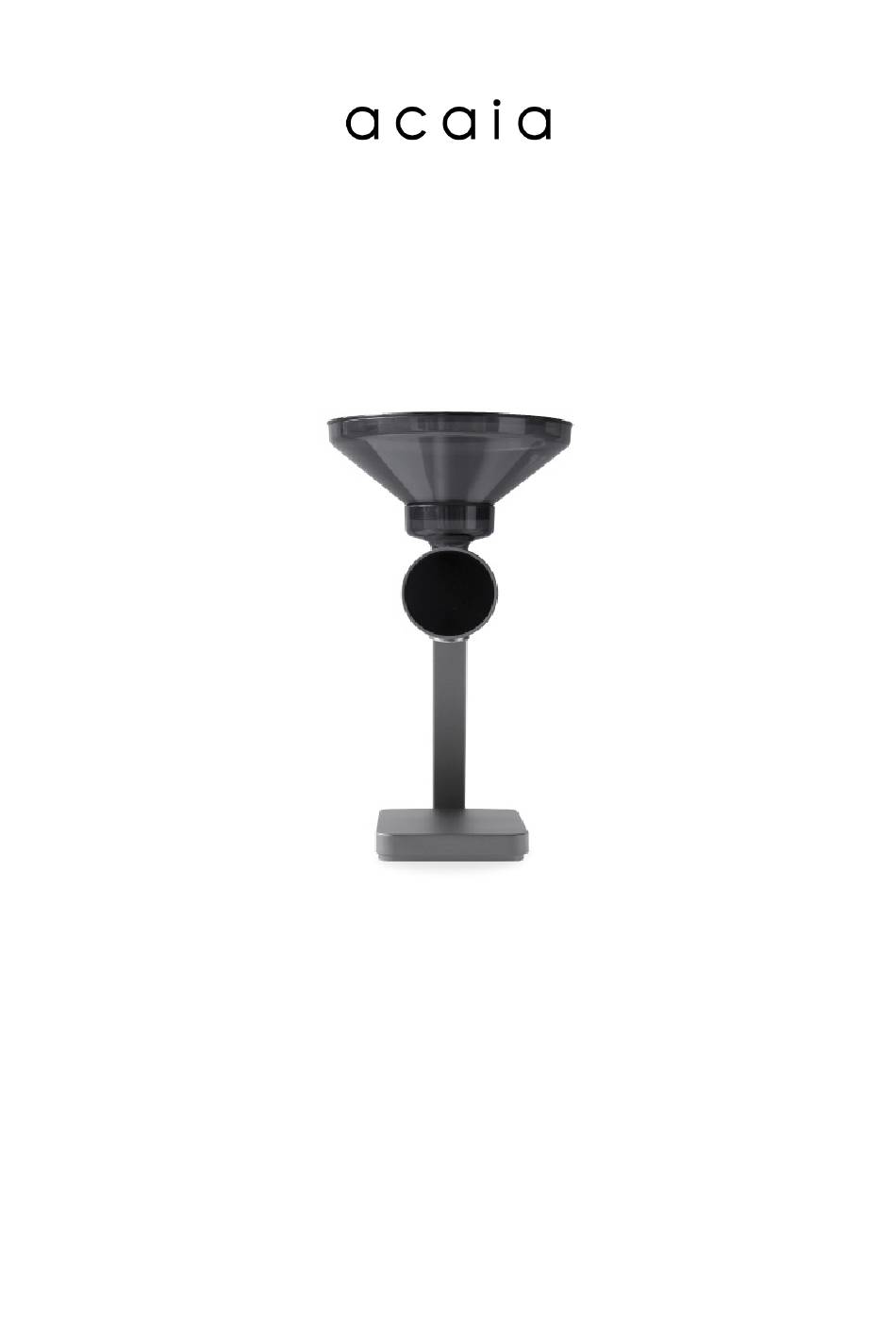

  • Page 1 Acaia Orion Mini User Manual V 3.00.01...

  • Page 2: Table Of Contents

    Contents Introduction Features Interface Overview Getting Started Initial Setup Getting Started General Operation Product Care Information Battery charge Calibration Operations Basic Operations Set Preset Weight Switch Mode Empty Hopper Mode Introduction Mode 1 - Manual Dosing Mode Mode 2 - Auto Dosing Mode Mode 3 - Weighing Mode Settings Accessing the Orion’s Settings...

  • Page 3: Introduction

    The Orion Mini Bean Doser™ is designed for dosing green beans or roasted coffee beans based on weight. Fast Weight-Based On-Demand Dosing The Orion Mini Bean Doser™ can dose 225 grams (1/2 lbs) in 12 seconds and 20 grams in 3 sec- onds within the error margin of 2-3 beans. Full Automatic Mode Designed with a fully automatic mode for continuous dosing of multiple containers without pressing any buttons.

  • Page 4: Getting Started

    Getting Started Initial Setup 1. Prior to using your Orion Mini for the first time you should rinse and clean the bean hopper in warm soapy water. Dry immediately after cleaning. 2. Attach the bean hopper on top. 3. Place a container on the weighing platform to avoid accidental dispensing. 4.

  • Page 5: Product Care Information

    * Note: Calibration weights of 100 g, 1000 g, 1500 g, 2000 g, and 3000 g can also be used. For highest accuracy use Acaia calibration weights or F1 or F2 Class calibration weights. Inexpensive lower-class calibration weights have a higher deviation from a true accurate weight.

  • Page 6: Operations

    Operations Basic Operations Action Operation Turn On Scale Short press Power Double press Power Turn Off Scale Toggle Presets Rotate Dial Set Preset Weight Short press Power, rotate Dial, then short press Power / Dose Switch Mode Long press Power, rotate Dial, then short press Power / Dose Short press Dose Start Dosing Reset Mode...

  • Page 7: Mode Introduction

    Mode Introduction Mode 1 - Manual Dosing Mode This is the default mode for dosing. Action Operation Short press Dose Start Dosing Stop Dosing Short press Dose Pulse Beans Short press Dose Reset Mode Short press Power 1. Select a preset by rotating the Dial. Adjust the preset value by short pressing Power and rotating the Dial.

  • Page 8: Mode 2 - Auto Dosing Mode

    Mode 2 - Auto Dosing Mode Auto dosing mode can dose automatically whenever a container is placed on the platform. There will be an ‘A’ indicator on the top left corner of the display when in Auto mode. At the end of auto dosing, you may short press the Dose button to ‘pulse’ a few more coffee beans if required.

  • Page 9: Mode 3 - Weighing Mode

    Mode 3 - Weighing Mode The weighing mode is the Orion Mini’s smart scale mode. It will function like an industrial weighing scale with a 3000-gram capacity. To switch to weighing mode, rotate the Dial until a ‘W’ indicator appears on the top left corner of the display. Action Operation Reset Mode/Zero...

  • Page 10: Settings

    Settings Accessing the Orion’s Settings 1. With Orion Mini powered on, long press Power to enter the Settings mode. The display will show [ SEt ]. 2. Press Dose to enter the Settings Menu. It will show the first setting for [ SPEEd ]. Action Operation Long press Power...
  • Page 11 Zero Tracking is a function to help compensate the weight readout fluctuations at zero point to improve the usability of the scale. The Acaia Orion Mini is allowed to compensate fluctuations by up to 2d according to industrial weighing guidelines.

  • Page 12: Appendix

    You may want to add some beans with the pulse function or remove some. Red Light - System message indicator When the red light is displayed, there is a system error with the Orion Mini. Restart the Orion Mini. If the problem persists, please contact us at support@acaia.co.

  • Page 13: Error Codes

    Error Codes Error Code Description Error 100 Code error Error 101 EEPROM error AD read error Error 102 Unable to make zero point because the initial weight exceeds the limit (250% Error 303 of capacity). Over load: The weight is over the maximum capacity. Under load: The weight is under the minimum capacity.

  • Page 14: Specifications

    Battery Life Display Aluminum, Acrylic Material Bluetooth 4.0 Connectivity 1 Year Warranty Acaia Orion Mini Bean Doser (Space Gray / Matte White) x 1 Hopper with capacity for 350~400 g of beans x 1 Inside the Package Power Adapter x 1...
  • Page 15 This User Manual is protected by copyright. All rights reserved. No part of the manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other meth- od, in particular electronic means, without the written agreement of Acaia. © Acaia, California, 2020.
