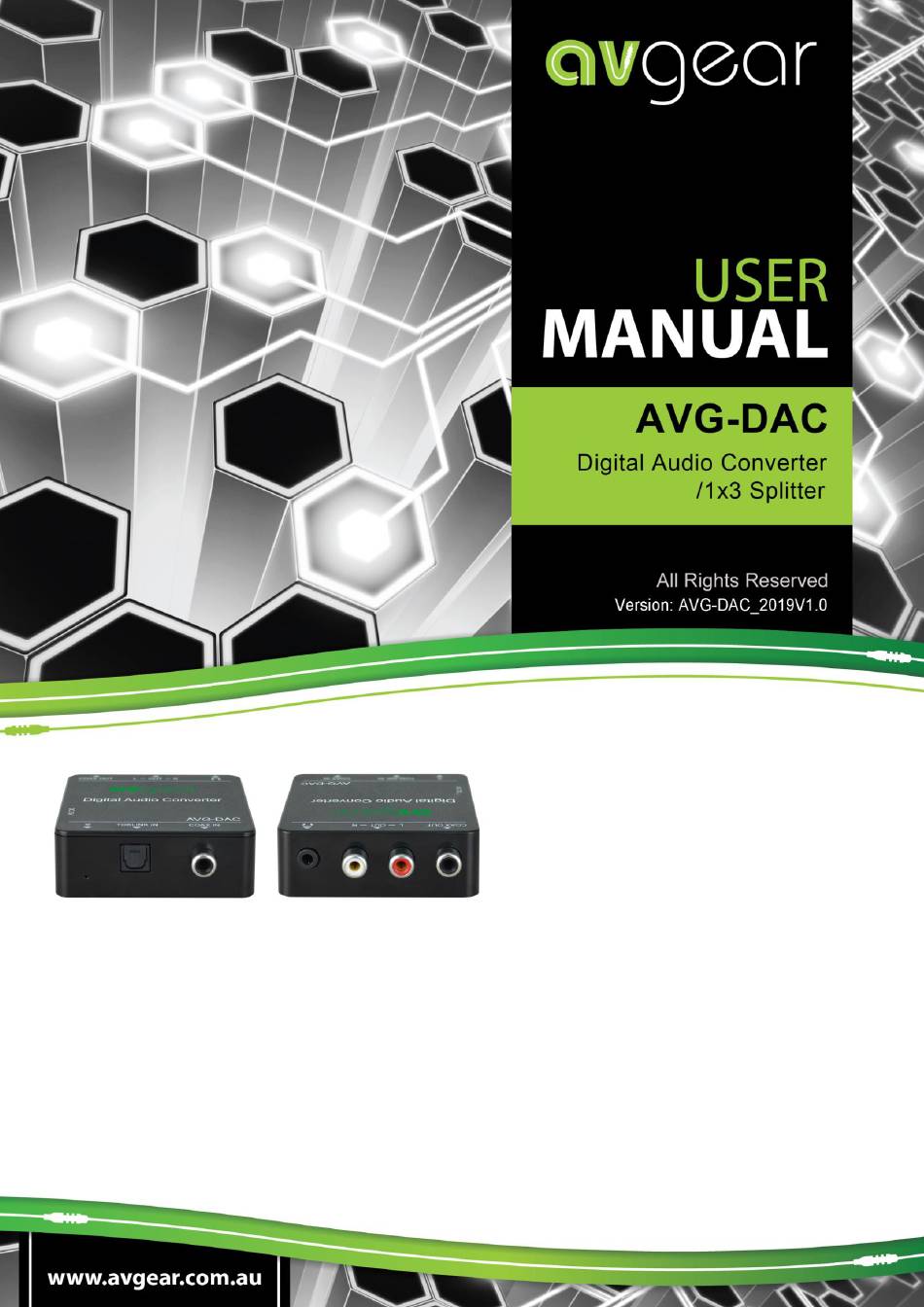

AVGear AVG-DAC User Manual

Digital audio converter /1x3 splitter
Hide thumbs Also See for AVG-DAC:
Table of Contents

Advertisement

Quick Links

Download this manual
AVG-DAC
The AVG-DAC Digital Audio Converter is designed to
convert coaxial or Toslink digital audio input into
analog L/R and 3.5mm audio output. Simultaneously,
the converter provides COAX SPDIF output for digital
audio extension.
Features
Features audio distribution splitting
▪
one audio source into three audio
outputs.
Converts coaxial or Toslink digital
▪
audio input to analog L/R and 3.5mm
audio output.
COAX SPDIF output for digital audio
▪
extension.
Supports up to 24-bit/192 KHz input
▪
(PCM, Dolby Digital or DTS formats
for digital audio extension only).
Provides Micro-USB port for power
▪
connection.
Easy to install and simple to operate.
▪
Compatible with coaxial or Toslink
▪
interface digital audio devices:
CD/DVD, PS3, X-Box360, Blue-ray
player, Computer, A/V receiver, etc.
Ideal for interfacing between modern
▪
digital audio/video devices with
analog amplifiers or powered
speakers.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-DAC and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-DAC

Summary of Contents for AVGear AVG-DAC

  • Page 1 Supports up to 24-bit/192 KHz input ▪ (PCM, Dolby Digital or DTS formats The AVG-DAC Digital Audio Converter is designed to for digital audio extension only). convert coaxial or Toslink digital audio input into Provides Micro-USB port for power ▪...
  • Page 2 AVG-DAC PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, it is not to be used in a maintenance capacity. The functions described in this version are current as of March, 2019. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-DAC SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    AVG-DAC TABLE OF CONTENTS Introduction ......................1 Brief Introduction ..................1.1 Features ...................... 1.2 What’s in the Box ..................1.3 Panel Description ..................... 2 System Connection ....................3 Usage Precautions ..................3.1 System Diagram ................... 3.2 Specifications ......................4...

  • Page 5: Introduction

    AVG-DAC 1. Introduction 1.1 Brief Introduction The AVG-DAC Digital Audio Converter is designed to convert coaxial or Toslink digital audio input into analog L/R and 3.5mm audio output. Simultaneously, the converter provides COAX SPDIF output for digital audio extension. 1.2 Features ▪...

  • Page 6: What's In The Box

    AVG-DAC 1.3 What’s in the Box ▪ 1x AVG-DAC Digital Audio Converter ▪ 1x Power Adapter (5V DC 1A) ▪ 1x Power Cord (USB-A to Micro-USB) ▪ 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the...

  • Page 7: Panel Description

    AVG-DAC 2. Panel Description DC 5V COAX OUT TOSLINK IN COAX IN ① Power LED: The LED illuminates blue when power is applied. ② TOSLINK IN: Toslink audio input. ③ COAX IN: Coaxial audio input. ④ 3.5mm stereo audio output.

  • Page 8: System Connection

    ▪ All the HDMI and control devices should be connected before powering on. 3.2 System Diagram The following diagram illustrates a typical input and output connection that could be used with the AVG-DAC. Headset Game Console Blu-Ray Speaker...

  • Page 9: Specifications

    AVG-DAC 4. Specifications Audio Input Audio Input (1) TOSLINK IN, (1) COAX IN LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH (Only Audio Format PCM supports format conversion) Sample Rate 32, 44.1, 48, 96, 192KHz, up to 24bit Analog Audio Output Audio Output (1) 3.5mm stereo audio, (1) L-OUT-R (RCA)
  • Page 10 AVG-DAC < 0.3dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) Noise Level -90dB General Operation Temperature -5~ +55℃ Storage Temperature -25 ~ +70℃ Relative Humidity 10%-90% Power Supply Input:100V~240V AC; Output: 5V DC 1A Power Consumption 1.3W (Max)
