SeeEyes SC-IPH3002 User Manual

2 port ethernet extender with poe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Release Version 1.0
2 Port Ethernet Extender with PoE
SC-IPH3002
User's Manual
SC-IPH3002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-IPH3002 and is the answer not in the manual?

Questions and answers

Related Manuals for SeeEyes SC-IPH3002

Summary of Contents for SeeEyes SC-IPH3002

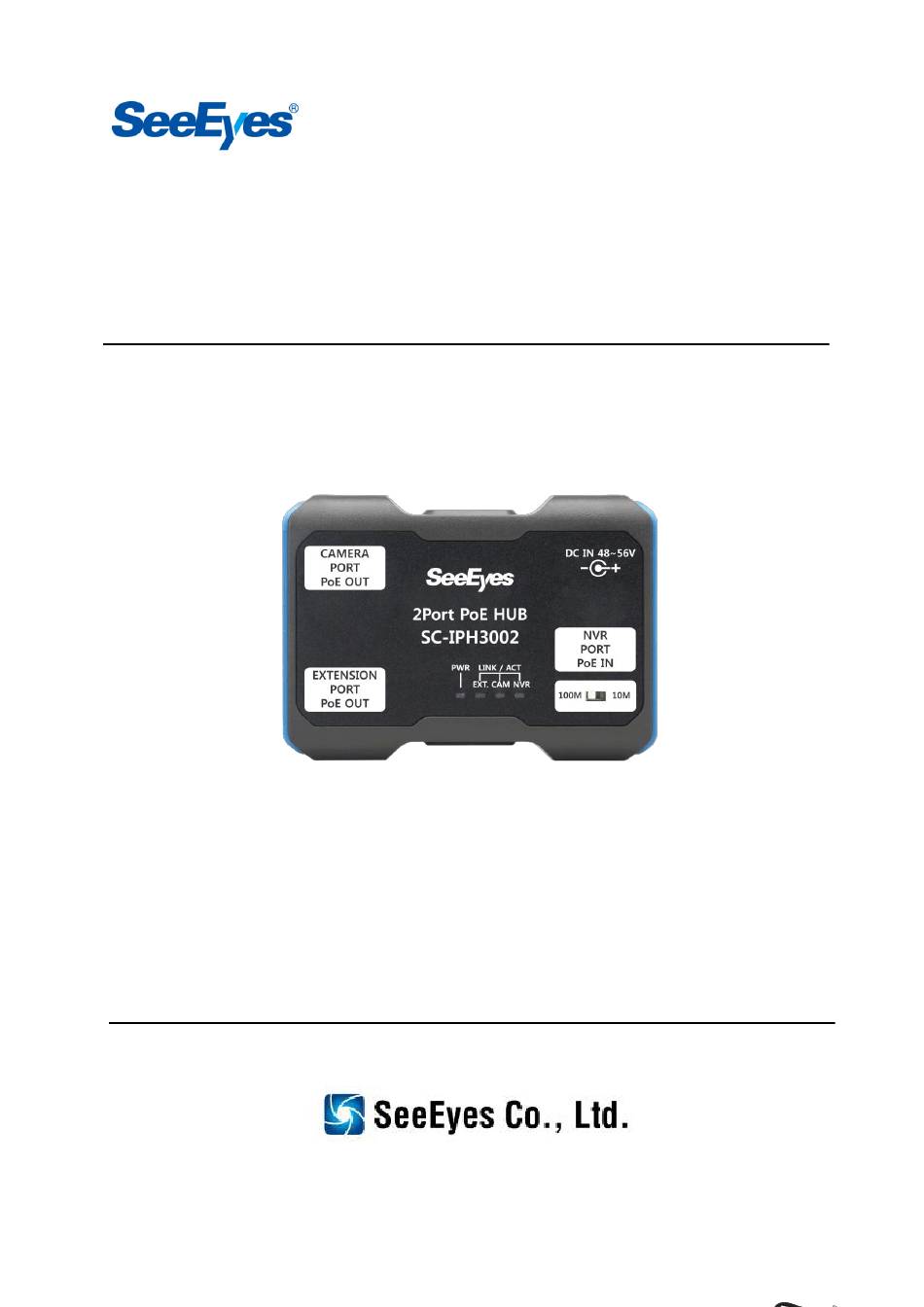

  • Page 1 Release Version 1.0 2 Port Ethernet Extender with PoE SC-IPH3002 User’s Manual SC-IPH3002...
  • Page 2 Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Please be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
  • Page 3 Release Version 1.0 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss. ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration.
  • Page 4 This product can easily expand LAN cable in existing Ethernet environment where existing IP camera is installed. SC-IPH3002 is composed of 2 PoE output port, 1 PoE input port and DC adapter jack. This product enables power supply to camera with its built-in PoE(Power Over Ethernet) function, which eliminated the need of installing separate power cable.
  • Page 5 Data Input ※ Caution • To use SC-IPH3002 as a Switch Hub, connect external power. • If a cable connected to EXTENSION PORT and NVR PORT are crossed, the power may not be supplied and the image may not be output.
  • Page 6 Release Version 1.0 4. CABLE PIN Configuration (TIA / EIA 568B Way) Color Color Function Orange + White White Orange Orange Orange Green + White White Green Blue PWR+ Blue Blue + White PWR+ White Blue Green Green Brown + White White Brown PWR-...

  • Page 7: Connection Diagrams

    ※ Bandwidth Switch 100Mbps Setting: Transmit Max. 100m (CAT.5e) ※ Bandwidth Switch 10Mbps Setting: Transmit Max. 250m (CAT.5e) 5-3. Multiple Connection with over 2 pcs of SC-IPH3002 ※ Bandwidth Switch 100Mbps Setting: Transmit Max. 100m (CAT.5e) ※ Additional power supply may be required depending on camera power consumption.
  • Page 8 Release Version 1.0 5-4. Multiple Connection with 2 pcs of SC-IPH3002 in 10Mbps ※ Set the Bandwidth switch to 10M before use. ※ If the bandwidth exceeds 10Mbps after setting the Bandwidth switch to 10M, there may be a problem with the video. Please be careful with the bandwidth when using the switch.
  • Page 9 ② When installing more than 2 pcs of SC-IPH3002 in multiple connection, if there is not enough power to drive PoE camera, connect an additional DC adapter to the SC-IPH3002 connected to the camera with insufficient power.

  • Page 10: Troubleshooting Method

    Release Version 1.0 6. Trouble Shooting Method Condition Check Method • Check the power cable connection state. • Check if the exclusive adapter is used. Power is not • Check the PoE switch hub connection state. supplied. • Check the CABLE PIN configuration state. •...

  • Page 11: Specifications

    Release Version 1.0 7. Specifications Model No. SC-IPH3002 DC Power DC 48V or DC 56V Adapter Power PoE Power PoE IEEE 802.3af / 802.3at, Endspan / Midspan (Mode A / Mode B) Input Feature DC Adapter power supply priority (Between DC Adapter and PoE) EXTENSION PORT Max 30W, Standard PoE, IEEE802.3 af/at Mode A...

  • Page 12: Warranty Certificate

    Release Version 1.0 8. Warranty Certificate Product No. Model No. Date of Purchase Place of Purchase Name Purchaser Address & Contact No. Name Distributor Address & Contact No. Warranty Period Two(2) years from the date of purchase Any failure that occurs in the normal use for only two years after purchase will be repaired free of charge.
  • Page 13 Release Version 1.0 [MEMO]...
  • Page 14 Release Version 1.0 [MEMO]...
  • Page 15 Release Version 1.0 [MEMO]...
  • Page 16 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
