SeeEyes SC-IPE3001 User Manual

Ip poe extender
Hide thumbs

Advertisement

Quick Links

Download this manual

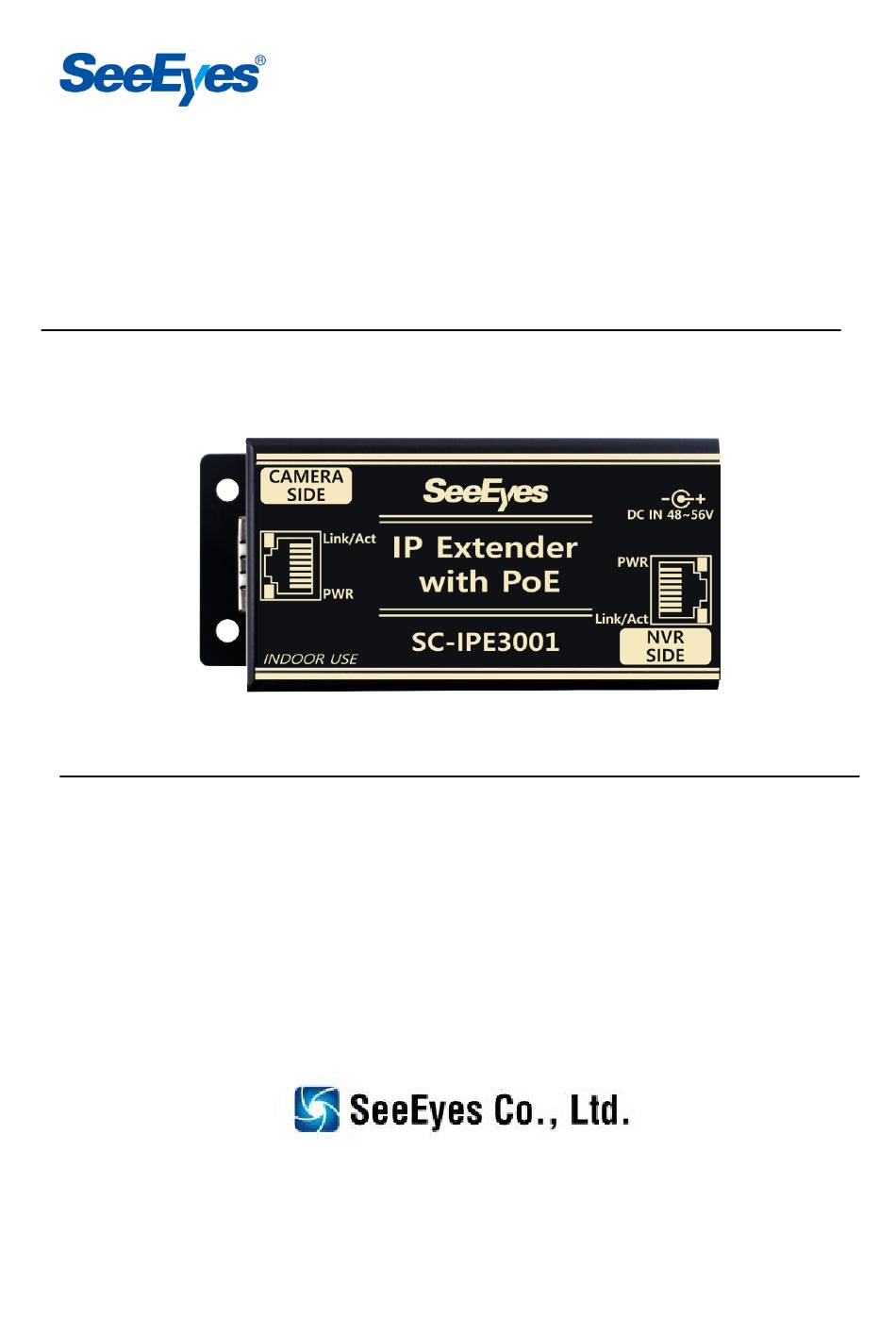

Release Version 1.0
IP PoE Extender
SC-IPE3001
User's Manual
SC-IPE3001

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC-IPE3001 and is the answer not in the manual?

Questions and answers

Related Manuals for SeeEyes SC-IPE3001

Summary of Contents for SeeEyes SC-IPE3001

  • Page 1 Release Version 1.0 IP PoE Extender SC-IPE3001 User’s Manual SC-IPE3001...
  • Page 2 Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Please be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
  • Page 3 Release Version 1.0 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration.
  • Page 4 • Transmit power + IP data over 1 UTP Cable(CAT.5e). • TCP Rate : 100Mbps Full Duplex • Extend Ethernet Data transmission up to 100~250m by adding 1 pc of SC-IPE3001. (Add/extend the product after checking the rated capacity of IP camera you use.) •...
  • Page 5 Release Version 1.0 3. Product Parts & Functions ③ ① ② ④ ① CAMERA SIDE : IP PoE camera connection port.. Port to supply PoE and receive data from camera. LED Indicator Successful Power Input Yellow No Power Input Connected to Camera Green Blinking Successful Data Transmission...

  • Page 6: Connection Diagrams

    4-2. Basic Connection with Receiving Power from PoE Switching HUB ※ Bandwidth Switch 100Mbps Setting : Transmit Max. 100m (CAT.5e) ※ Bandwidth Switch 10Mbps Setting : Transmit Max. 250m (CAT.5e) 4-3. Multiple Connection with 2 pcs of SC-IPE3001 in 100Mbps...
  • Page 7 Power Input Connection Quantity 100Mbps/100m DC 48V DC 56V When using SC-IPE3001 as a PoE Injector, Max. power output is 35W (using DC 48V Adaptor). ※ Max. Power Output in SC-IPE3001 100Mbps Setting (Using PoE) SC-IPE3001 SC-IPE3001 Max. Power Output...
  • Page 8 ※ It is not recommended to use 100Mbps and 10Mbps simultaneously when connecting more than 2 SC-IPE3001. (In this case, the communication speed of 2 SC-IPE3001 is set to 10Mbps.) ※ When connecting a camera with large power consumption or inrush current, please use a 56V adapter or apply PoE+ to the product.

  • Page 9: Troubleshooting

    Release Version 1.0 6. Troubleshooting Symptom Identification Method • Check the power cable connection state. • Check if the exclusive adapter is used. No Power • Check the PoE switch hub connection state. • Check the CABLE PIN configuration state. •...

  • Page 10: Specifications

    Release Version 1.0 7. Specifications Model No. SC-IPE3001 DC 48V or DC 56V Adapter Power PoE IEEE 802.3af / 802.3at, Endspan / Midspan (Mode A / Mode B) Input Feature DC Adapter power supply priority (Between DC Adapter and PoE)

  • Page 11: Warranty Certificate

    Release Version 1.0 8. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name...
  • Page 12 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
